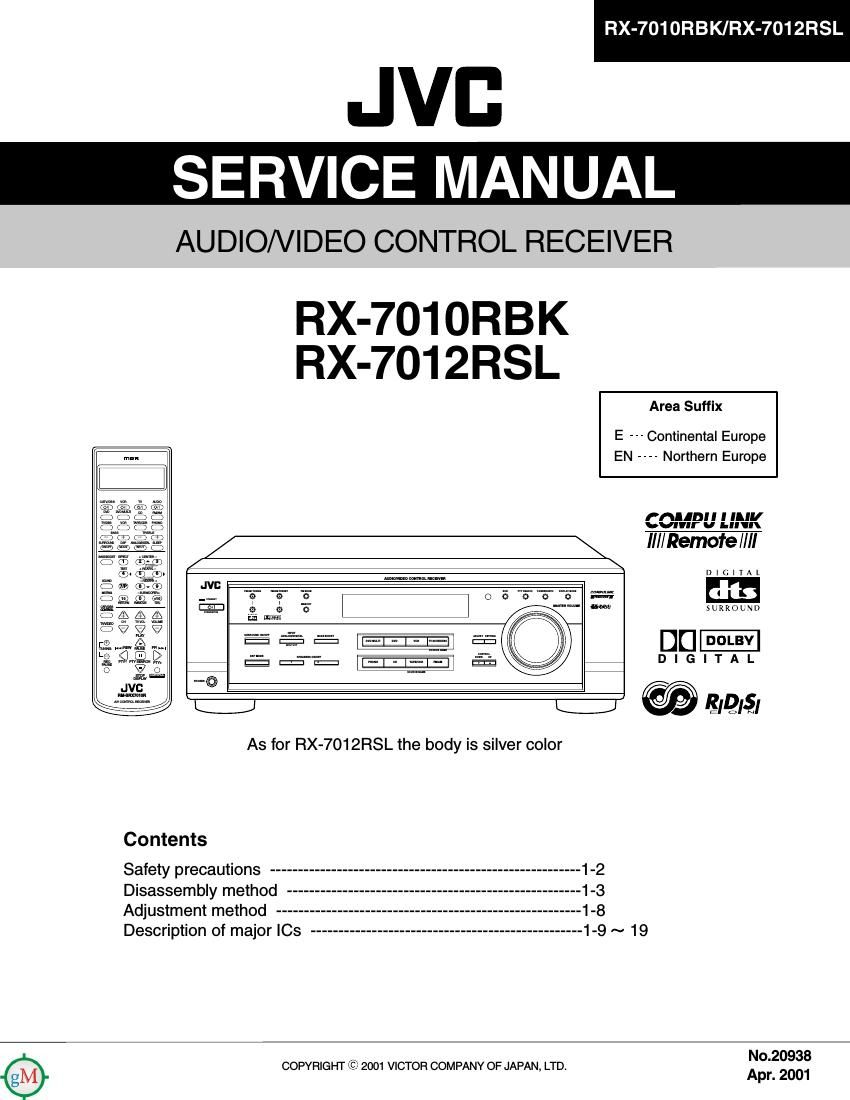

Jvc RX 7012 RSL Service Manual

Page 2

http: //getMANUAL . com

RX-701ORBK/RX-7012RSL

-Safety Precautions

1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product
should not be made. Any design alterations or additions will void the manufacturers warranty and will further
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics. These
characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by (/t\,) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)

After re-assembling the product, always perform an isolation check on the exposed metal parts of the product

(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the

product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

. Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 Q10W resistor paralleled by a 0.1 51.1 F AC-type capacitor

between an exposed metal part and a known good earth ground. AC VOLTMETER
Measure the AC voltage across the resistor with the AC a (Having1000
voltmeter. ohms/volts,

Move the resistor connection to eachexposed metal part, c more sens'W'W)

particularly any exposed metal part having a return path to F A TYPE
the chassis, and meausre the AC voltage across the resistor. 0'15 C

Now, reverse the plug in the AC outlet and repeat each -| Placethis
measurement. voltage measured Any must not exceed 0.75 V WV . Pmbe 0"
each exposed

AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). 15009 10W metal part.

Good earth ground

- Warning A CAUTION

1.This equipment has been designed and manufactured to meet international safety standards. Burrs formed during molding may
2. it is the legal responsibility of the repairer to ensure that these safety standards are maintained. be left over on some parts of the
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts. such burrs in the case of

5. If mains voltage selector is provided, check setting for local voltage. preforming repair of this system.

chassis. Therefore, pay attention to

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor (-), diode (h) and ICP (Q) or identified by the (N
mark nearby are critical for safety.

When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.
(Except the JC version)

Page 94

To change the transmittable signals for
operating a CATV converter or DBS tuner

1. Press and hold CATV/DBS 0/ I .
2. Press CATV/DES CONTROL.

3. Enter manufacturers code using buttons 1-9,
and 0.
See the list to the right to find the code.

4. Release CATV/DBS 0/ | .

The following buttons can be used for operating the CATV
converter or DBS tuner:

CATV/DB8 0/! 1 Turns on and off the CATV converter
or DES tuner.
CH +/-2 Changes the channels.

1 - 10, 0, 100+ (+10): Selects the channels.
The 10 button will function as the
ENTER button if your equipment
requires pressing ENTER after
selecting a channel number.
Note:

Refer to the manual supplied with your CATV converter or 088
tuner.

5. Try to operate your CATV converter or DBS
tuner by pressing CATV/DES 0/ | .
When your CATV converter or DES tuner turns on or off, you
have entered the correct code.
If there are more than one code listed for your brand of
CATV converter or DBS tuner , try each one until the correct
one is entered.

Note:

You cannot use both the CATV converter and DBS tuner at the same
time.

EN3174DRXV7010&7012R[BLI 36
{4?

For CATV converter

Manufacturer

Codes

GENERAL INSTRUMENT 06, 07, 08, 09, 10,

11,12,13,14,29

HAMLIN/REGAL 01, 02, 03, O4, 05
JERROLD 06, O7, 08, 09, 10,
11, 12, 13, 14
OAK 15, 16, 17
PANASONIC 18, 19, 20
PIONEER 21, 22
SCIENTIFIC ATLANTA 23, 24, 25
TOCOM 26
ZENITH 27, 28

Manufacturers codes are subject to change without

notice. If they are changed, this remote control cannot

operate the equipment.

For DBs tuner

Manufacturer Codes

JVC 56, 57, 67

AMSTRAD 43, 44, 45, 46, 47, 48, 49
BLAUPUNKT 30

ECHOSTAR 50, 51, 67

GOLDSTAR 31

GRUNDIG 32, 33

HIRSHMANN 48,52, 53, 54, 55
INSTRUMENT 68

ITT/NOKIA 34

KATHREIN 52, 58, 59, 60, 61, 62, 63
NEC 35, 36

ORBITECH 48

PHILIPS 37, 38

RCA 65

SAMSUNG 39, 40

SCHWAIGER 61, 64

SIEMENS 41, 42

SONY 66

TECHNISAT 48

Manufacturers codes are subject to change without

notice. If they are changed, this remote control cannot

operate the equipment.
