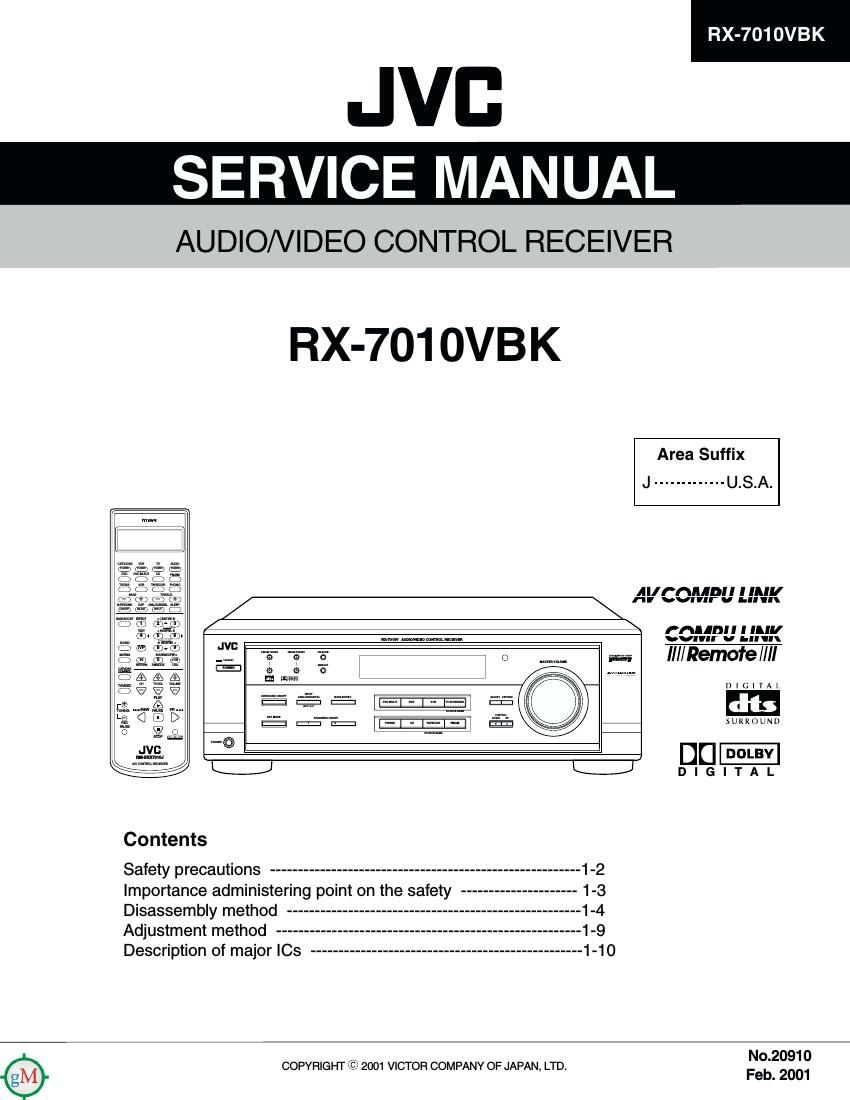

Jvc RX 7010 VBK Service Manual

Page 2

http: //getMANUAL . com

RX-701OVBK

-Safety Precautions

1.This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of

the product should not be made. Any design alterations or additions will void the manufacturers
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics.

These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by (/!\) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the

like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)

After re-assembling the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet,particularly any exposed
metal part having a return path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)

.Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,500910W resistor paralleled by
a0.15tF AC-type capacitor between an exposed

AC VOLTMETER
metal part and a known good earth ground. (Having 1000
Measure the AC voltage across the resistor with the 7 ohms/volts,
AC voltmeter. or more sensitivity)
Move the resistor connection to eachexposed metal °
part, particularly any exposed metal part having a 015;: AC TYPE
return path to the chassis, and meausre the AC .
voltage across the resistor. Now, reverse the plug in -||- 2232?:
the AC outlet and repeat each measurement. voltage 'Wl/ V 5 each exposed
measured Any must not exceed 0.75 V AC (r.m.s.). 15009 10W metal part.

This corresponds to 0.5 mA AC (r.m.s.).
Good earth ground

-Warmng
1.This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5. If mains voltage selector is provided, check setting for local voltage.

1-2

A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,

pay attention to such burrs in the case of preforming repair of this system.

Page 65

@

Connecting the Power Cord Putting Batteries in the Remote Control

Before plugging the receiver into an AC outlet, make sure that all
connections have been made.

Plug the power cord into an AC outlet.

Before using the remote control, put two supplied batteries first.
When using the remote control, aim the remote control directly at
the remote sensor on the receiver.

Keep the power cord away from the connecting cables and the

antenna. The power cord may cause noise or screen interference. We

recommend that you use a coaxial cable to connect the antenna,
since it is welleshielded against interference.

Note:

The preset settings such as preset channels and sound adjustment
may be erased in a few days in the following cases:

- When you unplug the power cord.

- When a power failure occurs.

CAUTIONS:

- Do not touch the power cord with wet hands.

- Do not pull on the power cord to unplug the cord.When
unplugging the cord, always grasp the plug so as not to damage
the cord.

EN01709,RX77OIDV[J]J 9

1. On the back of the remote control, remove the
battery cover.

2. Insert batteries. Make sure to match the polarity:
(+) to (+) and (-) to (-).

3. Replace the cover.

If the range or effectiveness of the remote control decreases. replace

the batteries. Use two R6P(SUM73)/AA(15F) type dryecell batteries.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:
- Place batteries in the remote control so they match the polarity:
(+) to (+) and (-) to (-).
- Use the correct type of batteries. Batteries that look similar may
differ in voltage.
- Always replace both batteries at the same time.
- Do not expose batteries to heat or flame.
