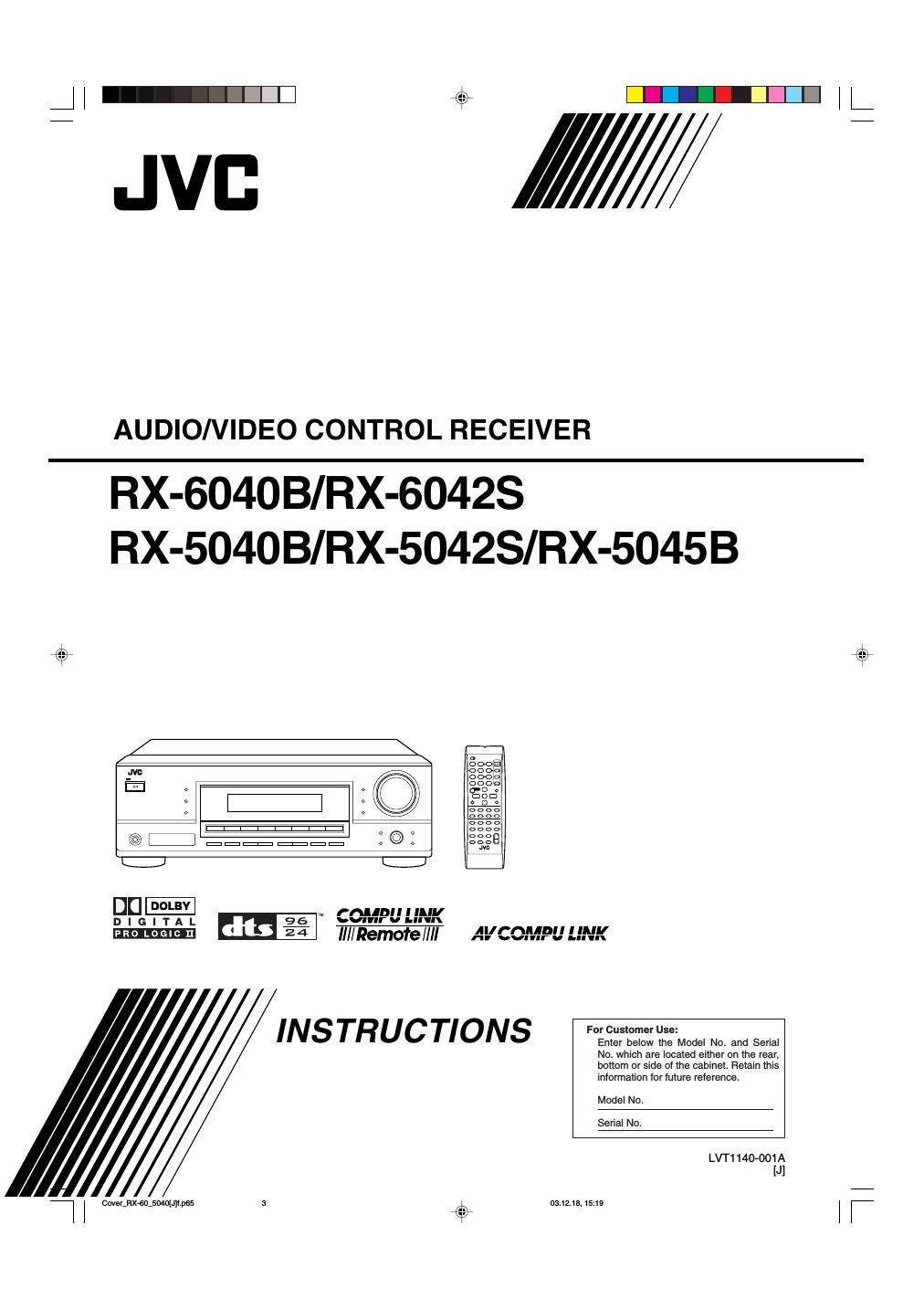

Jvc RX 6040 B Owners Manual
This is the 86 pages manual for Jvc RX 6040 B Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RX 6040 B Owners Manual (Ocr-read)
Page 1
G-1 CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. ATTENTION Afin déviter tout risque délectrocution, dincendie, etc.: 1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de lappareil. 2. Ne pas exposer lappareil à la pluie ni à lhumidité. Warnings, Cautions and Others/ Mises en garde, précautions et indications diverses Caution––STANDBY/ON button! Disconnect the mains plug to shut the power off completely. The STANDBY/ON button in any position does not disconnect the mains line. The power can be remote controlled. Attention––Commutateur STANDBY/ON ! Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé. Note to CATV system installer: This reminder is provided to call the CATV system installers attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. For Canada/pour le Canada THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFER- ENCE-CAUSING EQUIPMENT STANDARD ENTITLED DIGITAL APPARATUS, ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; APPAREILS NUMERIQUES, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION:POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. For U.S.A This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Safety_RX_60_5040[J]f.p6503.12.18, 15:28 1
Page 2
1 Table of Contents Adjusting Sound ........................................ 23 Basic Adjustment Items ............................................................ 23 Basic Procedure ........................................................................ 23 7Adjusting the Equalization Patterns ..................................... 24 7Adjusting the Speaker Output Levels ................................... 24 7Adjusting the Sound Parameters for the Surround and DSP Modes .................................................................... 24 Using the Surround Modes .......................... 25 Reproducing Theater Ambience................................................ 25 Introducing the Surround Modes ............................................. 25 Activating the Surround Modes ............................................... 27 Using the DSP Modes ................................ 28 Reproducing the Sound Field ................................................... 28 Introducing the DSP Modes ..................................................... 28 Activating the DSP Modes ....................................................... 29 COMPU LINK Remote Control System ......... 30 AV COMPU LINK Remote Control System .... 31 Operating JVCs Audio/Video Components ... 33 Operating Audio Components .................................................. 33 Operating Video Components .................................................. 34 Operating Other Manufacturers Video Equipment ............................................ 35 Troubleshooting ......................................... 37 Specifications ............................................ 38 Parts Identification ...................................... 2 Getting Started ........................................... 5 Before Installation ...................................................................... 5 Checking the Supplied Accessories ........................................... 5 Putting Batteries in the Remote Control .................................... 5 Connecting the FM and AM Antennas ....................................... 5 Connecting the Speakers and Subwoofer ................................... 6 Connecting Audio/Video Components ....................................... 7 7 Analog Connections ............................................................... 7 7 Digital Connections .............................................................. 10 Connecting the Power Cord ..................................................... 10 Basic Operations ....................................... 11 Daily Operational Procedure .................................................... 11 Turning On the Power .............................................................. 11 Selecting the Source to Play ..................................................... 11 Adjusting the Volume ............................................................... 12 Turning On and Off the Subwoofer Sound .............................. 13 Selecting the Analog or Digital Input Mode ............................ 13 Changing the Display Brightness ............................................. 14 Attenuating the Input Signal .................................................... 14 Changing the Source Name ...................................................... 14 Reinforcing the Bass ................................................................ 15 Muting the Sound ..................................................................... 15 Using the Sleep Timer .............................................................. 15 Receiving Radio Broadcasts ........................ 16 Tuning in to Stations Manually ................................................ 16 Using Preset Tuning ................................................................. 16 Selecting the FM Reception Mode ........................................... 17 Basic Settings ........................................... 18 Quick Speaker Setup ................................................................ 18 Basic Setting Items ................................................................... 19 Basic Procedure ........................................................................ 19 7Setting the Speakers ............................................................. 20 7Setting the Speaker Distance ................................................ 20 7Setting the Bass Sounds ....................................................... 20 7Selecting the Main or Sub Channel ...................................... 21 7Setting for Easy and Effective Surround Operations ............ 21 7Setting the Digital Input Terminals ...................................... 22 7Setting the Component Video Input ..................................... 22 This mark indicates that ONLY the remote control CAN be used for the operation explained. Remote NOT This mark indicates that the remote control CANNOT be used for the operation explained. Use the buttons and controls on the front panel. 01-10_5040&6040[J]f.p6503.12.18, 15:20 1
Page 16
15 The following basic operations are possible only using the remote control. Reinforcing the Bass This function is only for RX-6040B/RX-6042S. You can boost the bass level. - Once you have made adjustment, it is memorized for each source. Press BASS BOOST to boost the bass level. The BASS BOOST indicator lights up on the display. - Each time you press the button, Bass Boost turns on (BASSBOOST ON) and off (BASSBOOST OFF) alternately. Note: This function affects only the sounds from the front speakers. Muting the Sound Press MUTING to mute the sound through all speakers and headphones connected. MUTING appears on the display and the volume turns off (the VOLUME indicator and its level indication go off). To restore the sound, press MUTING again. - Turning MASTER VOLUME on the front panel or pressing VOLUME +/– on the remote control also restores the sound. Recording a source You can record any sources playing through the receiver to a cassette deck (or a CD recorder) connected to the TAPE/CDR jacks and the VCR connected to the VCR jacks at the same time. While recording, you can listen to the selected sound source at whatever sound level you like without affecting the sound levels of the recording. Note: The output volume level, Midnight Mode (see page 21), Bass Boost (only for RX-6040B/RX-6042S), Equalization patterns (see page 24), Surround modes and DSP modes (see pages 25 to 29) cannot affect the recording. Basic adjustment auto memory This receiver memorizes sound settings for each source- - when you turn off the power, - when you change the source, - when you change the analog/digital input modes, and - when you assign the source name (see page 14). When you change the source, the memorized settings for the newly selected source are automatically recalled. The following can be stored for each source: - Analog/digital input mode (see page 13) - Input attenuator mode (see page 14) - Equalization pattern (see page 24) - Speaker output levels (see page 24) - Surround and DSP mode selection (see pages 25 and 28) - Bass Boost setting (only for RX-6040B/RX-6042S) Notes: -If the source is FM or AM, you can assign a different setting for each band. -A sound setting assigned for a digital component is valid for both the analog and digital input modes. Using the Sleep Timer Using the Sleep Timer, you can fall asleep while listening to music. When the shut-off time comes, the receiver turns off automatically. Press SLEEP repeatedly. The SLEEP indicator lights up on the display, and the shut-off time changes in 10 minutes intervals: To check or change the time remaining until the shut-off time: Press SLEEP once. The remaining time until the shut-off time appears in minutes. - To change the shut-off time, press SLEEP repeatedly. To cancel the Sleep Timer: Press SLEEP repeatedly until SLEEP OFF appears on the display. The SLEEP indicator goes off. - Turning off the power also cancels the Sleep Timer. Reinforcing the Bass (Only for RX-6040B/RX-6042S)Using the Sleep Timer Muting the Sound 20 10 30 40 50 60 70 80 90 (Canceled) OFF CD- DISC SLEEP REC PAUSE BASSBOOST MUTING REWFF TA/NEWS/INFO 11-15_5040&6040[J]f.p6503.12.18, 15:21 15
