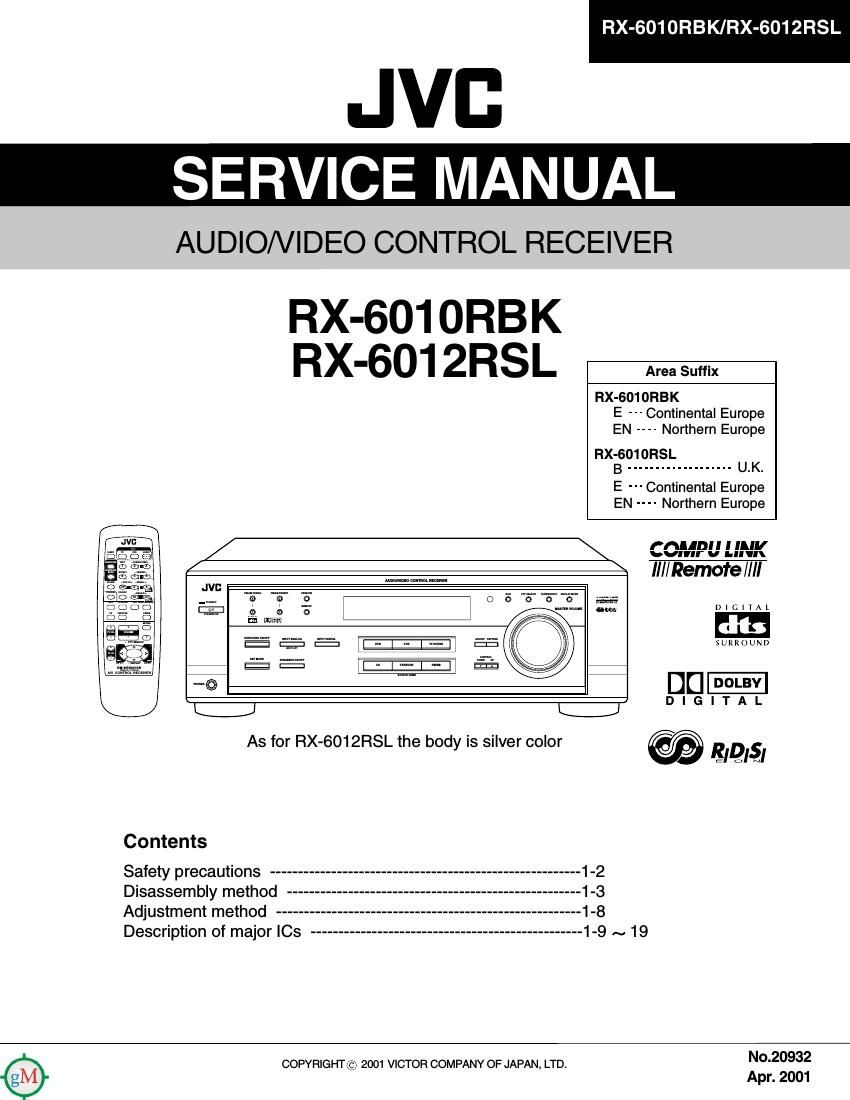

Jvc RX 6010 RBK Service Manual

Page 2

http: //getMANUAL . com

RX-601ORBK/RX-6012RSL

-Safety Precautions

1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product
should not be made. Any design alterations or additions will void the manufacturers warranty and will further
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics. These
characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by (/t\,) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)

After re-assembling the product, always perform an isolation check on the exposed metal parts of the product

(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the

product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

. Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 Q10W resistor paralleled by a 0.1 51.1 F AC-type capacitor

between an exposed metal part and a known good earth ground. AC VOLTMETER
Measure the AC voltage across the resistor with the AC a (Having1000
voltmeter. ohms/volts,

Move the resistor connection to eachexposed metal part, c more sens'W'W)

particularly any exposed metal part having a return path to F A TYPE
the chassis, and meausre the AC voltage across the resistor. 0'15 C

Now, reverse the plug in the AC outlet and repeat each -| Placethis
measurement. voltage measured Any must not exceed 0.75 V WV . Pmbe 0"
each exposed

AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). 15009 10W metal part.

Good earth ground

- Warning A CAUTION

1.This equipment has been designed and manufactured to meet international safety standards. Burrs formed during molding may
2. it is the legal responsibility of the repairer to ensure that these safety standards are maintained. be left over on some parts of the
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts. such burrs in the case of

5. If mains voltage selector is provided, check setting for local voltage. preforming repair of this system.

chassis. Therefore, pay attention to

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor (-), diode (h) and ICP (Q) or identified by the (N
mark nearby are critical for safety.

When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.
(Except the JC version)

Page 34

RX-601ORBK/RX-6012RSL

PARTS LIST

[ RX-601ORBK]
[ RX-6012RSL]

* All printed circuit boards and its assemblies are not available as service parts.

Area suffix

B ------------------------------- U.K.

E ----------- Continental Europe

EN ------------ Northern Europe
- Contents -
Exploded View of general assembly and parts list ......................................... 3- 3
Electrical parts list ---------------------------------------------------------------------------------- 3- 5
Packing materials and accessories parts list ----------------------------------------------- 3-18

3-1

Page 64

I Basic Operations

The following operations are commonly used When you play any sound source.

Turning the Power and Off [Standby]

0n the front ganel:

Selected source name appears

To turn on the ppwler, press :' mm" film?" IE] mumps) m unowlm 22239.50 :flianzsm was:
STANDBY/ON o/ . $522.13 E. s
The STANDBY lamp goes off. The name of 4" '3

the current source (or station frequency)
appears on the display.

DVD Select the DVD player.
Current source name appears TV SOUND Select the TV sound.
5 VCR Select the Video component connected to the
"M 3' 3' VCR jacks.
CD * Select the CD player.
TAPE/CDR * Select the cassette deck (or the CD recorder).
Current volume level is Shown here -l FM/AM * Select an FM or AM (MW/LW) broadcast.

' Each time you press the button, the band

To turn off the power (into standby mode), alternates between FM and AM (MW/LW).

press STANDBY/ON O/l again. lawn
The STANDBY lamp lights up. A small "m
amount of power is consumed in standby
mode. To turn the power off completely,
unplug the AC power cord.

Notes:

- When connecting a CD recorder (to the TAPE/CDR jacks), change
the source name that appears on the display. See page 11 for
details.

- When you have connected some digital source components using
the digital terminals (see page 7), you need to select the digital

From the remote contro_l:

To turn on the power, press AUDIO in the WM input mode.

0/ l (standby/on) section. a - When you press one of the source selecting buttons on the remote
The STANDBY lamp goes off The name of the v control marked above with an asterisk (*), the receiver

current source (or station frequency) appears on automatically turns 0"-

the display.

Siqnal and speaker indicators on the display

To turn off the power (into standby mode),

press AUDIO in the 0/ | (standby/on) section The signal indicators light up in the following cases:
again. 0 Only the indicators for the incoming signals light up.
The STANDBY lamp lights up. ° When analog input is selected, L" and R always light up.

The speaker indicators light up only -:
- When the corresponding speaker is activated.
Selecting the Source to Play AND
- When the coiresponding speaker is required for the DSP mode

Press one of the source selecting buttons. selected currently.

an the front anel: Signal Indicators light up in Speaker indicators light up
A i red: in white:

vcn rv sauna

uvo

L: - When digital input is selected: Lights up when the left
channel signal comes in.
- When analog input is selected: Always lights up.
R: - When digital input is selected: Lights up when the right
channel signal comes in.
- When analog input is selected: Always lights up.
C: Lights up when the center channel signal comes in.
LS: Lights up when the left rear channel signal comes in.
RS: Lights up when the right rear channel signal comes in.
S: Lights up when the monaural rear channel signal comes in.
LFE: Lights up when the LFE channel signal comes in.

Note:
When SUBWOOFER is set to "YES" (see page 11), lights up.

8
