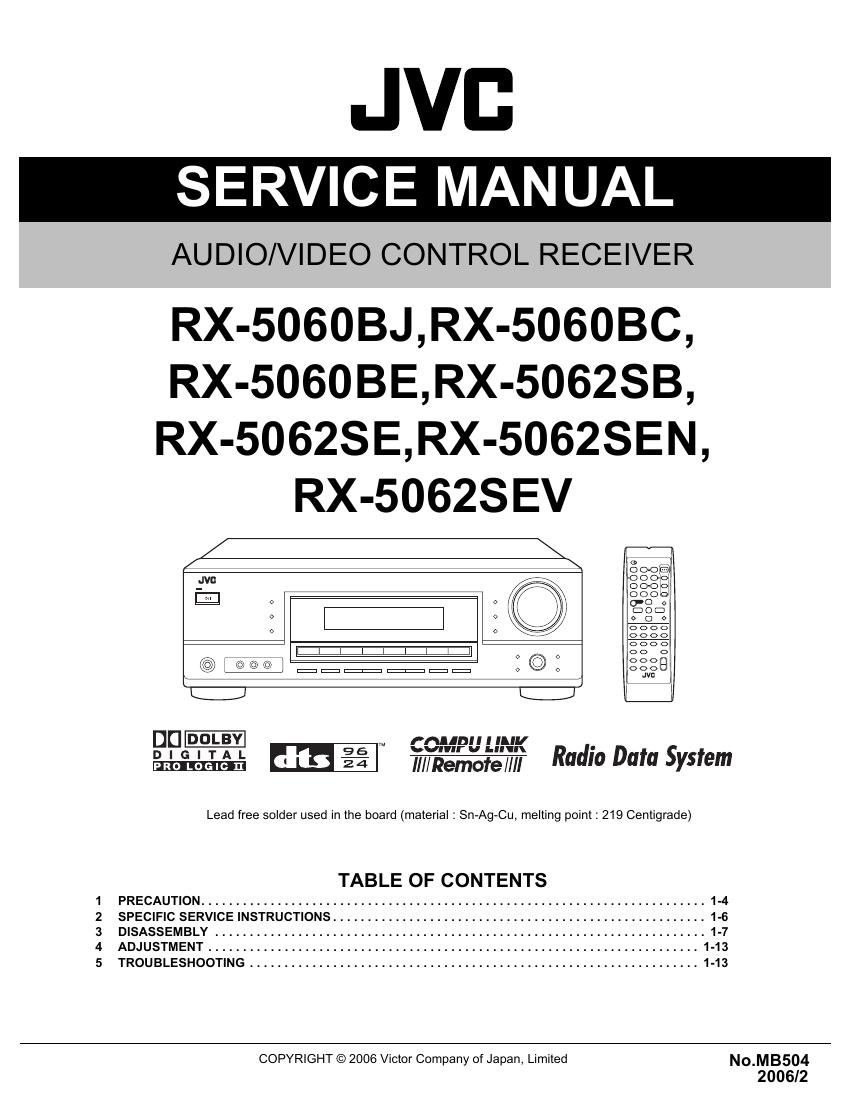

Jvc RX 5060 BC Service Manual
This is the 14 pages manual for Jvc RX 5060 BC Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RX 5060 BC Service Manual (Ocr-read)
Page 1
1-2 (No.MB504) SPECIFICATION Northern america version Amplifier Output Power Front channels 100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no more than 10% total harmonic distortion. Center channel 100 W, min. RMS, driven into 8 Ω, at 1 kHz with no more than 10% total harmon- ic distortion. Surround channels 100 W per channel, min. RMS, driven int 8 Ω, at 1 kHz with no more than 10% total harmonic distortion. Audio Audio Input Sensitivity/Impedance (1 kHz) CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX : 220 mV/47 k Ω Audio Input (DIGITAL IN)* Coaxial DIGITAL 1 (DVD) : 0.5 V(p-p)/75 Ω Optical DIGITAL 2 (CD) : -21 dBm to -15 dBm (660 nm ±30 nm) Recording Output Level TAPE/CDR, VCR : 220 mV Signal-to-Noise Ratio ('66 IHF/'78 IHF) CD, TAPE/CDR, VCR, TV SOUND, DVD : 62 dB/71 dB Frequency Response (8 Ω) CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX : 20 Hz to 20 kHz (±1 dB) Equalization (5 bands) 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz : ±8 dB (in 2 dB steps) Video Video Input Sensitivity/Impedance Composite video DVD, VCR, AUX : 1 V(p-p)/75 Ω Video Output Level Composite video VCR, MONITOR OUT : 1 V(p-p)/75 Ω Synchronization Negative Signal-to-Noise Ratio 45 dB FM tuner (IHF) Tuning Range 87.5 MHz to 108.0 MHz Usable Sensitivity Monaural 12.8 dBf (1.2 µV/75 Ω) 50 dB Quieting Sensitivity Monaural 16.0 dBf (1.7 µV/75 Ω) Stereo 37.5 dBf (20.5 µV/75 Ω) Stereo Separation at OUT (REC) 35 dB at 1 kHz AM tuner Tuning Range 530 kHz to 1 710 kHz General Power Requirements AC 120V , 60 Hz Power Consumption 155 W/200 VA (at operation) 0.8 W (in standby mode) Dimensions (W × H × D) 435 mm × 146.5 mm × 369.5 mm Mass 7.0 kg
Page 2
(No.MB504)1-3 Europian version * Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency?32 kHz, 44.1 kHz, 48 kHz) Designs and specifications are subject to change without notice. Amplifier Output Power Front channels 100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no more than 10% total harmonic distortion. Center channel 100 W, min. RMS, driven into 8 Ω, at 1 kHz with no more than 10% total harmon- ic distortion. Surround channels 100 W per channel, min. RMS, driven into 8 Ω, at 1 kHz with no more than 10% total harmonic distortion. Audio Audio Input Sensitivity/Impedance (1 kHz) CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX : 220 mV/47 k Ω Audio Input (DIGITAL IN) Coaxial DIGITAL 1 (DVD) : 0.5 V(p-p)/75 Ω Optical DIGITAL 2 (CD) : -21 dBm to -15 dBm (660 nm ±30 nm) Recording Output Level TAPE/CDR, VCR : 220 mV Signal-to-Noise Ratio ('66 IHF/DIN) CD, TAPE/CDR, VCR, TV SOUND, DVD : 66 dB/62 dB Frequency Response (8 Ω) CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX : 20 Hz to 20 kHz (±1 dB) Equalization (5 bands) 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz : ±8 dB (in 2 dB steps) Video Video Input Sensitivity/Impedance Composite video DVD, VCR, AUX : 1 V(p-p)/75 Ω Video Output Level Composite video VCR, MONITOR OUT : 1 V(p-p)/75 Ω Synchronization Negative Signal-to-Noise Ratio 45 dB FM tuner (IHF) Tuning Range 87.50 MHz to 108.00 MHz Usable Sensitivity Monaural 17.0 dBf (1.9 µV/75 Ω) 50 dB Quieting Sensitivity Monaural 21.3 dBf (3.2 µV/75 Ω) Stereo 41.3 dBf (31.8 µV/75 Ω) Stereo Separation at OUT (REC) 35 dB at 1 kHz AM (MW) tuner Tuning Range 522 kHz to 1 629 kHz General Power Requirements AC 230 V , 50 Hz Power Consumption 140 W (at operation) 0.8 W (in standby mode) Dimensions (W × H × D) 435 mm × 146.5 mm × 369.5 mm Mass 7.0 kg
Page 5
1-6 (No.MB504) SECTION 2 SPECIFIC SERVICE INSTRUCTIONS This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
