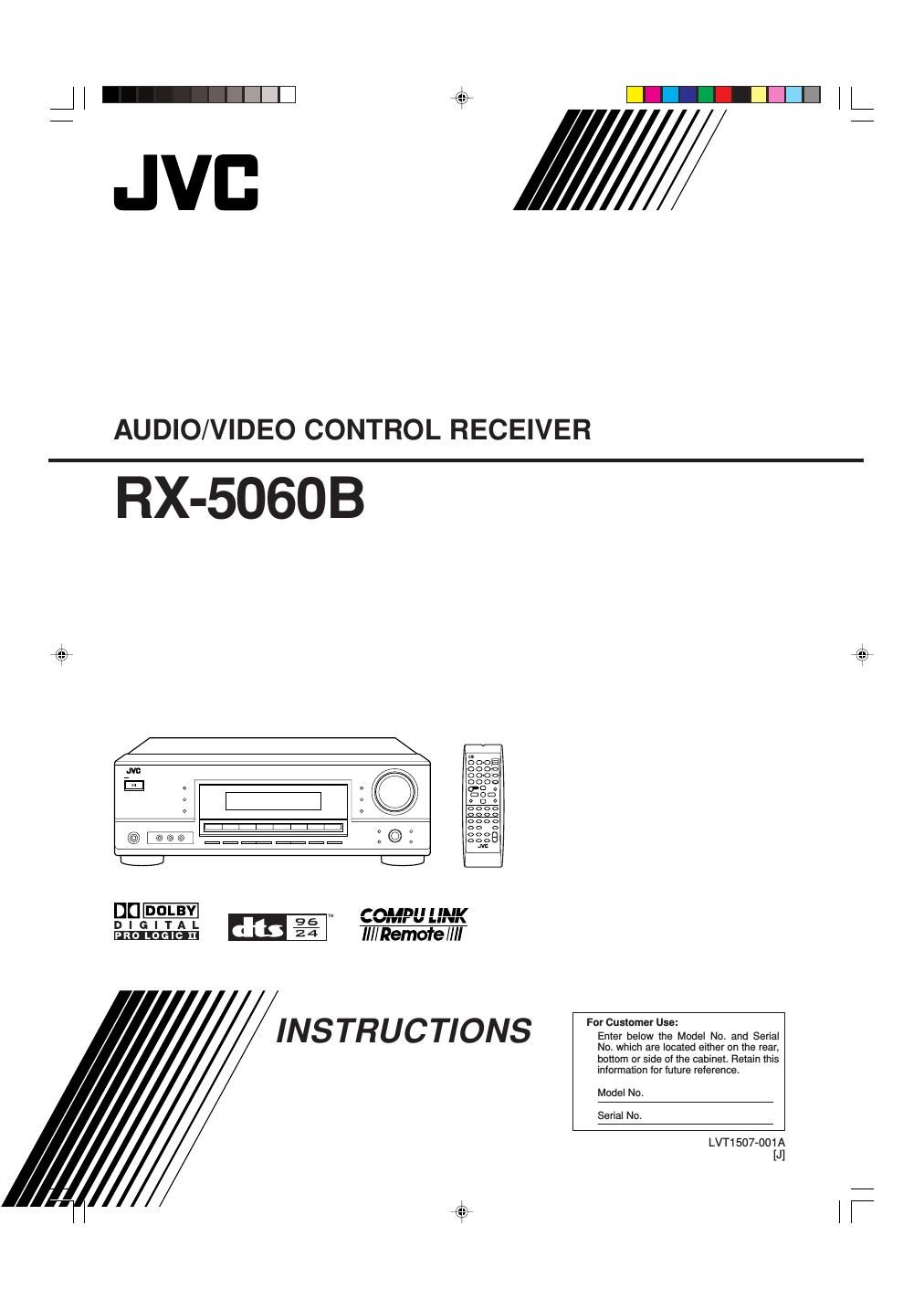

Jvc RX 5060 B Owners Manual
This is the 116 pages manual for Jvc RX 5060 B Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RX 5060 B Owners Manual (Ocr-read)
Page 1
G-1 CAUTION To reduce the risk of electrical shocks, fire, etc.:1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. ATTENTION Afin déviter tout risque délectrocution, dincendie, et\ c.: 1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir lecoffret de lappareil. 2. Ne pas exposer lappareil à la pluie ni à lhumidité. Warnings, Cautions and Others/ Mises en garde, précautions et indications diverses Note to CATV system installer: This reminder is provided to call the CATV system installers attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. For Canada/pour le Canada THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFER- ENCE-CAUSING EQUIPMENT STANDARD ENTITLED DIGITAL APPARATUS, ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; APPAREILS NUMERIQUES, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION For U.S.A This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does caus\ e harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. [European Union only] [Union européenne seulement] Caution––STANDBY/ON button! Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). The STANDBY/ON button in any position does not disconnect the mains line. - When the unit is on standby, the STANDBY lamp lights red. - When the unit is turned on, the STANDBY lamp goes off. The power can be remote controlled. Attention––Touch STANDBY/ON ! Déconnectez la fiche dalimentation secteur pour mettre lappareil complètement hors tension (le témoin STANBY est éteint). La touche STANDBY/ON , dans nimporte quelle position, ne déconnecte pas lappareil du secteur. - Quand lappareil est en mode dattente, le témoin STANDBY est allumé en rouge. - Quand lappareil est sous tension, le témoin STANBY est éteint. L alimentation peut être télécommandée. CAUTION Changes or modifications not approved by JVC could void the users authority to operate the equipment.
Page 2
1 Table of Contents Adjusting Sound ........................................ 21 Basic Adjustment Items ............................................................ 21 Basic Procedure ........................................................................\ 21 7Adjusting the Equalization Patterns ..................................... 22 7 Adjusting the Speaker Output Levels ................................... 22 7 Adjusting the Sound Parameters for the Surround and DSP Modes .................................................................... 22 Using the Surround Modes .......................... 23 Reproducing Theater Ambience ................................................ 23 Introducing the Surround Modes ............................................. 23 Activating the Surround Modes ............................................... 25 7 Auto Surround Function ....................................................... 25 7 Activating the Surround Modes Manually ........................... 25 Using the DSP Modes ................................ 26 Reproducing the Sound Field ................................................... 26 Introducing the DSP Modes ..................................................... 26 Activating the DSP Modes ....................................................... 27 COMPU LINK Remote Control System ......... 28 Operating JVCs Audio/Video Components ... 29 Operating Audio Components .................................................. 29 Operating Video Components .................................................. 30 Operating Other Manufacturers Video Equipment ............................................ 31 Troubleshooting ......................................... 33 Specifications ............................................ 34 Parts Identification ...................................... 2 Getting Started ........................................... 4 Before Installation ...................................................................... 4 Checking the Supplied Accessories ........................................... 4 Putting Batteries in the Remote Control .................................... 4 Connecting the FM and AM Antennas ....................................... 4 Connecting the Speakers and Subwoofer ................................... 5 Connecting Audio/Video Components ....................................... 6 7 Analog Connections ............................................................... 6 7 Digital Connections ................................................................ 8 Connecting the Power Cord ....................................................... 8 Basic Operations ......................................... 9 Daily Operational Procedure ...................................................... 9 Turning On the Power ................................................................ 9 Selecting the Source to Play ....................................................... 9 Adjusting the Volume ............................................................... 10 Turning On and Off the Subwoofer Sound .............................. 11 Selecting the Analog or Digital Input Mode ............................ 11 Changing the Display Brightness ............................................. 12 Attenuating the Input Signal .................................................... 12 Changing the Source Name ...................................................... 12 Muting the Sound ..................................................................... 13 Using the Sleep Timer .............................................................. 13 Receiving Radio Broadcasts ........................ 14 Tuning in to Stations Manually ................................................ 14 Using Preset Tuning ................................................................. 14 Selecting the FM Reception Mode ........................................... 15 Basic Settings ........................................... 16 Quick Speaker Setup ................................................................ 16 Basic Setting Items ................................................................... 17 Basic Procedure ........................................................................\ 17 7 Setting the Speakers ............................................................. 18 7 Setting the Speaker Distance ................................................ 18 7 Setting the Bass Sounds ....................................................... 18 7 Selecting the Main or Sub Channel ...................................... 19 7 Setting for Effective Surround Operations ........................... 20 7 Setting the Digital Input Terminals ...................................... 20 This mark indicates that ONLY the remote control CAN be used for the operation explained. Remote NOT This mark indicates that the remote control CANNOT be used for the operation explained. Use the buttons and controls on the front panel.
Page 13
12 When playing software encoded with Dolby Digital or DTS, the following symptoms may occur: - Sound does not come out at the beginning of playback. - Noise comes out while searching for or skipping chapters ortracks. In this case, press INPUT DIGITAL repeatedly to select DOLBY DIGITAL or DTS SURROUND. - Each time you press INPUT DIGITAL, the input mode changes as follows: - When using the remote control, press ANALOG/DIGITAL repeatedly to select DOLBY DIGITAL or DTS SURROUND. Each time you press ANALOG/DIGITAL on the remote control, the input mode changes as follows: DIGITAL AUTO =DOLBY DIGITAL= DTS SURROUND = ANALOG =(back to the beginning) When DOLBY DIGITAL or DTS SURROUND is selected, the DIGITAL AUTO indicator goes off, and the corresponding digital signal format indicator lights up on the display. - If the incoming signal does not match the selected digital signal format, the indicator of the selected signal format will flash. Note: When you turn off the power or select another source, DOLBY DIGITAL and DTS SURROUND settings are canceled and the digitalinput mode is automatically reset to DIGITAL AUTO. To select the analog input mode Press INPUT ANALOG (or ANALOG/DIGITAL on the remote control repeatedly until ANALOG appears on the display). The ANALOG indicator lights up. Changing the Display Brightness You can dim the display. Press DIMMER. - Each time you press the button, the display dims and brightens alternately. Attenuating the Input Signal When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion. - Once you have made adjustment, it is memorized for each analog source. Press and hold INPUT ATT (INPUT ANALOG) so that the INPUT ATT indicator lights up on the display. - Each time you press and hold the button, the input attenuator mode turns on (INPUT ATT ON) and off (INPUT NORMAL). Changing the Source Name When you have connected a CD recorder to the TAPE/CDR jacks on the rear panel, change the source name which will be shown on the display. When changing the source name from TAPE to CDR: 1 Press TAPE/CDR (SOURCE NAME). - Make sure TAPE appears on the display. 2 Press and hold SOURCE NAME (TAPE/CDR) until ASSIGN CDR appears on the display. To change the source name back to TAPE, repeat the same procedure above. Note: Without changing the source name, you can still use the connected components. However, there may be some inconvenience.– TAPE will appear on the display when you select the CD recorder. – You cannot use the digital input (see page 11) for the CD recorder. DIGITAL AUTO DOLBY DIGITAL DTS SURROUND RemoteNOT RemoteNOT Basic Operations
Page 46
5 English Connecting the Speakers and Subwoofer You can connect five speakers (a pair of front speakers, a center speaker, and a pair of surround speakers) and a subwoofer. CAUTIONS: - Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals. - Do not connect more than one speaker to each speaker terminal. Connecting the speakers 1T wist and remove the insulation at the end of each speaker cord. 2Pr ess and hold the clamp of the speaker terminal. 3 Insert the speaker cord. 4 Release the finger from the clamp. For each speaker (except for a subwoofer), connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals\ marked on the speakers. AM antenna connections Turn the loop until you have the best reception. Notes: - If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as illustrated. - Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception. - If reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.) AM LOOP AM EXT ANTENNA C N ERSPEAKER SURROUND SPEAK RS RIGHT LEFT FRONT SPEAKERS RIGHT LEFT CAU ION:SP ER + – + – To center speaker To right front speaker To right surround speaker To left surround speaker To left front speaker R T FT + – 1 23 4 AM Loop Antenna (supplied) Outdoor single vinyl-covered wire (not supplied) Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna. 1 2 T FT + – R T FT + – Do not connect the AC power cord until all other connections have been made.
Page 66
25 English -For DTS multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are automatically detected and DTS SURROUND is activated. Note: When the Dolby Digital or DTS multi-channel digital signal stops coming in, PLII MOVIE will be activated. - For analog sources and digital 2-channel software, you can select one of the following Surround modes. Each time you press SURROUND, Surround modes change as follows: *T he receiver automatically changes the Surround mode to PLII MOVIE or SURROUND OFF according to the input signal. - For Dual Mono software, you can select the channel you listen to. (See page 19.) To adjust the speaker output level, center tone, and sound effect of Dolby Pro Logic II Music, see page 22. To cancel the Surround mode Press SURROUND/DSP OFF. When playing Dolby Digital Surround EX or DTS-ES software You can enjoy Virtual 6.1-channel playback using Virtual Surround Back. To activate Virtual Surround Back, see page 20. Activating the Surround Modes Available Surround modes vary depending on the incoming signals. Activating one of the Surround modes for a source automatically r ecalls the memorized settings and adjustments (see pages 16 to 22). Auto Surround Function This receiver has Auto Surround Function, which allows you to enjoy the Surround mode simply by selecting the source (with digital input selected for that source). A uto Surround works... - When multi-channel signal is detected, an appropriate Surround mode will be turned on. - When Dolby Digital 2-channel with surround signals is detected, PLII MOVIE will be selected. - When Dolby Digital 2-channel without surround signals or Linear PCM signal is detected, SURROUND OFF will be selected. Note: This function does not take effect in the following cases: – While playing an analog source, – While selecting any of DSP modes (see page 26), and – While listening with the headphones-HEADPHONE or 3D H PHONE (see pages 11 and 24). Activating the Surround Modes Manually 1 Select and play any source. -Make sure you have selected the analog or digital input mode correctly. 2Pr ess SURROUND to activate the Surround mode. -W hen DOLBY DIGITAL, DTS SURROUND, or DUAL MONO is selected as the Surround mode, pressing SURROUND changes the indication on the display alternately between AUTO SURROUND and each Surround mode. (The surround effect does not change.) - For Dolby Digital multi-channel digital software (except 2-channel and Dual Mono software), incoming signals are automatically detected and DOLBY DIGITAL is activated. PRO LOGIC PLII MOVIE(Dolby Pro Logic II Movie) PLII MUSIC(Dolby Pro Logic II Music) PLII GAME (Dolby Pro Logic II Game) AUTO SURROUND * DUAL MONO SB VIRTUAL SB
