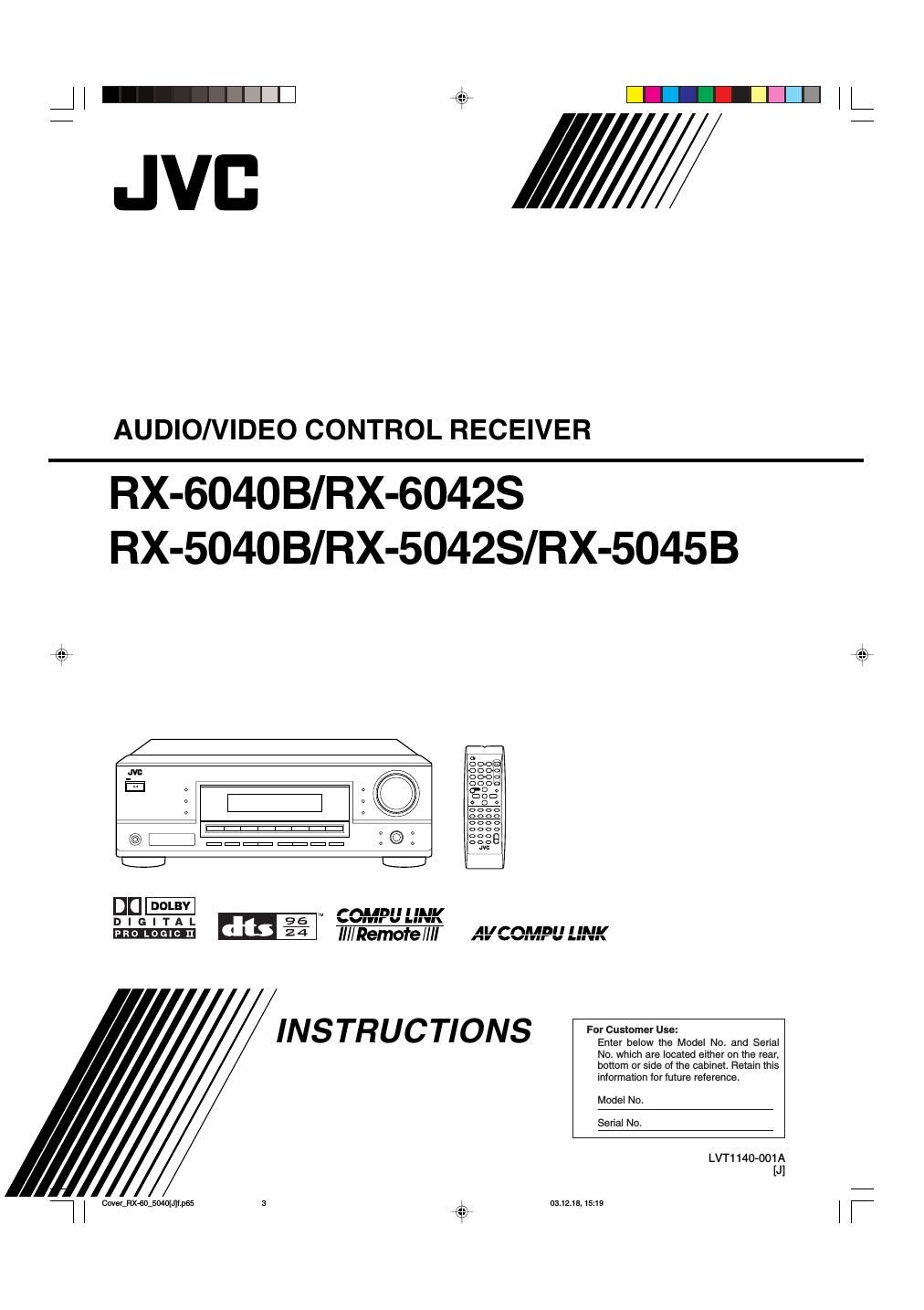

Extracted text from Jvc RX 5040 B Owners Manual (Ocr-read)
Page 1
G-1 CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. ATTENTION Afin déviter tout risque délectrocution, dincendie, etc.: 1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de lappareil. 2. Ne pas exposer lappareil à la pluie ni à lhumidité. Warnings, Cautions and Others/ Mises en garde, précautions et indications diverses Caution––STANDBY/ON button! Disconnect the mains plug to shut the power off completely. The STANDBY/ON button in any position does not disconnect the mains line. The power can be remote controlled. Attention––Commutateur STANDBY/ON ! Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé. Note to CATV system installer: This reminder is provided to call the CATV system installers attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. For Canada/pour le Canada THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFER- ENCE-CAUSING EQUIPMENT STANDARD ENTITLED DIGITAL APPARATUS, ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; APPAREILS NUMERIQUES, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION:POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. For U.S.A This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Safety_RX_60_5040[J]f.p6503.12.18, 15:28 1
Page 2
1 Table of Contents Adjusting Sound ........................................ 23 Basic Adjustment Items ............................................................ 23 Basic Procedure ........................................................................ 23 7Adjusting the Equalization Patterns ..................................... 24 7Adjusting the Speaker Output Levels ................................... 24 7Adjusting the Sound Parameters for the Surround and DSP Modes .................................................................... 24 Using the Surround Modes .......................... 25 Reproducing Theater Ambience................................................ 25 Introducing the Surround Modes ............................................. 25 Activating the Surround Modes ............................................... 27 Using the DSP Modes ................................ 28 Reproducing the Sound Field ................................................... 28 Introducing the DSP Modes ..................................................... 28 Activating the DSP Modes ....................................................... 29 COMPU LINK Remote Control System ......... 30 AV COMPU LINK Remote Control System .... 31 Operating JVCs Audio/Video Components ... 33 Operating Audio Components .................................................. 33 Operating Video Components .................................................. 34 Operating Other Manufacturers Video Equipment ............................................ 35 Troubleshooting ......................................... 37 Specifications ............................................ 38 Parts Identification ...................................... 2 Getting Started ........................................... 5 Before Installation ...................................................................... 5 Checking the Supplied Accessories ........................................... 5 Putting Batteries in the Remote Control .................................... 5 Connecting the FM and AM Antennas ....................................... 5 Connecting the Speakers and Subwoofer ................................... 6 Connecting Audio/Video Components ....................................... 7 7 Analog Connections ............................................................... 7 7 Digital Connections .............................................................. 10 Connecting the Power Cord ..................................................... 10 Basic Operations ....................................... 11 Daily Operational Procedure .................................................... 11 Turning On the Power .............................................................. 11 Selecting the Source to Play ..................................................... 11 Adjusting the Volume ............................................................... 12 Turning On and Off the Subwoofer Sound .............................. 13 Selecting the Analog or Digital Input Mode ............................ 13 Changing the Display Brightness ............................................. 14 Attenuating the Input Signal .................................................... 14 Changing the Source Name ...................................................... 14 Reinforcing the Bass ................................................................ 15 Muting the Sound ..................................................................... 15 Using the Sleep Timer .............................................................. 15 Receiving Radio Broadcasts ........................ 16 Tuning in to Stations Manually ................................................ 16 Using Preset Tuning ................................................................. 16 Selecting the FM Reception Mode ........................................... 17 Basic Settings ........................................... 18 Quick Speaker Setup ................................................................ 18 Basic Setting Items ................................................................... 19 Basic Procedure ........................................................................ 19 7Setting the Speakers ............................................................. 20 7Setting the Speaker Distance ................................................ 20 7Setting the Bass Sounds ....................................................... 20 7Selecting the Main or Sub Channel ...................................... 21 7Setting for Easy and Effective Surround Operations ............ 21 7Setting the Digital Input Terminals ...................................... 22 7Setting the Component Video Input ..................................... 22 This mark indicates that ONLY the remote control CAN be used for the operation explained. Remote NOT This mark indicates that the remote control CANNOT be used for the operation explained. Use the buttons and controls on the front panel. 01-10_5040&6040[J]f.p6503.12.18, 15:20 1
Page 18
17 To tune in a preset station On the fr ont panel: 1 Select the band (FM or AM). -For RX-6040B/RX-6042S: Press FM or AM. -For RX-5040B/RX-5042S/RX-5045B: Press FM/AM. Each time you press the button, the band alternates between FM and AM. 2 Press FM/AM PRESET 5 or ∞ until you find the channel you want. - Pressing FM/AM PRESET 5 increases the number. - Pressing FM/AM PRESET ∞ decreases the number. On the r emote contr ol: 1 Press FM/AM to select the band. The last received station of the selected band is tuned in. - Each time you press the button, the band alternates between FM and AM. 2 Press the 10 keys to select a preset channel number. - For channel number 5, press 5. - For channel number 15, press +10 then 5. - For channel number 20, press +10 then 10. - For channel number 30, press +10, +10, then 10. Note: When you use the 10 keys on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page 33.) Selecting the FM Reception Mode When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast. - You can store the FM reception mode for each preset station (see page 16). While listening to an FM station, press FM MODE. - Each time you press the button, the FM reception mode alternates between AUTO MUTING and MODE MONO. AUTO MUTING:Normally select this. When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display. (Initial setting) MODE MONO:Select this to improve the reception (but stereo effect will be lost). In this mode, you will hear noise while tuning in to the stations. The AUTO MUTING indicator goes off from the display (the STEREO indicator goes off). Note: After you operate any source other than the tuner using the remote control, the FM MODE button on the remote control does not work. In this case, press FM/AM on the remote control, then press FM MODE. CD- DISC REC PAUSE 1 4 7 10 2 5 83 6 9 10 REWFF TA/NEWS/INFO FM/AM TUNED STEREO AUTO MUTING AUTO MUTING MODE MONO 16-17_5040&6040[J]f.p6503.12.20, 15:48 17
