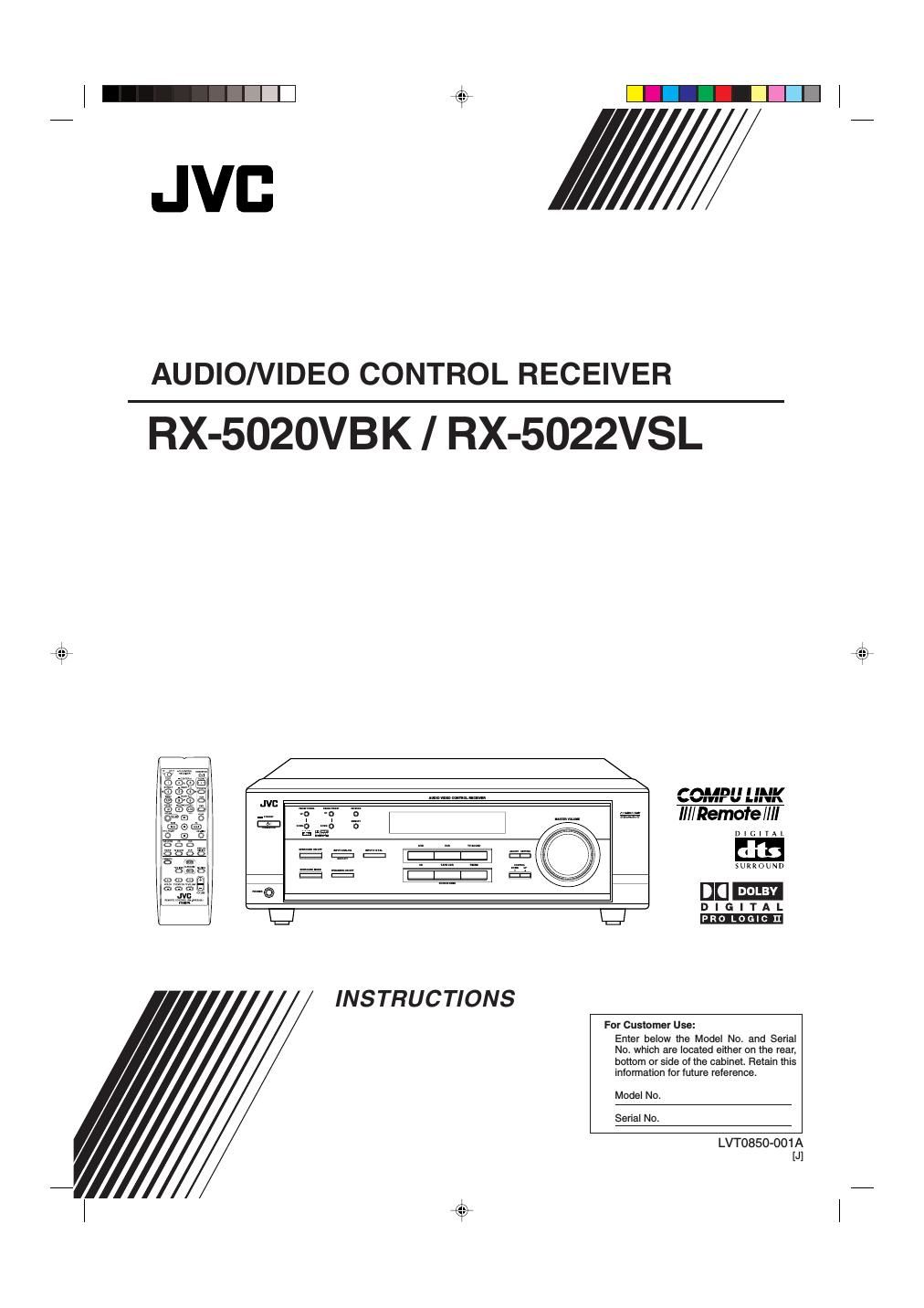

Jvc RX 5022 VSL Owners Manual
This is the 72 pages manual for Jvc RX 5022 VSL Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RX 5022 VSL Owners Manual (Ocr-read)
Page 1
Caution: Proper Ventilation To avoid risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back. Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated. Attention: Ventilation Correcte Pour éviter les chocs électriques, lincendie et tout autre dé\ gât. Disposer lappareil en tenant compte des impératifs suivants Avant: Rien ne doit gêner le dégagement Flancs: Laisser 10 cm de dégagement latéral Dessus: Laisser 10 cm de dégagement supérieur Arrière: Laisser 15 cm de dégagement arrière Dessous: Rien ne doit obstruer par dessous; poser lappareil sur unesurface plate. Veiller également à ce que lair circule le mieux possible comm\ e illustré. Floor Plancher Stand height 15 cm or more Hauteur du socle: 15 cm ou plus Front Avant Spacing 15 cm or more Dégagement de 15 cm ou plus Wall or obstructions Mur, ou obstruction CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION Caution –– STANDBY/ON button! Disconnect the mains plug to shut the power off completely. The STANDBY/ON button in any position does not disconnect the mains line. The power can be remote controlled. Attention –– Commutateur STANDBY/ON ! Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé. CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. ATTENTION Afin déviter tout risque délectrocution, dincendie, etc.: 1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir lecoffret de lappareil. 2. Ne pas exposer l appareil à la pluie ni à lhumidité. Warnings, Cautions and Others/ Mises en garde, précautions et indications diverses RX-5020VBK RX-5022VSL WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. For the main unit:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does caus\ e harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the manufacturer for compliance could void the user s authority to operate the equipment. For Canada/pour le Canada CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND For Canada/pour Le Canada THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED DIGITAL APPARATUS, ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; APPAREILS NUMERIQUES, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.
Page 2
1 Table of Contents Parts Identification ...................................... 2 Getting Started ........................................... 3 Before Installation ...................................................................... 3 Checking the Supplied Accessories ........................................... 3 Putting Batteries in the Remote Control .................................... 3 Connecting the FM and AM Antennas ....................................... 4 Connecting the Speakers ............................................................ 5 Connecting Audio/Video Components ....................................... 6 Connecting the Power Cord ....................................................... 7 Basic Operations ......................................... 8 Turning On the Power ................................................................ 8 Selecting the Source to Play ....................................................... 8 Adjusting the Volume ................................................................. 9 Listening Only with Headphones ............................................... 9 Turning Off the Sounds Temporarily-Muting ........................ 10 Turning Off the Power with the Sleep Timer ........................... 10 Basic Settings ........................................... 11 Setting the Digital Input (DIGITAL IN) Terminals ................. 11 Selecting the Analog or Digital Input Mode ............................ 11 Setting the Speaker Information ............................................... 12 Sound Adjustments .................................... 15 Attenuating the Input Signal .................................................... 15 Adjusting the Front Speakers Output Balance ......................... 15 Adjusting the Tone ................................................................... 15 Adjusting the Subwoofer Output Level .................................... 15 Tuner Operations ....................................... 16 Tuning in Stations Manually .................................................... 16 Using Preset Tuning ................................................................. 16 Selecting the FM Reception Mode ........................................... 17 Creating Realistic Sound Fields ................... 18 About Relations between Speaker Layout andSurround Modes ................................................................. 20 Using Dolby Pro Logic II, Dolby Digital and DTS Digital Surround ........................................................ 21 Using DAP Modes and All Channel Stereo ............................. 23 COMPU LINK Remote Control System ......... 24 Operating JVC's Audio/Video Components .......................................... 25 Operating Audio Components .................................................. 25 Operating Video Components .................................................. 27 Operating Other Manufacturers' VideoEquipment ............................................ 28 Troubleshooting ......................................... 30 Specifications ............................................ 31 This mark indicates that the remote control CANNOT be used for the operation explained. Use buttons on the front panel. This mark indicates that the remote control CAN ONLY be used for the operation explained. Remote ONLY Table of Contents Remote NOT
Page 42
4 English Connecting the FM and AM Antennas AM antenna connection Connect the AM loop antenna supplied to the AM LOOP terminals. Turn the loop until you have the best reception. -If the reception is poor, connect an outdoor single vinyl- covered wire (not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.) Notes: - If the AM loop antenna wire is covered with vinyl, remove the vinyl while twisting it as shown to theright. - Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord.This could cause poor reception. Getting Started FM antenna connection Connect the supplied FM antenna to the FM 75 Ω COAXIAL terminal as temporary measure. Extend the supplied FM antenna horizontally. - If the reception is poor, connect an outdoor FM antenna (not supplied). Before attaching a 75 Ω coaxial cable (with a standard type connector), disconnect the supplied FM antenna. D G TAL 1 DVD) D G TAL 2 ( CD ) C D DVD DVD M 75OA IAL COM PU LINK 4 SYNCHRO) M ON TOR OUT NTENNA TV SOU ND UBWOOF R OUT AUD O VID O AUD O OUT ( EC) RI HT L FT AM R G L F TAPE / DRN PL Y) OUT (REC) OUT REC) VCRN (PLA Y) VCRN (PLA Y D G TAL IN CENTERS EAKER RE R S PEA ERSR G T LE T FRONT S PEA ERSI HT E T CAU ION SPE KER MPEDANC8 16 + + + + 123 AM LOOP FM 75 COAXIAL AM EXT ANTENNA FM 75 CO AX AL FM 75 CO AX AL or Supplied FM antenna Standard type outdoor FM antenna (not supplied) Outdoor FM antenna (not supplied) If FM reception is poor, connect outdoor FM antenna. Extend the supplied FM antenna horizontally.FM antenna (supplied) AM Loop Antenna (supplied) Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna. If AM reception is poor, connect outdoor single vinyl-covered wire (not supplied).
Page 60
22 English Creating Realistic Sound Fields 3 Adjust the speaker output levels. 1) Press ADJUST repeatedly until one of the following indications (with the current setting)* appears on the display. CENTER : To adjust the center speaker output level (–10 to +10). REAR L : To adjust the left rear speaker output level (–10 to +10). REAR R : To adjust the right rear speaker output level (–10 to +10). * 0 is the initial setting. If you have already changed the setting, another number (level) will be shown. 2) Press CONTROL UP 5/ DOWN ∞ to adjust the selected speaker output level. 3) Repeat steps 1) and 2) to adjust the other speaker levels. When you select PL II MUSIC, you can go to the following adjustment. 4 Turn on Panorama control or off. 1) Press ADJUST repeatedly until PANORAMA (with the current setting)* appears on the display. *OFF is the initial setting. If you have already changed the setting, ON will be shown. 2) Press CONTROL UP 5/ DOWN ∞ to select if you turn on or off Panorama control. - Each time you press the button, ON and OFF change alternately. ON : Select this when you like to enjoy wraparound sound effect with side-wall image. OFF : Select this when you like to enjoy originally recorded sounds. To cancel Sur round mode Press SURROUND ON/OFF again so that SURROUND OFF appears on the display. - If Surround mode is canceled while playing back multichannel digital software, all channel signals are mixed and output through the front speakers (and subwoofer, if you have connected a subwoofer and set the subwoofer setting correctly-YES). ADJUST 3 Press SOUND. The 10 keys are activated for sound adjustments. 4 Press TEST to check if you can hear the sounds through all the speakers at the equal level. TEST TONE L starts flashing on the display, and a test tone comes out of the speakers in the following order: Notes: - You can adjust the speaker output levels without outputting the test tone. - No test tone comes out of the center speaker when CNTR SP is set to NONE. - No test tone comes out of the rear speakers when REAR SP is set to NONE. 5 Adjust the speaker output levels (–10 to +10). Adjust the center speaker and rear speakers levels comparing to the sound from the front speakers.- To adjust the center speaker level, press CENTER +/–. - To adjust the left rear speaker level, press REAR-L +/–. - To adjust the right rear speaker level, press REAR-R +/–. 6 Press TEST again to stop the test tone. On the front panel: You can also use the buttons on the front panel to adjust the Surround modes. However, no test tone is available when using the buttons on the front panel. So make adjustments while listening to the sound of the source played back. 1 Setting the analog or digital input mode for the source you like to listen and start playing. When playing back software encoded with Dolby Digital and DTS Digital Surround, select the digital input mode (see page 11). 2 Press SURROUND ON/OFF to activate Surround mode. Each time you press the button, Surround mode turns on and off alternately. - If you are playing back software encoded with Dolby Digital multichannel, DOLBY DIGITAL is selected. - If you are playing back software encoded with DTS Digital Surround, DTS SURROUND is selected. - If you are playing back any software other than above, you can select PL II MUSIC or PL II MOVIE according to the source by pressing SURROUND MODE. ( PRO LOGIC II indicator lights up on the display.) If you like to adjust sound, go to step 3. TEST1 REAR R 8 9 CENTER2 3 REAR L 56 CONTROL DOWN UP Remote NOT ADJUST CONTROL DOWN UP TEST TONE L(Left front speaker) TEST TONE LS(Left rear speaker) TEST TONE RS(Right rear speaker) TEST TONE C(Center speaker) TEST TONE R(Right front speaker) TEST1 SOUND SURROUND ON/OFF SURROUND MODE
