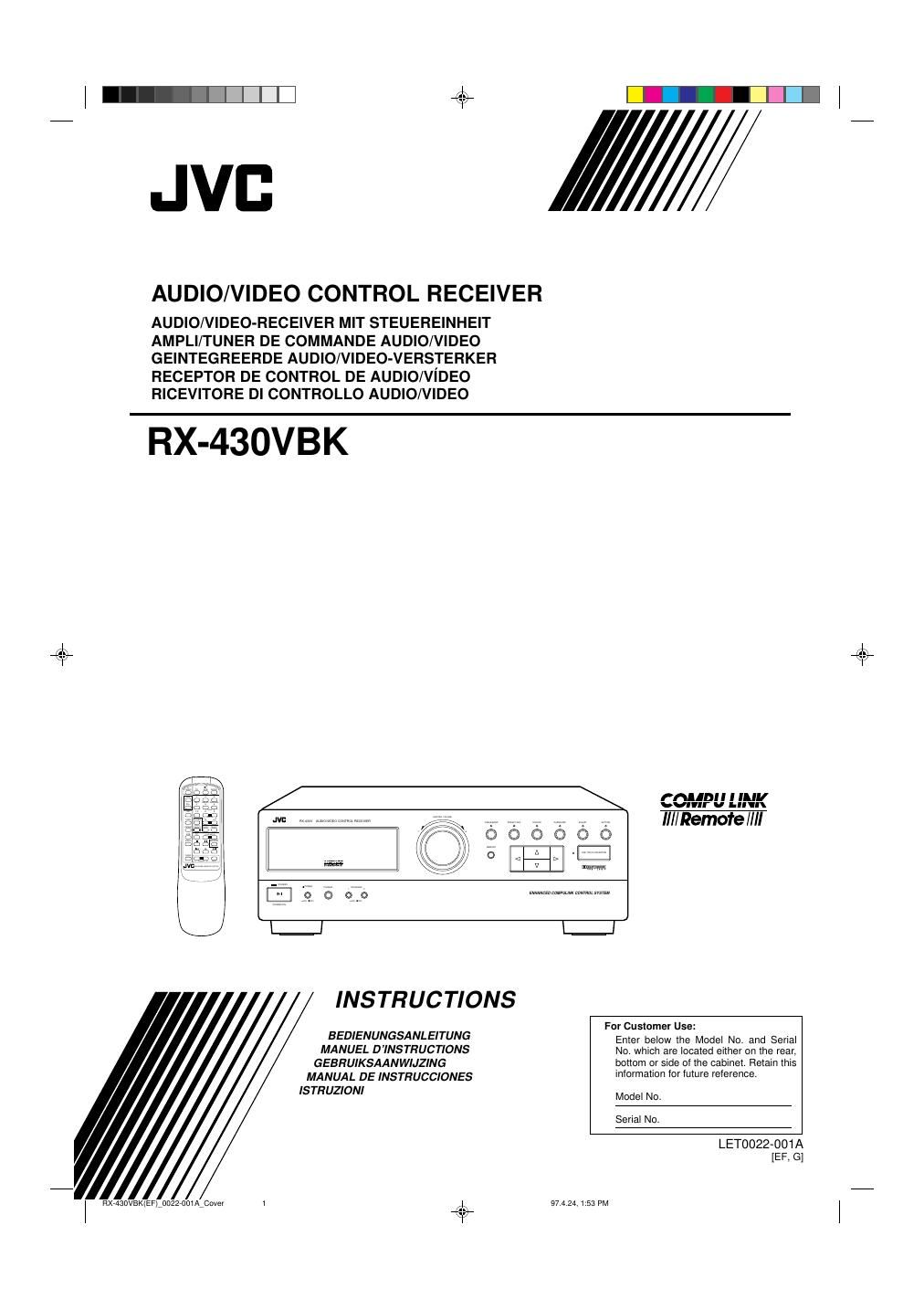

Jvc RX 430 VBK Owners Manual

Page 1

.JVI: //

AUDIO/VIDEO CONTROL RECEIVER

AUDIO/VIDEO-RECEIVER MIT STEUEREINHEIT
AMPLI/TUNER DE COMMANDE AUDIO/VIDEO
GEINTEGREERDE AUDIO/VIDEO-VERSTERKER
RECEPTOR DE CONTROL DE AUDIO/ViDEO
RICEVITORE DI CONTROLLO AUDIO/VIDEO

RX-430VBK

(MIDI. I II",
\onI

i .9 III/Réirnéig/iil
L_I

For Customer Use:
BEDIENUNGSANLEITUNG Enter below the Model No. and Serial
MANUEL DINSTRUCTIONS No. which are located either on the rear,
GEBRUIKSAANWIJZING bottom or side of the cabinet. Retain this
MANUAL DE INSTRUCCIONES information for future reierence.
ISTRUZIONI Model No.
Serial No.
LET0022-001 A
[EF, G]
1

RX7430VBK(EF)70022700IAicover 97.4.24 1 53 PM

Page 2

l -ijj a? :i iii

Warnings, Cautions and Others/Warnung, Achtung und sonstige Hinweise/
Mises en garde, précautions et indications diverses/Waarschuwingen,
voorzorgen en andere mededelingen/Avisos, precauciones y otras notas/
Avvertenze e precauzioni da osservare

IMPORTANT for the UK.

DO NOT cut off the mains plug from this equipment. If the plug
fitted is not suitable for the power points in your home or the cable
is too short to reach a power point, then obtain an appropriate
safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type,
as originally fitted.

lf nonetheless the mains plug is cut off ensure to remove the fuse
and dispose of the plug immediately, to avoid a possible shock
hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow
the instructions given below:
IMPORTANT.
DO NOT make any connection to the terminal which is marked with
the letter E or by the safety earth symbol or coloured green or
green-and-yellow.
The wires in the mains lead on this product are coloured in
accordance with the following code:

Blue : Neutral

Brown : Live
As these colours may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

Per lltalia:

Si dichiara che il questo prodotto di marca JVC é conforme
alle prescrizioni del Decreto Ministeriale n.548 del 28/08/95
pubblicato sulla Gazzetta Ufficlale della Repubblica ltallana
n.301 del 28/12/95."

G-1

HX7430VBK(EF)700227001AiGrPage I 4? 97.4.24, 1:59 PM
