Jvc RX 416 VBK Service Manual

Page 1

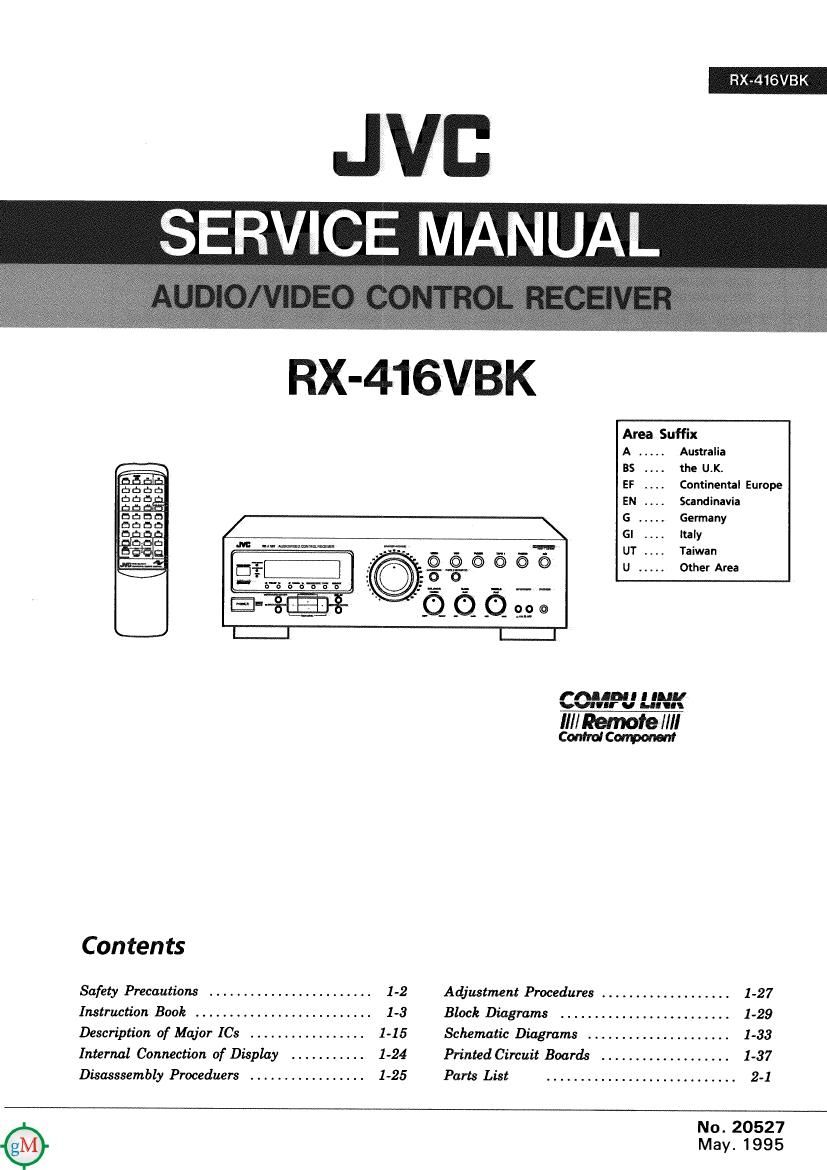

RX-416VBK

SERVICE MANUAL _

RX-416EVBK

Area Suffix
A ..... Australia
BS . . . . the U.K.

)

EF . . . . Continental Europe
55] EN Scandinavia

g g g g G ..... Germany

a - - - GI . . . . italy

IEQEE UT . . . . Taiwan

m U ..... Other Area

Phil!!! 1 all!
now-r0 nun

III/Remotellll

WW~
Contents
Safety Precautions ........................ 1-2 Adjustment Procedures ................... 1-27
Instruction Book ............ 1-3 Block Diagrams ......................... 1-29
Description of Major ICs ............. 1-15 Schematic Diagrams ..................... 1-33
Inteer Connection of Display ........... 1-24 Printed Circuit Boards ................... 1-37
Disasssembly Proceduers ................. 1-25 Parts List ............................ 2-1

NO. 20527
May. 1995

Page 2

http : //getMANUAL . com

RX-416VBK

-- Safety Precautions

1.The design of this product contains special hardware and many circuits and components
specially for safety purposes. For continued protection, no changes should be made to the
original design unless authorized in writing by the manufacturer. Replacement parts must
be identical to those used in the original circuits. Services should be performed by
qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design

alterations of the product should not be made. Any design alterations or additions will
void the manufacturers warranty and will further relieve the manufacture of responsibility
for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related

characteristics. These characteristics are often not evident from visual inspection nor can
the protection afforded by them necessarily be obtained by using replacement component:
rated for higher voltage, wattage, etc. Replacement parts which have these special safety
characteristics are identified in the Parts List of Service Manual. Electrical components
having such features are identified by shading on the schematics and by (A) on the Parts
List in the Service Manual. The use of a substitute repalcement which does not have the
same safety characteristics as the recommended replacement parts shown in the Parts List of
Service Manual may create shock, fire, or other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and

the like to be separated from live parts, high temperature parts, moving parts and/or sharp
edges for the prevention of electric shock and fire hazard. When service is required, the
original lead routing and dress should be observed, and it should be confirmed that they
have been returned to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)
After re~assemb|ing the product, always perform an isolation check on the exposed metal
parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack,
contorl shafts, etc.) to be sure the product is safe to operate without danger of electrical
shock.
Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly. into the AC outlet. Using a Leakage Current Tester",
measure the leakage current from each exposed metal parts of the cabinet, particularly
any exposed metal part having a return path to the chassis, to a known good earth
ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

0 Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000
ohms per volt or more sensitivity in the following manner. Connect a 1.5009 10 W
resistor paralleled by a 0.15 pF AC-type capacitor between an exposed metal part and a
known good earth ground.

Jaw

Measure the AC voltage across the resistor a (fixggnhggofik
With the AC voltmeter. ohms/volts, _ . _
Move the resistor connection to each exposed A °_ °" "°'9 *"5'tV'W-i
metal part, particularly any exposed metal part
having a return path to the chassis, and 0151.; AC TYPE
meausre the AC voltage across the resistor. -fl-
Now. reverse the plug in the AC outlet and fifth
repeat each measurement. Any voltage -.-. 23,1:th
measured must not exceed 0.75VAC (r.m.s.). 15°0910W metal part.
This corresponds to 0.5 mA AC (r.m.s.). Good earth ground

mWarning

. This equipment has been designed and manufactured to meet international safety standards.

. It is the legal responsibility of the repairer to ensure that these safety standards are
maintained.

. Repairs must be made in accordance with the relevant safety standards.
. It is essential that safety critical components are replaced by approved parts.
. If mains voltage selector is provided, check setting for local voltage.

1-2

Page 21

RX-416VBK

I LA1836M(|C102) '. FM AM IF AMP&detector, FM MPX DECORDER

1. Terminal Layout

2. Block Diagram

30

29

3. Pin Function

osc BUFFER Pm Symbol l/O Function
AM as: N°
AK 1 FM IN | This is an input terminal of FM IF Signal.
AM RF 2 AM MIX 0 This is an output terminal for AM mixer.
2:35: 3 FM (F I Bypass of FM IF
onour 4 REG ~ Register value between pin4 and pin28 desides the
vco frequency width of the input signal.
:33, 5 AM IF I Input of AM IF Signal.
Mpxom 6 GND --- This is the device ground terminal.
RIN 7 SIG 0 When the set is tunning ,this terminal becomes 'L.
:IgUT 8 STIAM IF 0 Stereo indicator output. Stereo: 'L, Mono: "H
mm 9 FM DET - FM detect transformer.
10 VCC - This is the power supply terminal.
11 FMIAM IF on When the signal of IF REQ of IC121(LC7218JM) appear,
IIMUTE the signal of FMIAM IF output. llMuting control input.
12 VSM O 5 Meter output and adjust AM SD sensitivity.
13 AM C.F. O This is a terminal of AM ceramic filter.
14 FMIAM l Change over the FMIAM input. 'H" : FM, L" :AM
15 MONO/ST 0 Stereo: 'H', Mono : "L"
16 LOUT 0 Left channel signal output.
17 ROUT 0 Right channel signal output
18 LIN | Input terminal of the Left channel post AMP.
19 RIN | Input terminal of the Right channel post AMP.
20 MPXLOUT O Mpx Left channel signal output.
21 MPXROUT O Mpx Right channel signal output.
22 MPX IN | Mpx input terminal.
23 VCO l Voltage'controlled oscillator terminal.
24 DET OUT 0 AM/FM detection output.
25 AM DET - AM low cut adjustment.
26 AM AGC | This is an AGC voltage input terminal for AM.
27 AM RF I This is an input terminal for AM RF signal.
28 AFC - This is an output terminal of voltage for FM-AFC.
29 AM OSC - This is a terminal of AM Local oscillation circuit.
30 OSC BUFFER 0 AM Local oscillation Signal output.

TUNING DRIVE

DECODER
ANTI BIRDIE

STEREO DRNE

PHASE DEY

1-21
