.- RX-31 7TN

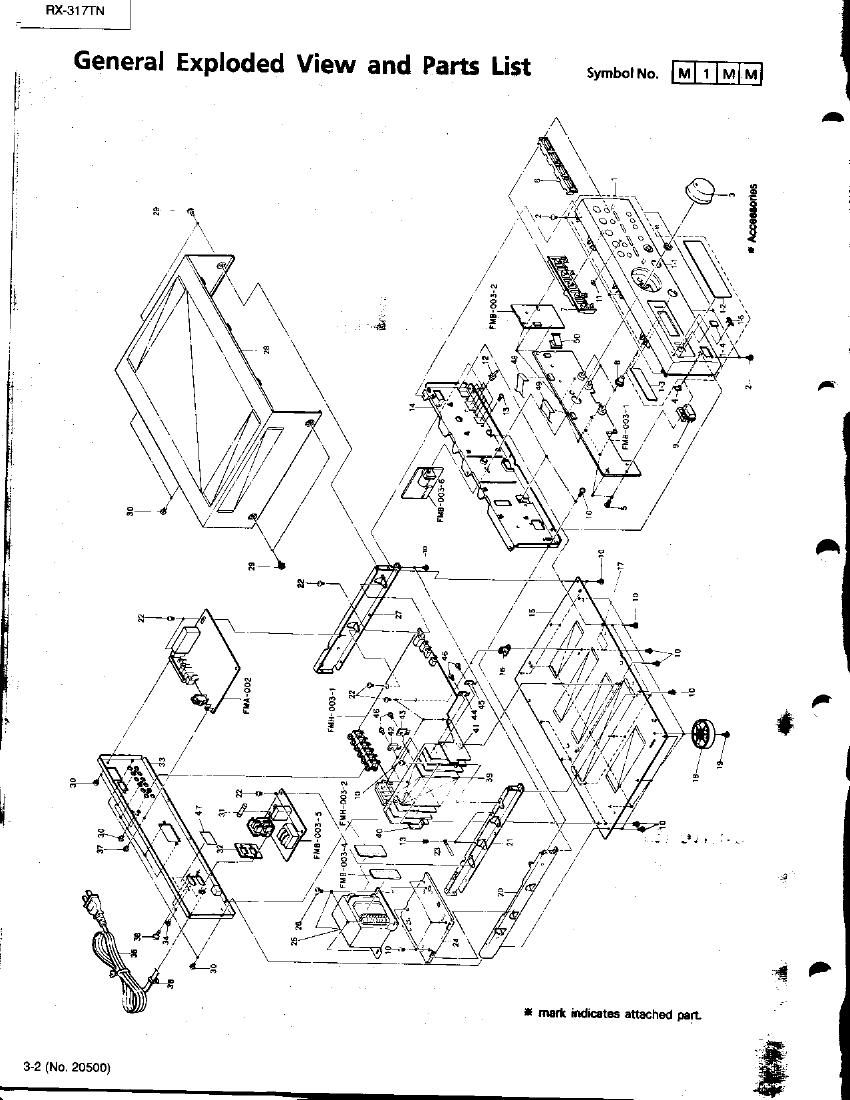

. General Exploded View and Parts List SymboINo. mnmm

i mark indicates attached part.

32 (No 20500) fi

Page 2

A

Symbol No.

Pa rts List
Afi Item Part Number Pan Name Q'Iy Description Area

1 EFP-RX317TN1<5) FRONT PANEL ASS 1

1~1 FMIc1oowoz FRONT PANEL 1

1-2 mazes-01.1w WINDOW SCREEN 1

1.3 E40732270015M FLOURESCENT DISPLSCREEN 1

1-4 572436-006 REMORT SCREEN 1

1-5 VJD5429-OD1 JVC MARK 1

2 SOSG300BM TAPPING SCREW 6

3 53091074102 VOLUME KNOB 1

A FMJKAOOSVOOI 1ND1CATOR LENs 1

5 SOSFzsuBz SCREW 9

s mezom-ooz PUSH BUTTON 1

7 FMXP3W7-002 PUSH BUTTON 1

B FMXMMWOISM BALANCE KNOB 3

9 FMXPAW POWER BUTTON 1
10 585630082 TAPPING SCREW 23

11 FMJKaovom INDICATOR LENS 1

12 E407321<001SM PUSH BUTION a

13 SBSTaoosz TAPPING SCREW 6

14 FMKLIOO1-DOI FRONT BRACKET 1

15 E102371-0055M CHASSIS BASE 1

1s E68587-2225M BRACKET PLATE 1

17 570115-002 CAUTION LABEL 1
E70281-UOI CAUT1ON LABEL 1

1e VJF4039700E FOOT 4

19 535130101 TAPPING SCREW a

211 Ezosssmmsm SIDE BRACKET 1

21 Ezossss-ooASM CENTER BRACKET 1

22 $356 sooacc TAPPING SCREW 11

23 VKZaDOI-IHS WIRECLAMP 2

24 E2069597002$M TRANSFORMER BRACKET 1

A 25 FMTP1zoo-o11n1 POWER TRANSFORMER 1
26 EssaBS-ooz SPECIAL SCREW 4

27 E206957-001SM SIDE BRACKET 1

23 E206967-223 METAL COVER 1

25 51650004 SPECiAL SCREW 4
30 5115630081111 rAPPING SCREW 12

A 31 QMFooo7-SRBI1 FUSE 1
32 Esssss-oos SPACER 1

33 E207332-047SM REAR PANEL 1

34 SOSGaouaM TAPPING SCREW 2

A as QMP1480-2DDE POWER CORD 1
A 36 QH53876-162 CORD STOPPER 1
37 SBSTBDDGM TAPPING SCREW 1

38 93561003 SPECIAL SCREW 1

as FMMH3002-001 HEAT SINK 1

40 E307S74-OOISM HEAT SINK BRACKET 1

41 5307874-0025M HEAT SINK BRACKET 1

42 2531429L8

43 2502155LB(R,O) SLTRANSISTOR z

44 2502061F1E.F) SLTRANSISTOR 2

as 25311B7F1E,F) sI.TRANSISTOR 1

as 93525003 SCREW 7

41 CAUTION LABEL 1

565507-001

(No. 20500) 3«3
