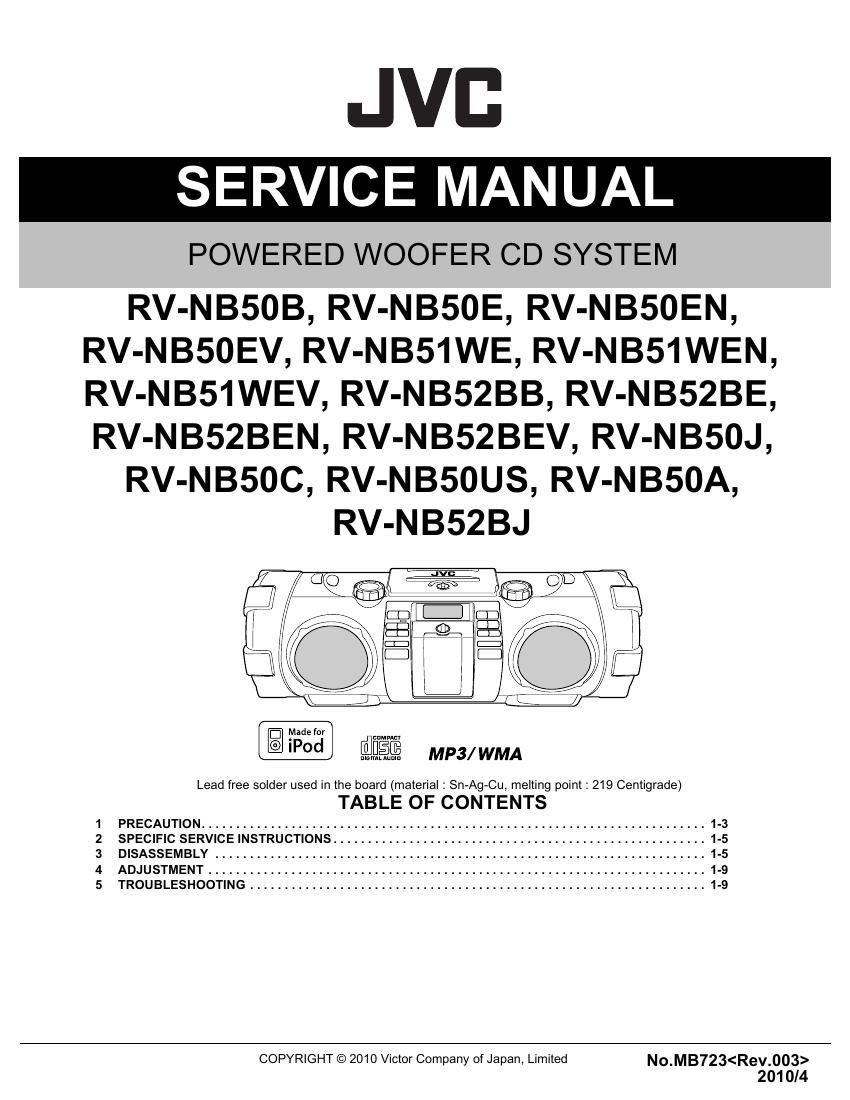

Jvc RVNB 50 B Service Manual
This is the 38 pages manual for Jvc RVNB 50 B Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RVNB 50 B Service Manual (Ocr-read)
Page 2
SPECIFICATION
Disc player
CD capacity 1CD
Signal-to-noise ratio 85 dB
Dynamic range 90 dB
Tuner
FM tuning range
8750 MHZ - 108.00 MHZ
Antenna FM telescopic antenna
General
Speakers Full range 8 cm (3 3/16") cone X 2
Speaker impedance 16 Q
Super woofer 13 cm (5 1/8") cone X 2
Speaker impedance 7 9
Output power 40 W
Input terminal USB Playable files MP3. WMA
Compatible device Mass storage class
Output power DC 5 V 500 mA
Dock for iPod DC 5 V 500 mA
DC IN DC 12 V
Output terminal
PHONES ((213.5) X 1
Power supply
AC 230 V , 50 Hz (Europe)
AC 120 V , 60 Hz (Northern America)
AC 240 V, 50 Hz (Australia)
AC 110 V - 240V , 50 HZ/SO HZ (Other area)
DC 15 V (R20 (SUM-1)/D (13D)-size batteries X10)
External DC 12 V (Car battery via the optional car adapter)
Power consumption When using an AC outlet 28 W (at operation)
1 W (on standby)
External DC 12 V 2 A (power on mode)
Dimensions 666 mm (26 1/4) x 231 mm (9 1/8) x 240 mm (9 1/2) (W/H/D)
Mass Approx. 6.8 kg (15.0 Ids) (without batteries stored in the battery compartment)
Designs & specifications are subject to change without notice.
1-2 (No.MB723
