Jvc RCEZ 35 Service Manual
This is the 26 pages manual for Jvc RCEZ 35 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RCEZ 35 Service Manual (Ocr-read)
Page 1

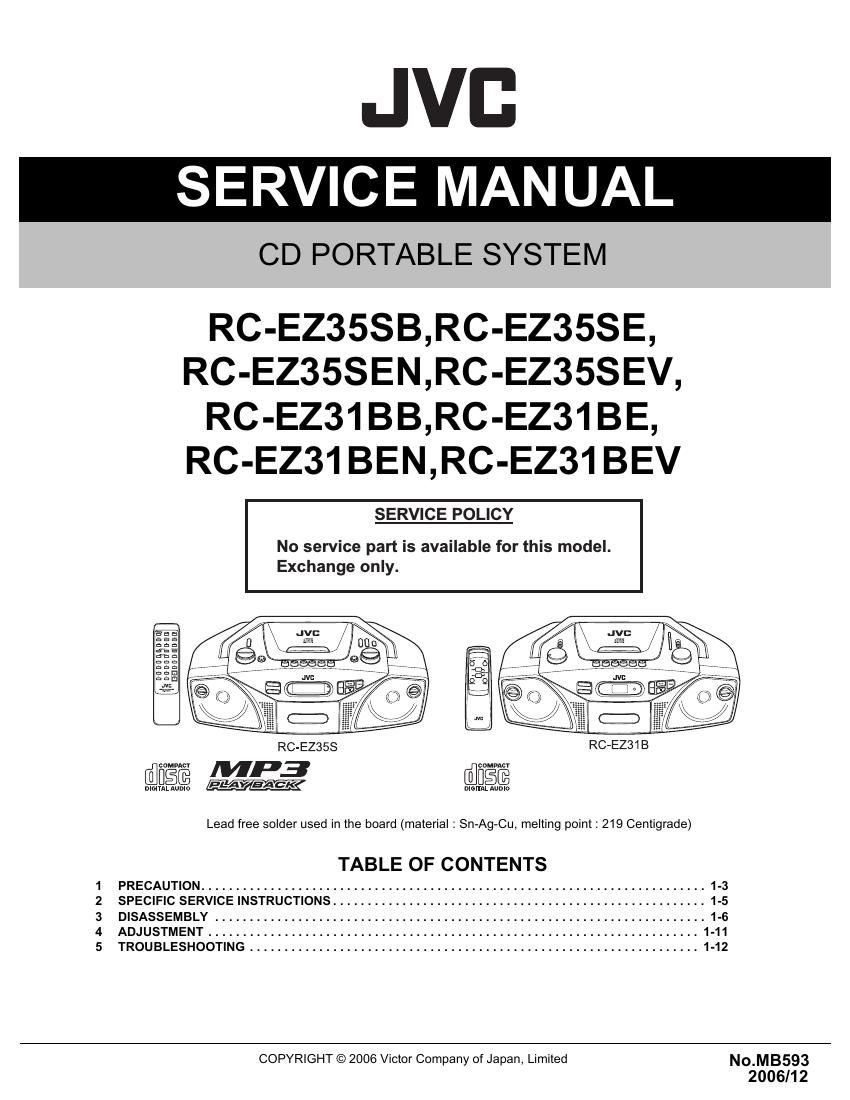

JVB
SERVICE MANUAL
CD PORTABLE SYSTEM
RC-EZ35SB,RC-EZ35SE,
RC-E235SEN,RC-EZ35SEV,
RC-EZ31 BB,RC-EZ31 BE,
RC-EZ31BEN,RC-E231BEV
SERVICE POLICY
No service part is available for this model.
Exchange only.
@D§@ {um-5% [Em
Lead free solder used in the board (material : Sn-Ag-Cu, melting point: 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-5
3 DISASSEMBLY ....................................................................... 1-6
4 ADJUSTMENT ....................................................................... 1-11
5 TROUBLESHOOTING ................................................................. 1-12
COPYRIGHT © 2006 Victor Company of Japan, Limited No_MB§93
2006/12
Page 2
RC-EZ35
SPECIFICATION
Compact disc player section
Type
Compact disc player
Signal detection
Non-contact optical pick-up (semicondicator Iazer)
Number of channels
2 channels
Radio section
Frequency ranges
FM 87.5 MHZ -108.0 MHZ
AM 522 kHZ - 1 629 kHZ
Antennas Telescopic antenna for FM
Ferrite core antenna for AM
Cassette deck section Track 4-track 2-channel stereo
Motor Electronic governor DC motor for capstan
Heads Hard permalloy head for recording/playback, magnetic head for erase
Fast wind time
Approx. 120 sec. (C-60 cassette)
General Speaker 10 cm X 2 (4 S2, 3 W)
Power output 4 W (2 W + 2 W) at 4 Q (10% THD) (IE0268-3)
Output terminals PHONES x 1 ((3 3.5 mm, stereo)
Power supply AC 230 V , 50 Hz
DC 12 V ("R20/D (13F)" cells x 8)
Power consumption 17 W (at operation)
1.5 W (at standby)
Dimentions 435 mm (W) X 156 mm (H) X 241 mm (D)
Mass Approx. 2.8 kg (without batteries)
RC-EZ31
Compact disc player section Type Compact disc player
Signal detection
Non-contact optical pick-up (semicondicator Iazer)
Number of channels
2 channels
Radio section
Frequency ranges
FM 88 MHZ - 108.0 MHZ
AM 530 kHZ - 1 600 kHZ
Antennas Telescopic antenna for FM
Ferrite core antenna for AM
Cassette deck section Track 4-track 2-channel stereo
Motor Electronic governor DC motor for capstan
Heads Hard permalloy head for recording/playback, magnetic head for erase
Fast wind time
Approx. 120 sec. (C-60 cassette)
General
Speaker
10cm><2(4$2,3W)
Power output
4 w (2 w + 2 W) at 4 o (10% THD) (IEczes-a)
Output terminals
PHONES x1 ((3 3.5 mm, stereo)
Power supply
Ac 230 v , 50 Hz
DC 12 v ("RZO/D (13F)" cells X a)
Power consumption
13 W (at operation)
15 W (at standby)
Dimentions
435 mm (W) x 156 mm (H) x 241 mm (D)
Mass
Approx. 2.8 kg (without batteries)
Design and specifications are subject to change without notice.
1-2 (NoMBSQS)
