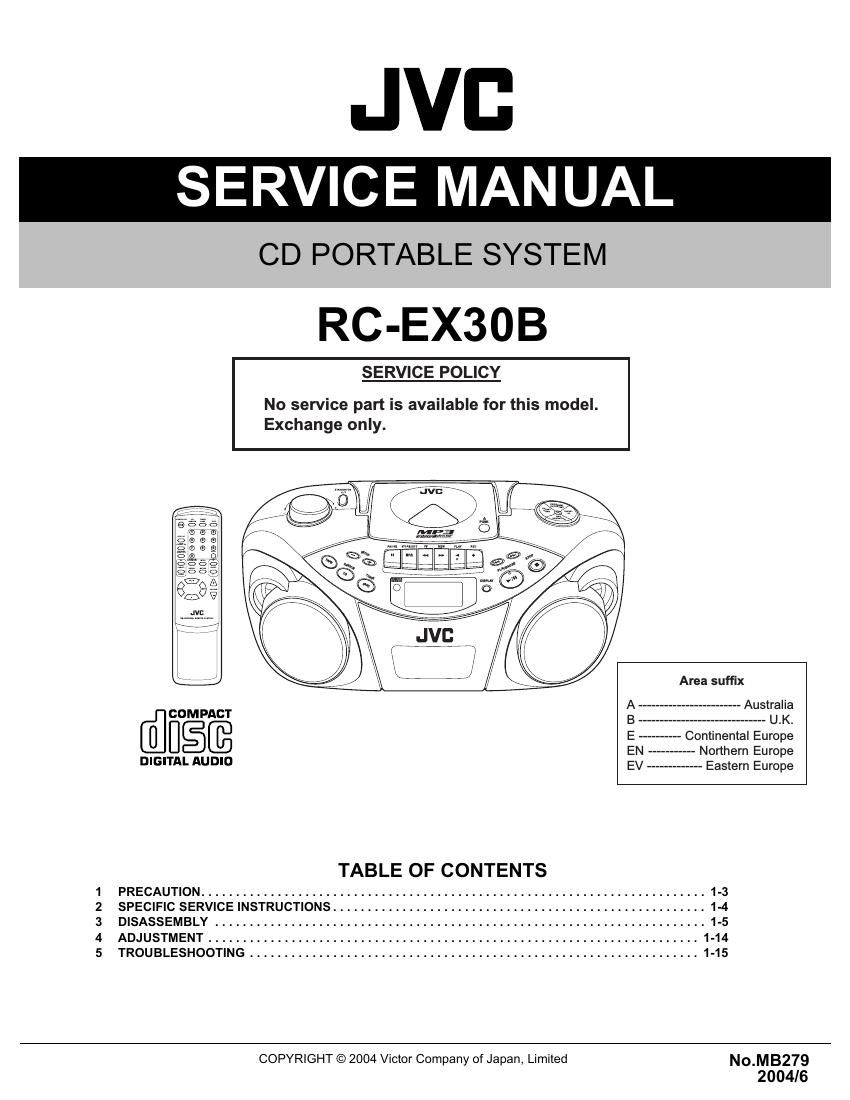

Jvc RCEX 30 B Service Manual
This is the 28 pages manual for Jvc RCEX 30 B Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RCEX 30 B Service Manual (Ocr-read)
Page 1
1-2 (No.MB279) SPECIFICATION Design and specifications are subject to change without notice. CD player CD capacity 1 CD Signal-to-noise ratio 75 dB Dynamic range 60 dB Tuner Frequency range FM 87.5 - 108.0 MHz AM 522 - 1 629 kHz Antennas Telescopic antenna for FM Ferrite core antenna for AM Cassette deck Frequency response 60 Hz - 10 000 Hz Wow & flutter 0.15% (WRMS) Fast wind time Approx. 150 sec. (C-60 cassette) General Speakers 9 cm cone × 2 Speaker impedance 4 Ω Output power 4 W (2 W + 2 W) at 4 Ω (10% THD) Output terminals PHONES × 1 Power supply AC 230 V , 50 Hz DC 9 V (R20 (SUM-1)/D (13D)-size batteries × 6) Power consumption 18 W (at operation) 3 W (on standby) Dimensions 420 mm × 178 mm × 250 mm (W/H/D) Mass Approx. 3.2 kg (without batteries)
Page 2
(No.MB279)1-3 SECTION 1 PRECAUTION This service manual does not describe PRECAUTION.
