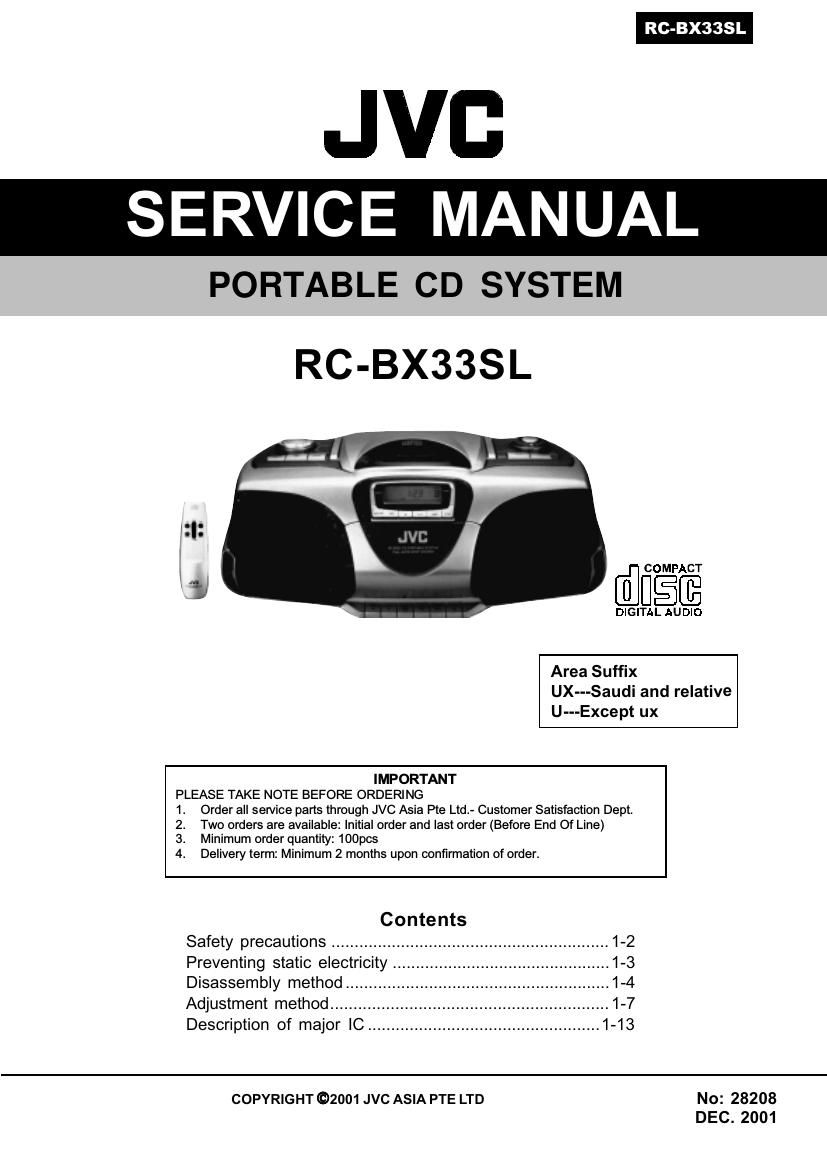

Jvc RCBX 33 SL Service Manual
This is the 23 pages manual for Jvc RCBX 33 SL Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RCBX 33 SL Service Manual (Ocr-read)
Page 1
XL-SV320SL/SV305GDXL-SV308BU 1-2 RC-BX33SL 1 . This design of this product contains special hardware and many circuits \ and components specially for safety purposes. For continued protection, no changes should be made to the ori\ ginal design unless authorised in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel o\ nly. 2 . Alterations of the design or circuitry of the product should not be made\ . Any design alterations of the product should not be made. Any design alterations or additions will voi\ d the manufacturers warranty and will further relieve the manufacture of responsibility for personal \ injury or property damage resulting therefrom. 3. Many electrical and mechanical parts in the products have special safety\ -related characteristics. These characteristics are often not evident from visual inspection nor can the\ protection afforded by them necessarily be obtained by using replacement components rated for h\ igher voltage, the Parts List of Service Manual. Electrical components having such features are i\ dentified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety characteristics as the recommended r\ eplacement parts shown in the Parts List of Service Manual may create shock, fire, or other haz\ ards. 4. The leads in the products are routed and dressed with ties, clamps, tubi\ ngs, barriers and the like to be separated from live parts, high temperature parts, moving parts and/o\ r sharp edges for the prevention of electric shock and fire hazard. When service is required, the origina\ l lead routing and dress should be observed, and it should be confirmed that they have been returned to \ normal, after re-assembling. 5. Leakage current check (Electrical Shock hazard testing) After re-assembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphon\ e jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical s\ hock. Do not use a line isolation transformer during this check. - Plug the AC line cord directly into the AC outlet. Using a Leakage C\ urrent Tester, measure the leakage current from each exposed metal parts of the cabinet, particular\ ly and exposed metal part having a return path to the chassis, to a known good earth ground. \ Any leakage current must not exceed 0.5mA AC (r.m.s.) - Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter h\ aving, 1,000 ohms per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a Warning 1. This equipment has been designed and manufactured to meet internation\ al safety standards. 2. It is the legal responsibility of the repairer to ensure that these s\ afety standards are maintained. 3. Repairs must be made in accordance with the relevant safety standards\ . 4. It is essential that safety critical components are replaced by appro\ ved parts. 5. If mains voltage selector is provided, check setting for local voltag\ e. 0.15µF AC-type capacitor between an exposed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC voltmeter.Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. voltage measured Any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). Safety precautions 0.15µF AC TYPE 1500 10W Place this probe on each exposed metal part. Good earth ground AC Voltmeter (Having 1000 ohms/volts, or more sensitivity ! CAUTION Burrs formed during moulding may be left over on some par\ ts of the chassis. Therefore, pay attention to such burrs in the case of perfor\ ming repair of this system.
Page 2
RC-BX33SL 1-3 Preventing static electricity Electrostatic discharge (ESD), which occurs when static electricity st\ ored in the body, fabric, etc. is dis- charged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs. 1.1. Grounding to prevent damage by static electricity Static electricity in the work area can destroy the optical pickup (las\ er diode) in devices such as DVD players. Be careful to use proper grounding in the area where repairs are being p\ erformed. 1.1.1. Ground the workbench 1. Ground the workbench by laying conductive material (such as a conduc\ tive sheet) or an iron plate overit before placing the traverse unit (optical pickup) on it. 1.1.2. Ground yourself 1. Use an anti-static wrist strap to release any static electricity buil\ t up in your body. 1.1.3. Handling the optical pickup 1 . In order to maintain quality during transport and before installation, b\ oth sides of the laser diode on thereplacement optical pickup are shorted. After replacement, return the sh\ orted parts to their original condition. (Refer to the text.) 2 . Do not use a tester to check the condition of the laser diode in the opt\ ical pickup. The testers internal power source can easily destroy the laser diode. 1.2. Handling the traverse unit (optical pickup) 1. Do not subject the traverse unit (optical pickup) to strong shocks,\ as it is a sensitive, complex unit. 2 . Cut off the shorted part of the flexible cable using nippers, etc. after\ replacing the optical pickup. For spe-cific details, refer to the replacement procedure in the text. Remove the anti\ -static pin when replacing the traverse unit. Be careful not to take too long a time when attaching it to the co\ nnector. 3 . Handle the flexible cable carefully as it may break when subjected to st\ rong force. 4 . It is not possible to adjust the semi-fixed resistor that adjusts the la\ ser power. Do not turn it. Conductive material (conductive sheet) or iron plate (caption) Anti-static wrist strap
