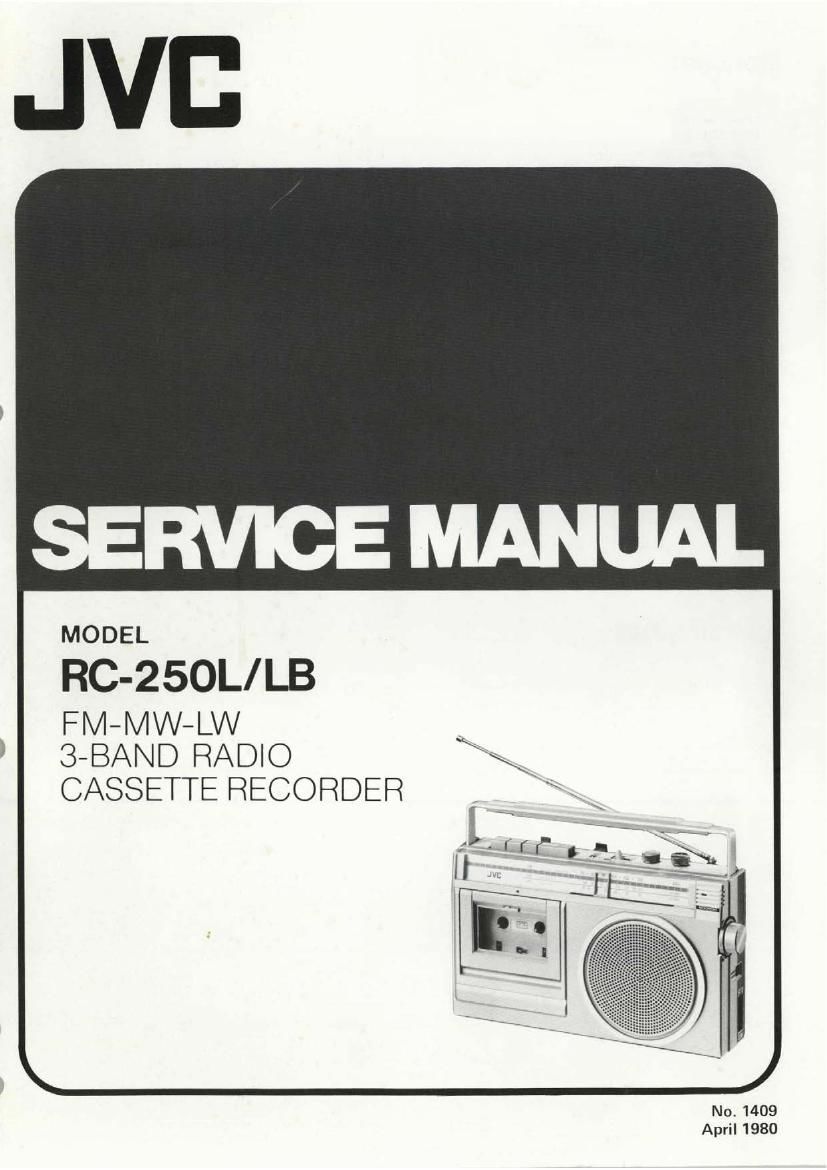

Jvc RC 250 Service Manual
This is the 20 pages manual for Jvc RC 250 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RC 250 Service Manual (Ocr-read)
Page 2
RC<250L/LB
Contents
Page
Specifications .................................................................... 2
Main Parts Location ................................................................ 3
Disassembly & Replacement ........................................................... 4
Tuner Alignment ................................................................. 5, 6
Adjustment of Cassette Mechanism ..................................................... 6, 7
Block Diagram ................................................................... 8
Wiring Connection ................................................................ 9
Schematic Diagram of RC-250L/LB .................................................... 10
Switch Circuit Board Ass'y ........................................................... 11
Main Circuit Board Ass'y .......................................................... 12, 13
Exploded View of Cassette Mechanism ................................................... 14
List of Cassette Mechanism ........................................................... 15
Exploded View of Main Circuit Board Ass'y ............................................... 16
Exploded View of Rear Cabinet ....................................................... 16
Exploded View of Front Cabinet (1) .................................................... 17
Exploded View of Front Cabinet (2) .............................................. . 18, 19
Final Packing Ass'y (RC-250L) ........................................................ 20
Accessories (RC-250M ............................................................. 20
Final Packing Assy (RC-250LB) ....................................................... 21
Accessories (RC-250 LB) ............................................................ 21
Specuflcation
DIMENSIONS: 29.8 chW) x 18 chH) x 8.2 cm(D) WEIGHT: Approx. 22 kg/4,8 lbs (with batteries)
11-3/4" (W) X 7-1/8" (H) X 3*1/4" (D) 1.9 kg/4.2 lbs (without batteries)
TUNER SECTION AMPLIFIER SECTION _
Frequency Ranges : FM 88 ~ 108 MHz Speakers :9 cm (3%"), 3.2 32
MW 540 ~ 1600 kHz Power Output : Max. 1.3 W
LW 50 " 350 KHZ POWER SOURCE
Antennas : FM; ROd antenna DC : 6 V, 4 R20-cells or equivalent
MW/LW;Ferrite core antenna AC : 240/220/110 V, 50/60 Hz
RECORDER SECT'ON POWER CONSUMPTION :4 w
Tape Speed : 4.8 cm/s (1-7/8 ips)
Track System : 2-track monaural
Recording System : DC bias
Erasing System : DC erasmg
Fast Forward Time : Within 110 sec (060 cassette)
Rewmd Time : Within 110 sec ((2-60 cassette)
Wow 84 Flutter : 0.15% (WRMS)
No. 1409
