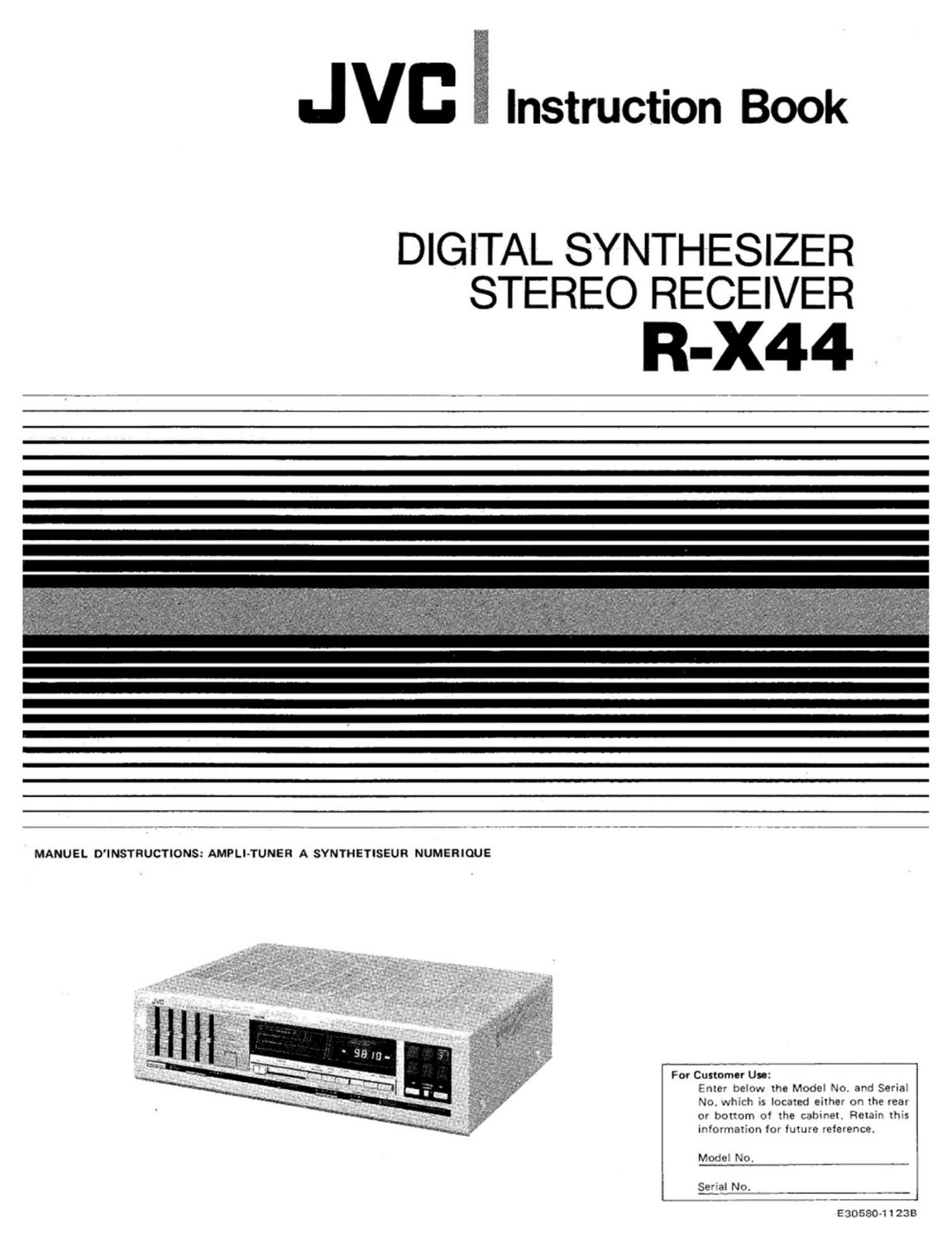

JVC

Instruction Book

DIGITAL SYNTHESIZER
STEREO RECEIVER

R-X44

l
I
0

. 7".
it: .

L2. . r.-.L.:a.~".ii.:ivC-r;:'~

MANUEL D'INSTRUCTIONS: AMPLl-TUNER A SYNTHETISEUR NUMERIOUE

.._~".¢>

For Customer Use:
Fate: nel0w the Model No. and Serial
10. which is located either on the yea:
or bottom of the cahmel Retain th35
inormation for future reference.

Model No,

Serral N04
_ m'~-¥*:i' -

E30580-1123B

Page 2

WARNING

Dangerous voltage inside

WARNING: TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

RISK (I ELtCIMZ SW
on NOT OPEN

CAUTION .

TO REDUCE THE RlSK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER IOR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsuleted
"dangerous voltage" within the product's
enclOSure that may be of sufficient magni-
tude to constitute a risk oi electric shock to
persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the r
presence of important operating and main-
tenance lserwcingl instructions in the litera-
ture accompanying the appliance.

Thank you for purchasing this JVC product.

Before you begin operating this unit. please read the instructions carefully
to be sure you get the best possible performance.

If you have any question, consult your JVC dealer.

CONTENTS

important .................................... 1
Connection diagram .............................. 2
Antennas ..................................... 3
Front panel ................................... 4
Operation
Listening to broadcasts .......................... 6
Presetting to selected station (FM or AM) ................ 5
Listening to records ............................ 6
Listening to tapes ............................. 6
Recording tapes .............................. 7
Tape dubbing ................................ 7
Using stereo head phones ......................... 7
Operation of the S.E.A. graphic equalizer
S.E.A. preset patterns ........................... 8 .
More about SE .A .............................. 8
S.E.A. recording .............................. 9
Specifications .................................. 9

IMPORTANT

d

. Installation
Select a place which is level, dry and neither too hot nor too cold (be-
tween -5°C and 40°C/32°F and 104°Fl.
Pay attention to good ventilation as poor ventilation may cause trouble.
(The temperature rise of cabinet may not satisfy the BS 415 or IEC 65
standard.)
Power .
Do not handle the power cord with wet hands!
When unplugging from the wall outlet, always pull the plug, not the
power cord.
Malfunctions, etc.
Do not insert any metallic object inside the receiver.

Tous nos compliments pour vous étre procure cetappareil de JVC.

Pour que vous puissiez obtenir lea meilleures performances possibles, nous
vous recommendons de lire attentivemcm la présente notice d'amploi event
do commencer a utiliser votre nouvel appareil.

En cas de question. consultez votre revendeur JVC.

SOMMAIRE

Important .................................... 1
Schema de raocordernent ........................... 2
Antennas .................................... 3
Panneau event ................................. 4
Fonctionnement
Ecoute d'emissions ............................. 6
Préréglage de stations sélectionnées {FM ou AM) ............ 6
Ecoute da disques ............................. 6
Ecoute de bandes ............................. 6
Enregistrement de bandes . . ...................... 7
Copie de bande ............ . ................. 7
Emploi d'un casqued'écoute stereo ................... 7
Fonctionnement de l'égaliseur graphique S.E.A.
Préréglages du S.E.A. ........................... 8
Pour mieux connaitre Ie S.E.A ....................... 8
Enregistrement S.E.A ............................ 9
Caractéristiques techniques .......................... 9

IMPORTANT

1. Installation

0 ChoOISIl' un endroit plat, sec. ni trop chaud, ni trop froid Ientre -S°C et
40 C).

O Faire attention a bien ventller l'apparell, car une mauvalse aeration
pourrait étre source d'ennuis. (L'augrnentation de la tempéfawre dU
coffret ne souscrirait plus aux normes 88415 ou lEC65.)

2. Allmentetion

0 Ne pas manlpuler le cordon secteur en ayant Ies mains mouillées.

0 Lorsque vous débranchez le cordon de la prise, Ie tirer par la fiche et
non par le til.

3. Meunis fonctionnement etc.

0 Ne pas introduire dobiets métalliques dens I'ampli-tuner.
