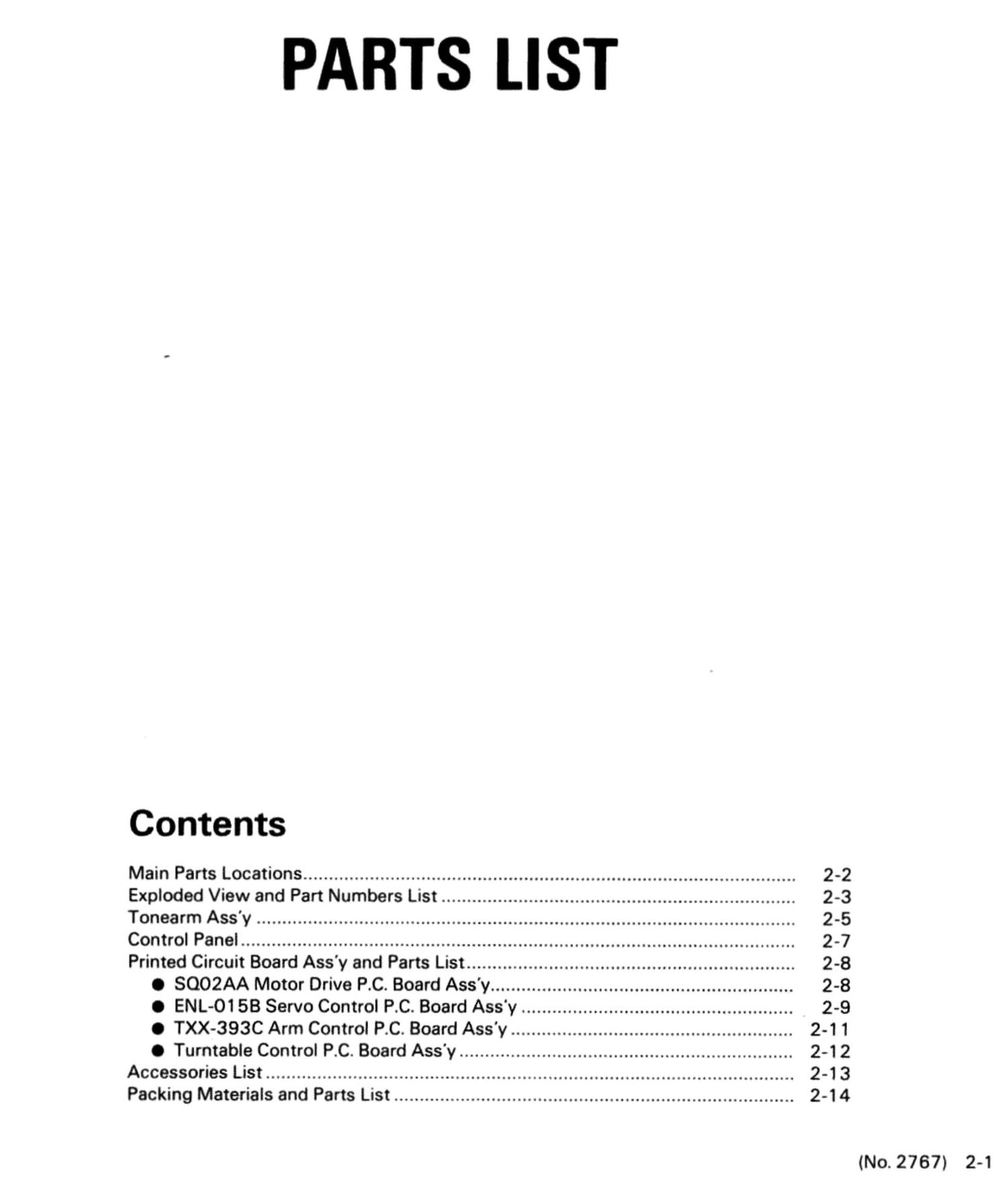

PARTS LIST
Contents
Main Parts Locations ................................................................................................ 2-2
Exploded View and Part Numbers List ..................................................................... 2-3
Tonearm Ass'y ......................................................................................................... 2-5
Control Panel ............................................................................................................ 2-7
Printed Circuit Board Ass'y and Parts List ................................................................ 2-8
0 SQOZAA Motor Drive P.C. Board Ass'y ........................................................... 2-8
0 ENL-Ol SB Servo Control P.C. Board Ass'y ..................................................... 2-9
0 TXX-393C Arm Control P.C. Board Ass'y ....................................................... 2-1 1
O Turntable Control P.C. Board Assy ................................................................. 2-12
Accessories List ....................................................................................................... 2-13
Packing Materials and Parts List .............................................................................. 2-14
(No. 2767)
2-1
Page 2
Main Parts Locations
Top View
624541 -002
Turntable Covering
E24540-001
Turntable
See Page 2-5
Tonearm Ass'y
See page 2-7
-Control Panel
Fig. 2-1
Bottom View
See page 2-4
Power Transformer A
SOOZAA
Motor Assy
Fig. 2-2
A : Safety Parts
2-2 (No. 2767)
