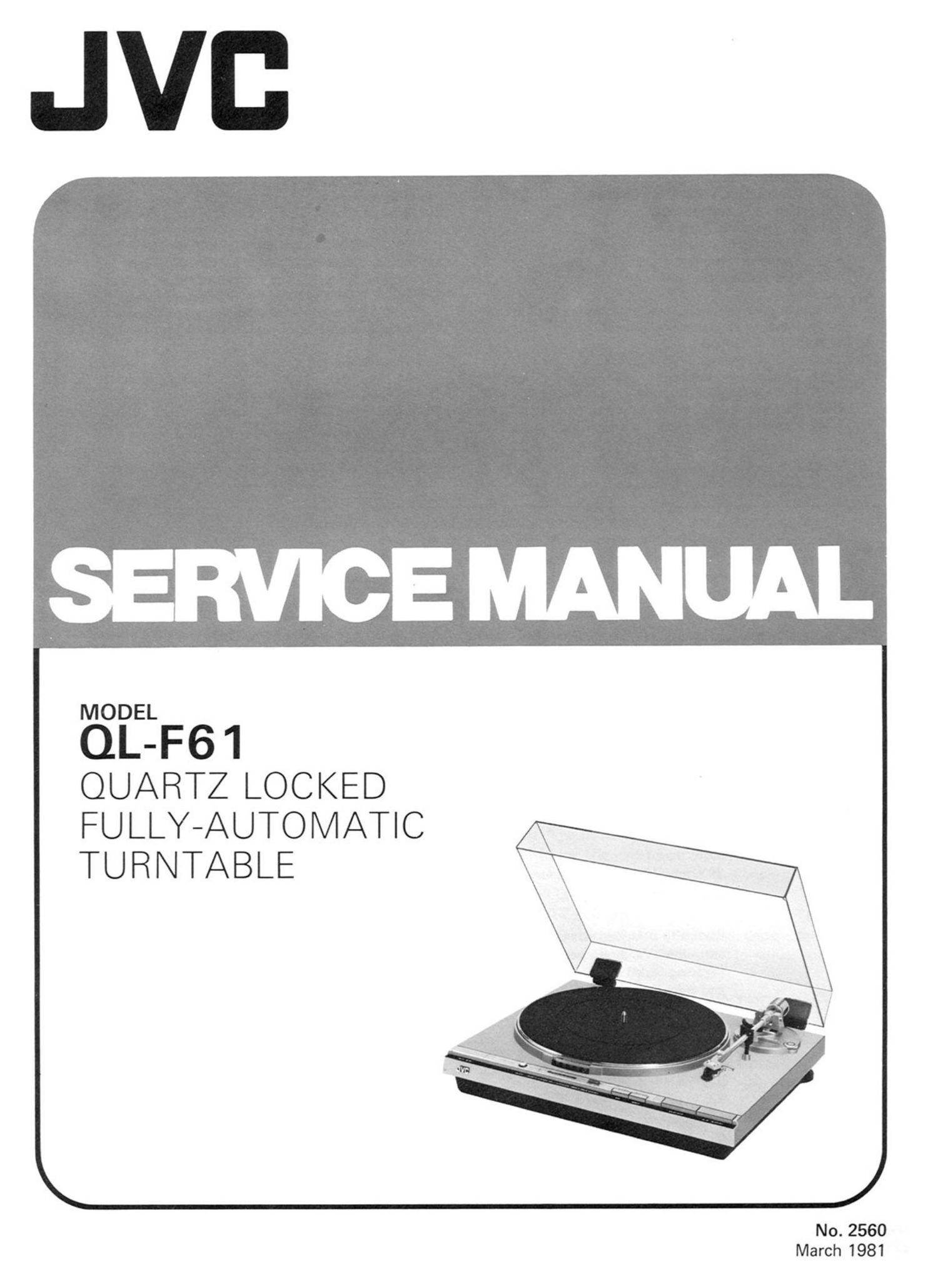

Jvc QLF 61 Service Manual

This is the 22 pages manual for Jvc QLF 61 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 22
Jvc QLF 61 Service Manual

Extracted text from Jvc QLF 61 Service Manual (Ocr-read)


Page 2

Contents

Page Page
. Specification ........................... 1 7-(5) Lead-in Adjustment ................ 10
. Names of Controls and Their Function .......... 2 7-(6) Tracking Force Adjustment ........... 11
. Operation of Automatic Mechanism ............ 3 7-(7) Motor RPM Adjustment .............. 11
3-(1) Mechanism ....................... 3 7-(8) Quartz Lock Adjustment ............. 11
3-(2) Start/stop Mechanism ................ 3 7-(9) Pitch Control Mechanism Adjustment ..... 11
3-(3) Lead-in Mechanism .................. 4 8. Block Diagrams ........................ 12
3-(4) Change Cycle Start Mechanism .......... 5 9. Connection ........................... 12
3-(5) Repeat Operation ................... 5 10. Printed Circuit Board Ass'y and Parts List ....... 13
. Exploded Views and Parts List ............... 6 10-(1) TXX-343A LED P.C. Board Ass'y ....... 13
4-(1) Mechanism Assembly ................ 6 10-(2) TPS-309CIPower Supply P.C. Board Ass'y . . 13
4-(2) Tonearm Assembly .................. 8 10-(3) MC-94486 Motor Driver P.C. Board Assy . . 14
4-(3) Mechanism Base Assembly ............. 8 11. Packing Materials and Part Numbers ........... 15
5. Disassembly ............................ 9 12. Power Cord Connections in Different Areas ...... 16
5-(1) Removal of Mechanism Base Assembly ..... 9 12-(1) How to Handle the Solderless Connector . . . 16
5-(2) Removal of Tonearm Assembly .......... 9 13. Parts List with Specified Numbers for
6. Cartridge Replacement .................... 9 Designated Area ....................... 17
7. Adjustment Procedures ................... 10 14. Trouble Shooting ....................... 18
7-( 1) Overhang Adjustment ............... 10 14-(1) When Turntable Operation is Abnormal . . . 18
7-(2) Anti-skating Adjustment ............. 10 15. OL-F61 Schematic Diagrams ................ 20
7-(3) Tonearm Lifter Height Adjustment ...... 10 16. Accessories List ........................ 22
7-(4) Lead-out Adjustment ............... 10
[ Warning: When replacing the parts marked with A , be sure to use the designated parts to ensure safety.
CHECKING YOUR LINE VOLTAGE (For U.S. Military Market and Other Countries) _\
Before inserting the power plug, please check this setting to see that it corresponds with the line voltage in 5
your area. If it doesn't, he sure to adjust the voltage selector switch to the proper setting before operating this I. /'

equipment. The voltage selector switch is located either undernearth the platter on the cabinet.
CAUTION Before selecting the "Voltage selector switch" to proper voltage disconnect the power plug.

1 . Specifications

MOTOR AND TURNTABLE

Type Quartz Locked Fully-Automatic
Turntable

Drive Motor Coreless DC servomotor

Speeds: 33-1/3 and 45 rpm

Wow and flutter: Less than 0.025% (WRMS), 0.015%
(WRMSY 0.04% (DIN)
Signal to Noise Radio: More than 75 dB (DIN-B)

Speed Adjustment

Range: More than i6%
Platter: 295 mm (11-5/8") Diameter
Die-cast aluminum alloy
TONEARM
Type: Statically balanced straight tubular

arm with JVC developed T.H.
(Tracing-Hold) balancing system
and tracking force dial in 0.1 gram
steps.

Effective Arm Length: 220 mm

Tracking error: +3°35' -0°43'

Overhang: 15 mm
Tracking force range: 0 - 3 9
Weight range: 8.5 ~ 12 9

(including headhsell)

CARTRIDGE (not provided on units for U.S.A., Canada
and the U.K.)
MODE L: 2-15

Type: Moving Magnet (MD-1025)

OL-F61

No. 2560 _

Stylus tip:
Optimum tracking
force:

Output:

Frequency response:

Separation:

Load Impedance:

0.6 mil. diamond (DT-Z1S)

1.75 t 0.25 grams

3 mV (IkHz)

10 to 25,000 Hz

More than 25 dB (1 kHz)

(with test record TRS-I)
47 k ohms - 100 k ohms

Compliance: 10 x 10'6 cm/dyne (Dynamic)
30 x 10'6 cm/dyne (Static)

GENERAL

Power Source: See page 22

Power Consumption: See page 22

Dimensions:

Weight (NET):

IHl4-1/2" x (W)16o9/16 x (D)14"
(H)115 x (W)420 x (D)355mm
(with cover closed)

(Since the dimensions show only
the design measurements, consi-
deration is required when inst'all-
ing the unit in a limited space such
as a rack).

12.1 lbs. (5.5 kg)

(without corrugated cardboard
case)

*Measured at attached encoders output by K & K measur-

ing method.

Design and specifications subject to change without notice.
