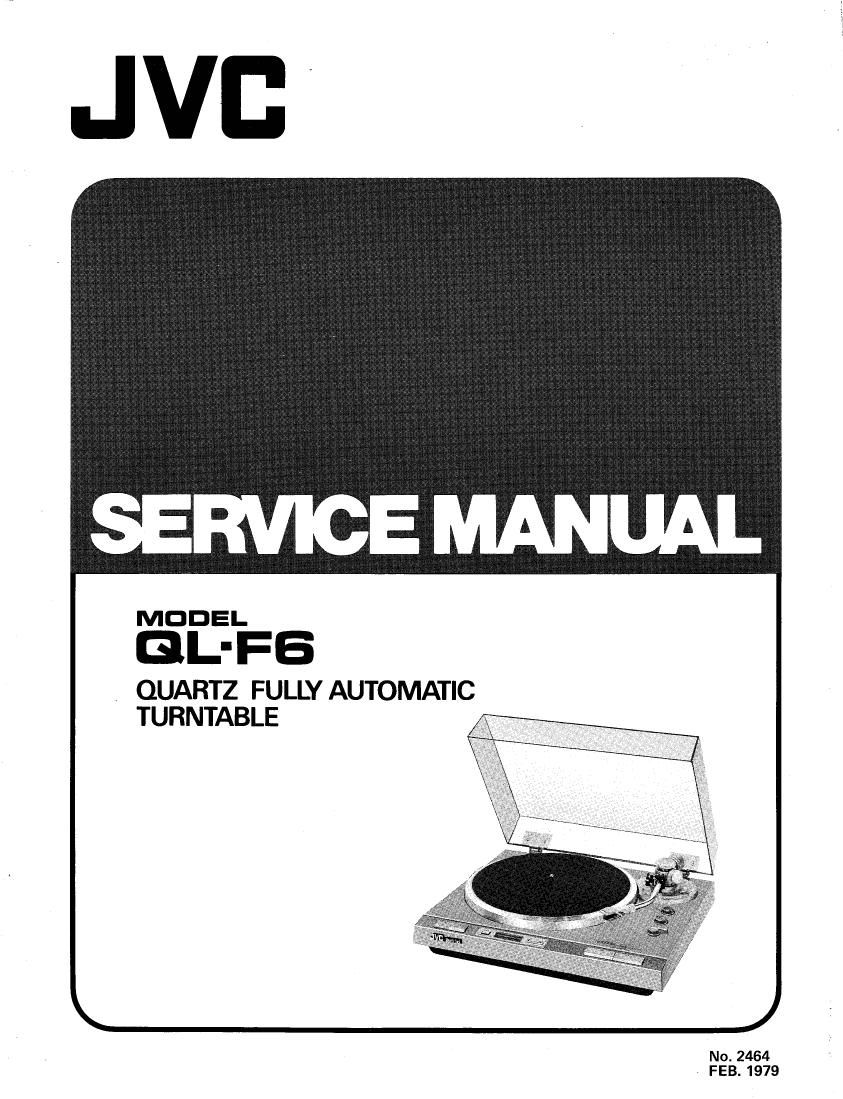

Jvc QLF 6 Service Manual
This is the 27 pages manual for Jvc QLF 6 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc QLF 6 Service Manual (Ocr-read)
Page 1
Contents Pages 1. Specifications ................................................................... 2. ServicePrecautions................................................................ Features....................................................................... 4. NamesofPartsandTheirFunctions..................................................... 5. Replacement Procedures (1) Stylus.................................................................. (2) Headshell ".....................................,............... (3) Cartridge................................................................ (4) Motor.................................................................. (5) HO/VODampingKnobs " '" 6 6. Lubrication (1) HO/VODampingMechanism .................................................. (2) Motor.................................................................. (3) FullyAutomaticMechanism................................................... 7. Adjustment Procedures (1) ~UARTZ LOCK/PITCH CONTROL Meter ........................................ (2) OuartzLockAdjustment ..................................................... 8 Tonearm Section (3) HeadsheliAngle "..... (4) TonearmElevator.......................................................... (5) Overhang ............................................................... (6) Lead-in................................................................. (7) Lead-out................................................................ (8) TrackingForce........................................................... (9) Anti-skating............................................................. (10) HO/VODamping ......................................................... 8. OL-F6BlockDiagram ............................................................. 9. Troubleshooting Charts (1) Platter does not rotate. ..................................................... (2) Platter rotates at high speed. ................................................. (3) Pitch Control operates abnormally. ............................................. 10. Exploded Views and Parts List 10-(1) Cabinet & Mechanism Assy .................................................. 10-(2) Mechanism Assy ......................................................... 10-(3) TonearmAssy........................................................... 11. Printed Circuit Board Ass y and Parts List 11-(1) MDC-938G ............................................................. 11- (2) TPS-206 ............................................................... 12. Accessories List ................................................................. 13. OL-F6 Schematic Diagram .......................................................... 14. PackingMaterialsandPartNumbers.................................................... 15. Parts List with Specified Numbers for Designated Areas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back page OL- No. 24641 -
Page 2
Specifications MOTOR SECTION (These specifications apply only to the quartz lock mode. Motor : Core less, DC type FG servomotor : Phase- locking to the quartz oscillator : Direct drive : 33-1/3 Servo system Drive system Speeds Fine pitch adjustable range Wow and flutter Signal-to-noise ratio Speed detection Starting torque Speed deviation Load characteristics Drift Power characteristics Temperature characteristics Platter TONEARM SECTION Type Effective arm length Overhang Weight range including headshell: :!: 6 % (at the pitch control mode) : 0. 025 % (WRMS) : More than 78 dB (DIN- : Frequency generator : More than 1. 2 kg-cm : Within 0. 002 % : 0 % (with 170 g total tracking force) : 0.0001 %/H : 0 % (:!: 10 V) : 0. 00005 %tc : 32.7 cm : Statically-balam;ed oil-damped tonearm : 233 mm : 15 mm : 13 - 20 g 24 g (when using the provided sub-counterweight) 2. Service Precautions . Be sure to use JVC standard parts. . When repairing the speed control circuit board con- nect the m938 G motor in order to prevent damage to the transistor used.in the platter drive section. . Be sure to adjust motor speed with the u nit level otherwise fluctuations which make adjustment impos- sible may occur. . When repairing circuit board with the heat sink re- moved, attach mobile heat-sink to prevent the tran- sistor temperature from rising.CARTRIDGE SECTION (Except for USA, Canada and U. Type : Moving magnet (MD-l025EB) Frequency response: 10 Hz - 25000 Hz Output : 3 mV (1 kHz) Channel separation: 25 dB (1 kHz) (using the test record TRS- : 47 - 100 k-ohms : 10 x 106 cm/dyne (dynamic) 30 x 106 cm/dyne (static) : DT-Zl EB , 0.3 x 0.7 mil. (diamond, elliptical) Optimum tracking force: 1.75 g :!: 0. 25 g GENERAL Power consumption DimensionsLoad resistance Compliance Stylus Weight Accessories EP adapter: 15W : Height 14. 2 cm (with closed cover) Width 45.6 cm Depth 40. 0 cm (Since the dimensions show only the design measurements, con- sideration is requ ired when installing the unit in a limited space such as a rack, etc. : 11 kg (without the packaging) Sub-counterweight: 1 Place the adapter on the center spindle when playing a record having a bigger diameter center hole such as a doughnut record. : 1 Design and specifications subject to change without notice. 3. Features . Newly developed oil-damped tonearm assures high trackability. Highly sensitive, new gimbal'support tonearm system. . Double-quartz servo circu it and high torque, non- resonance coreless motor give high reliability. . Extra- heavy aluminum diecast platter (2 kg including the mat, inertia 330 kg/cm Howling margin is greatly improved with the new super-compound (type-l) board used as the base. Operation buttons and controls are positioned at the front for easy operation. . NR- type headshell with minimum resonance is em- ployed. Moving-magnet cartridge with a elliptical stylus. Fine pitch control allows adjustment within:!: 6 % (approx. a half note). . Quartz lock/Pitch control meter for convenient speed check. Fully automatic mechanism. QL- No. 2464
Page 14
(3) Pitch Control operates abnormally. Pitch control functions incorrectly. Check for disconnected wire(s) in the meter whether VR1 is open or if the meter leads are disconnected.Check if R64 is dis- connected and whether X22 is open. Replace if necessary. 2. Meter deflects to positive side and remains there. Collector and emitter of X 18 are short-cir- cuited. Replace this transistor.Readjust and observe 14 -Is D6 or D7 short- circu ited? Replaced. Yes Disconnected or de- fective R 11. Replace.YesCheck if R52 is dis- connected. Replace if defective. Fig. 26The collector and emit- ter of X 19 are short- circuited. Replace this transistor .Readjust and observe.Check if R12 is dis- connected. Replace if disconnected. Check if R53 is dis- connected. Replace if so.Yes QL- No. 2464
