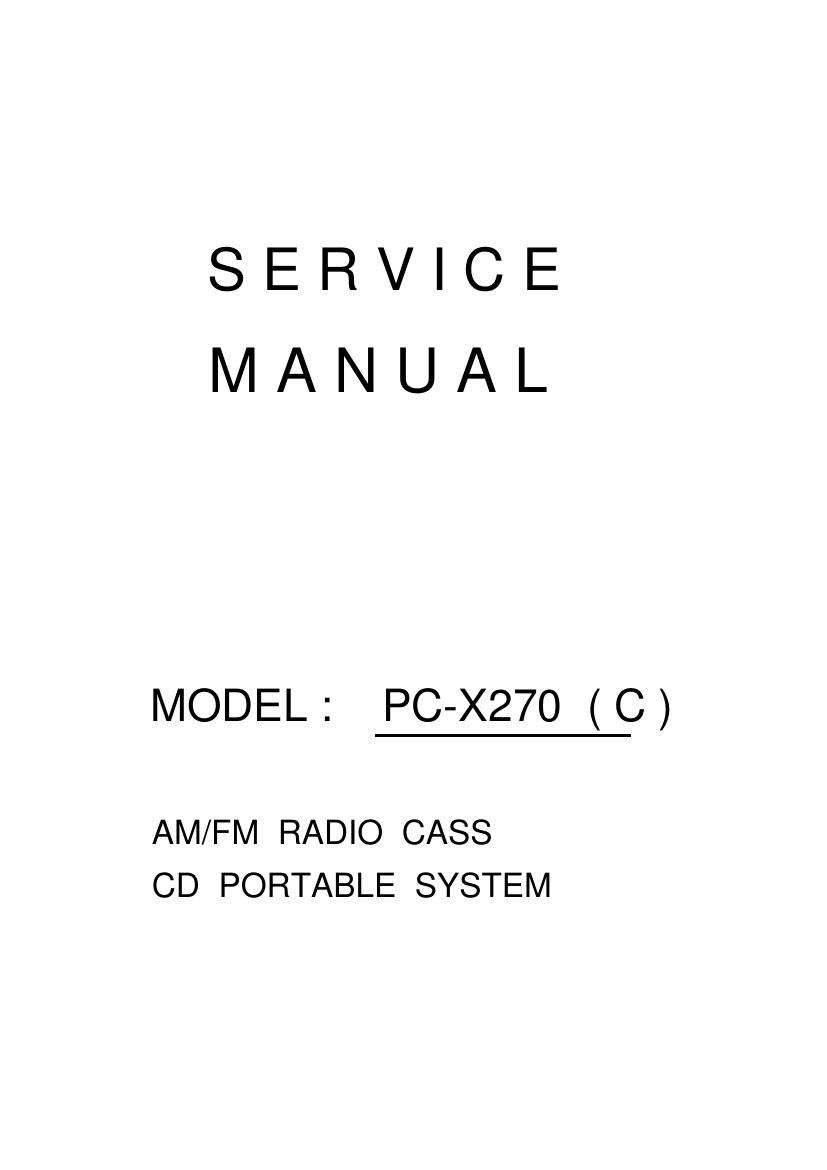

Jvc PCX 270 Service Manual
This is the 34 pages manual for Jvc PCX 270 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc PCX 270 Service Manual (Ocr-read)
Page 1
MATESTAR ELECTRONICS LTD. PERFORMANCE SPECIFICATIONS Date : 7 May , 2003 Model : PC-X270 Band : AM / FM (PLL RADIO) CD CASSETTE System Page Total 6 Pages GENERAL TEST CONDITION Output Load 3 ohm non-reactive Reference Output : 250 mW Input Signal Source : IRE LOOP for AM 75 ohm dummy for FM Modulation : 30% 400 Hz for AM 22.5 KHz Deviation 1 KHz for FM 75KHz Modulation for FM MPX Remarks DC : 12V AC : 120V 60Hz * * * Subject to change without notice . Prepared by Approved by page 1
Page 2
PERFORMANCE SPECIFICATIONS MODEL NO : PC-X270 Amplitude Modulation ( AM ) Section Test Item Unit Nominal Limit #1 #2 A.01 Tuning Range LOW KHz 520 +/-5 HIGH KHz 1710 +/-5 A.02 I.F. Frquency 600KHz KHz 450 +/-5 A.03 Sensitivity (AM Loop ANT.) (LOW TP) 600KHz dB/m 58 68 S/N 20dB (MID TP) 1000KHz dB/m 58 66 (HIGH TP) 1400KHz dB/m 58 66 A.04 Image Rejection 1000KHz dB 1400KHz dB 37 30 A.05 S/N Ratio at 100dB/m Input 600KHz dB 35 30 1000KHz dB 35 30 1400KHz dB 35 30 A.06 I.F. Rejection (MW)600KHz dB 48 40 A.07 AM Whistle Modulation 910/1350KHz %--¡Ø15 A.08 Selectivity (+/-10KHz) (ACA) 600KHz dB 1000KHz dB A.09 AGC Figure of Merit (126dB) 1000KHz dB 40 35 A.10 Audio Response -6dB (AM:1000KHz) LOW Hz 70 125 HIGH KHz 2K5 2K A.11 Distortion 30% at Ref. 1000KHz % 1 3 60% at Ref. 1000KHz % 5 10 A.12 Modulation Hum (AC) 1000KHz dB 50 40 A.13 Overload (M=80% THD=10%) 1000KHz mV/m >100 A.14 Min. Volume Hum and Noise mV 0.7 1.2 A.15 10% THD Power(Mod:80%)(1-CH Load Only)( AC ) W¡Ù5 A.16 Max. Vol. Audio Power Output (80% Mod) 1000KHz W A.17 6dB Bandwidth at 20dB S/N 1000KHz KHz 4 +/-3 A.18 Auto Search Threshold 600KHz dB/m 60 68 1000KHz dB/m 60 66 1400KHz dB/m 60 66 A.19 OSC Dropout Voltage Max. Power (DC) 1000KHz V 8.4 10.8 Fial Out Valtage (AC) 1000KHz %¡Ù70 page 2
