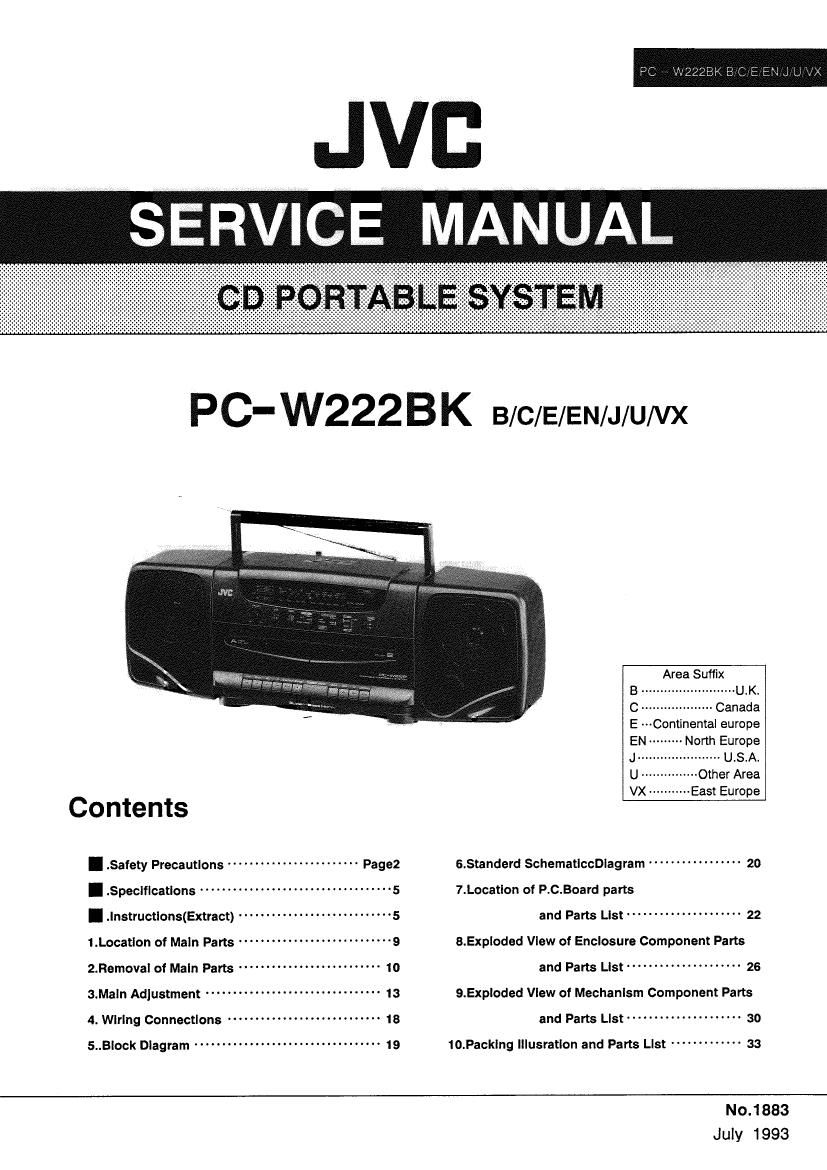

Jvc PCW 222 BK Service Manual

Page 1

.JVB

Area Suffix
....... U_K_
~ Canada
E mContinemaI europe
-- North Europe
............. UWSA
-- -«Other Area

VX -- -~East Europe
Contents
I .Safety Precautlons ---------------------- Pagez 6.8mndevd SchematlchIagram ----------------- 20
I .Speclflcatlons --------------------------------- 5 7.Locatlon of P.c.Board parts
I .lnstructlons(Extract) ......... . . ................. 5 and Parts Llst ..................... 22
1.Locatlon of Maln Parts ------------------------ 9 8.Exploded View of Enclosure Component Parts
2.Removal of Maln Parts ... ....................... 1° and Parts Llst ..................... 26
3.Maln Adjustment ---------------------------- 13 9.Exploded View of Mechanism Component Parts
4 erlng Connections ............................ 3 and Parts Llst ..................... 3°
5..Block Dlagram ------------------- - --------- 19 10.Packlng Illusratlon and Parts Llst ------------- 33
No.1 883

July 1993

Page 2

PC - W2223K BlC/E/EN/JIUNX

I Safety Precautios

1. The design this product contains special hardware and many circuits and components specially for safety purposes. For continued
protection. no changes should be made to the original design unless authorized in writing by the manufacturert Replacement pans

must be identical to those used in the original circuits. Service should be performed by qualified personnel only,

2. Alterations of the design or circuitry of the product should not be made, Any design alterations of the product should not be made.

Any design alterations or additions will void the manufacture's warranty and will further relieve the manufacture of responsibility for
personal injury or property damage resulting therefrom.

3, Many electrical and mechanical parts in the product have special safety - related characteristics. These characteristics are often
not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement
components rated for higher voltage. wattage. etc, Replacement parts which have these special safety characteristics are identified
in the parts list of service manual. Electrical components having such features are identified by shading and( A )on the schematic
diagram and by ( A ) on the parts list in the service manual. The use of a substitute replacement which does not have the same
safety characteristics as the recommended replacement part shown in the parts list of service manual may create shock. fire. or
other hazards,

4. The leads in the products are routed and dressed with ties. clamps . tubings. barriers and the like to be separated from live parts.

high temperature parts. moving parts and or sharp edges for the prevention of electric shock and fire hazard. When service is
required. the original lead routing and dress should be observed. and it should be confirmed that they have been returned to normal.
after reassembling.

5. Leakage current check (Electrical shock hazard testing)

After re - assembling the product. always perform an isolation check on the exposed metal parts of the product (antenna

terminals. knobs. metal cabinet, screw heads. headphone jack, control shafts. etc.) to be sure the product is safe to operate without

danger of electrical shock. Do not use a line isolation transformer during this check.

- Plug the AC line cord directly into the AC outlet. using a"Leakage cun'ent tester, measure the leakage current from each exposed
metal part of the cabinet. particulary any exposed metal part having a return path to the chassis. to a known good earth ground.
Any leakage current must not exposeed 0.5mA AC(r.m.s.)

AC VOLTMETER
~ Alternate chock method EB (Having 1000 ohms/volt,
Plug the AC line cord directly into the AC outlet. Use an AC °"°"""""Vi
voltmeter having 1.000 ohms per volt or more sensitivity in the A r
following manner. Connect a 1.500 ohms 10W resistor paralleled by 0'15 "F AC TYPE
a 0.15 It F AC type capacitor between an exposed metal part and Place this probe
a known good earth ground. Measure the AC voltage across the 1500:: 10 W gzgcsazimw

resistor with the AC voltmeter. Move the resistor connection to each

exposed metal part. particularly any exposed metal part having a return path to the chassis. and measure the AC voltage across
the resistor. Now. reverse the plug in the AC outlet and repeat each measurement. Any voltage measured must not exceed 0,75V
AC(r.m.s.).This corresponds to 0.5mA AC(r.m.s.).

9 Warning

1. This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintaintained.
3. Repairs must be made in accordance with the relevant safety standards

4. It is essential that safety critical components are replaced by approved parts.

5. If mains voltage selector is provided. check setting for local voltage.

2 (No.1883)
