Jvc NXT 5 Service Manual
This is the 57 pages manual for Jvc NXT 5 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc NXT 5 Service Manual (Ocr-read)

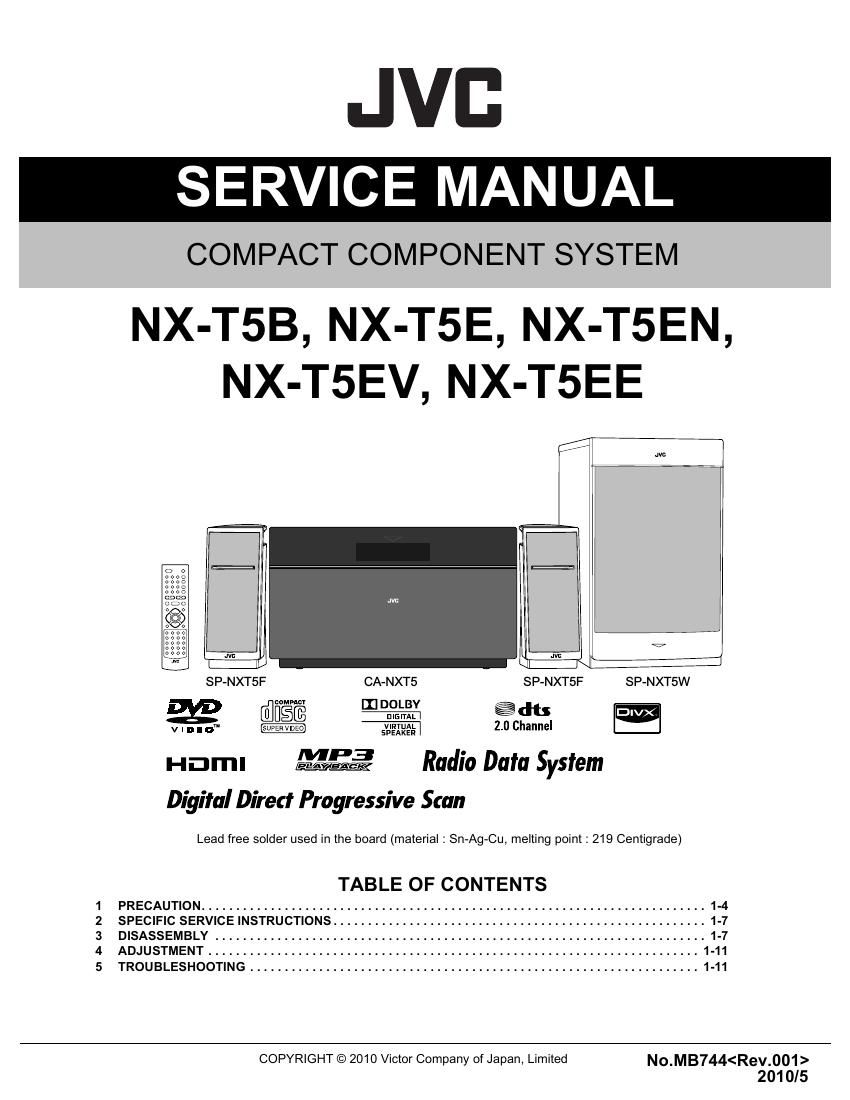

Page 1
JVB
SERVICE MANUAL
COMPACT COMPONENT SYSTEM
NX-T5B, NX-T5E, NX-T5EN,
NX-T5EV, NX-T5EE
SP-NXT5F CA-NXT5 SP-NXT5F SP-NXT5W
caMmcl DOLBY 7
% @ggg mm @ dts :nvx
v: D E cm 5 EEEEEEEE D m 2.0 Channel
HEII11I Radio Data System
Digital Direct Progressive Scan
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TAB LE OF CONTENTS
1 PRECAUTION ......................................................................... 1-4
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-7
3 DISASSEMBLY ....................................................................... 1-7
4 ADJUSTMENT ....................................................................... 1-11
5 TROUBLESHOOTING ................................................................. 1-11
COPYRIGHT © 2010 Victor Company of Japan, Limited No_MB744
2010/5
