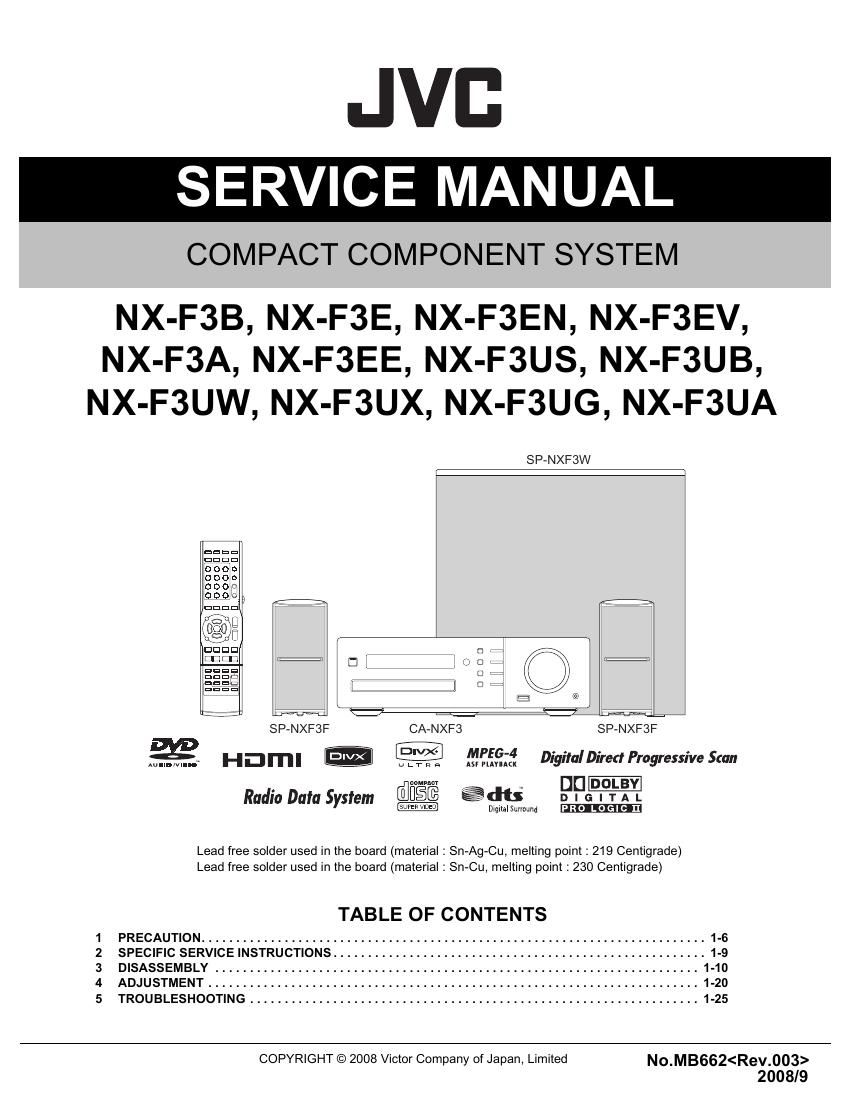

Jvc NXF 3 Service Manual

Page 2

For Europe
Main unit

SPECIFICATION

Tuner

FM frequency

87.50 MHZ - 108.00 MHZ

AM frequency

522 kHZ - 1 629 kHZ

Terminal (front of the main unit)

Impedance 16 Q - 1 k9
Terminal (rear of the main unit)

Left/right speakers Output power 200 W (50 W x 4) at 3 £2 (1 kHz/1O % THD)
impedance 3 £2 - 16 Q
Subwoofer Output power 150 W at 6 (2100 Hz/10 % THD)
impedance 6 £2 - 16 Q

Optical digital input terminal

-23 dBm to -15 dBm

Optical digital output terminal

-23 dBm to -15 dBm

Component video output terminals

Y: 1.0 Vp-p, 75 £2 terminated

PB: 0.7 Vp-p. 75 Q terminated

PR: 0.7 Vp-p, 75 Q terminated

Composite video output terminal

1.0 Vp-p, 75 Q terminated

Audio input terminals

500 mV/47 kQ

USB(

Compatible with USB 2.0 Full-Speed)

Compatible device

USB mass storage class device

Compatible file system

FAT16, FAT32

Output power DC 5 V = 500 mA
HDMI
Output power DC 5 V = 55 mA
General

Power source AC 230 V~50 HZ
Power consumption (in operation) 90 W
Power consumption (on standby) 0.8 W
Dimensions (W x H x D) [including projecting parts] 300 mm x 95 mm x 295 mm
Mass 3.4 kg
Speaker
Type 1-way bass reflex type Magnetically shielded type
Speaker driver Front Ch 5.5 cm cone

Surround Ch 5.5 cm cone
Power handling capacity Front ch 50W

Surround ch 50W
Impedance 3 0
Frequency range 80 Hz - 20 kHz
Sound pressure level 77 dB/W-m
Dimensions (W x H x D)[including projection parts] 88 m X 184 mm x 125 mm
Mass (1 speaker) 1.2 kg

1-2 (No.MB(562)
