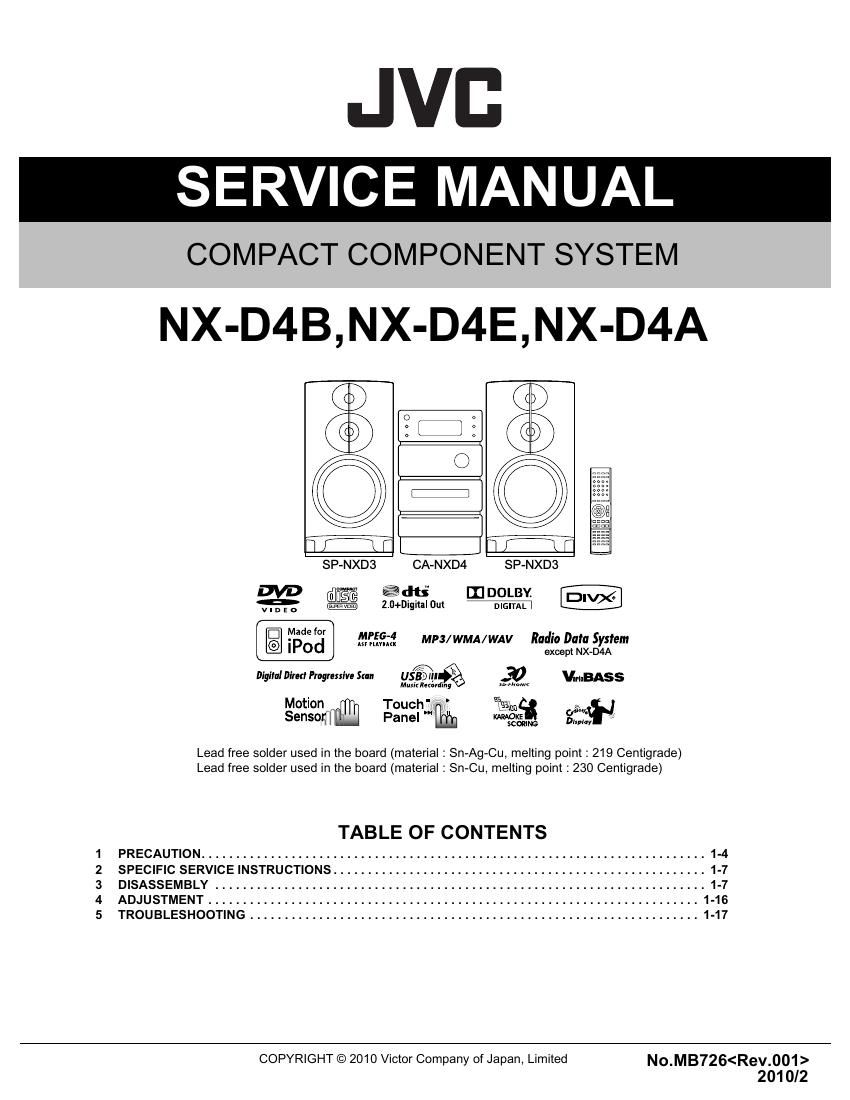

Page 1
JVB
SERVICE MANUAL
COMPACT COMPONENT SYSTEM
NX-D4B,NX-D4E, NX-D4A
o a
: l l :
O
I:
SP-NXDS CA-NXD4 SP-NXDS
"m" é (SM m DOLBY
m 2.0+Digital Dul m
VIDEO
d r .
e a Mfiffifix MP3/ WMA/WAV Radio Data System
0 except NX-D4A
Digital Dim! Progressive Stan Usfll??% 'w rlnBAss
Muxi: Remrdi mmum
Motion Touch' 33mg
Sensqfil Panel " ngmm 3:; "
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
TAB LE OF CONTENTS
1 PRECAUTION ......................................................................... 1-4
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-7
3 DISASSEMBLY ........................................... 1-7
4 ADJUSTMENT ....................................................................... 1-16
5 TROUBLESHOOTING ................................................................. 1-17
COPYRIGHT © 2010 Victor Company of Japan, Limited N0.MB726
2010/2
