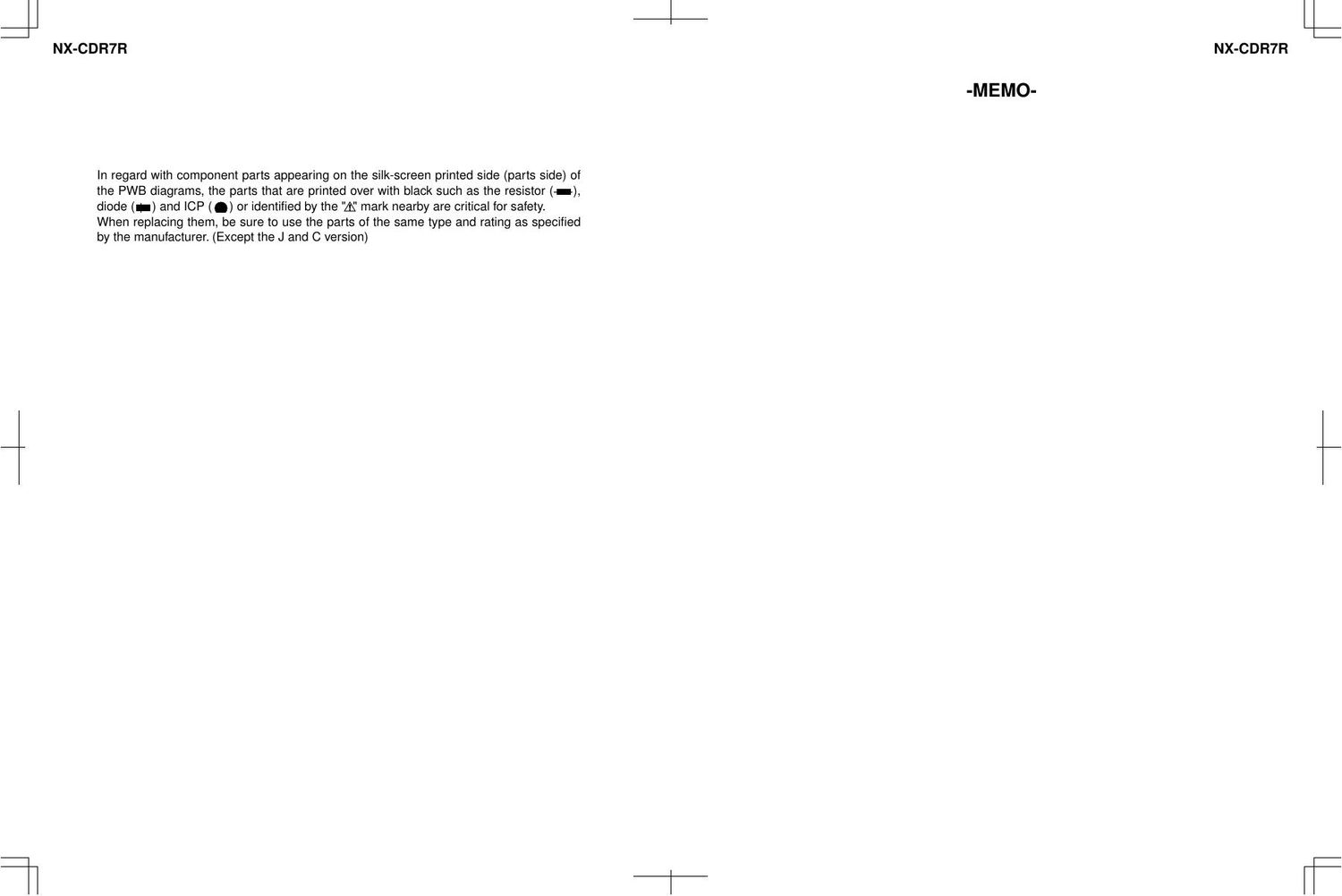

Page 1
:H NX-CDR7R H:
NX-CDR7R
-MEMO-
In regard with component parts appearing on the silk-screen printed side (parts side) of
the PWB diagrams, the parts that are printed over with black such as the resistor (I),
diode (h) and ICP (Q) or identified by the " " mark nearby are critical for safety.
When replacing them, be sure to use the parts of the same type and rating as specified
by the manufacturer. (Except the J and C version)
