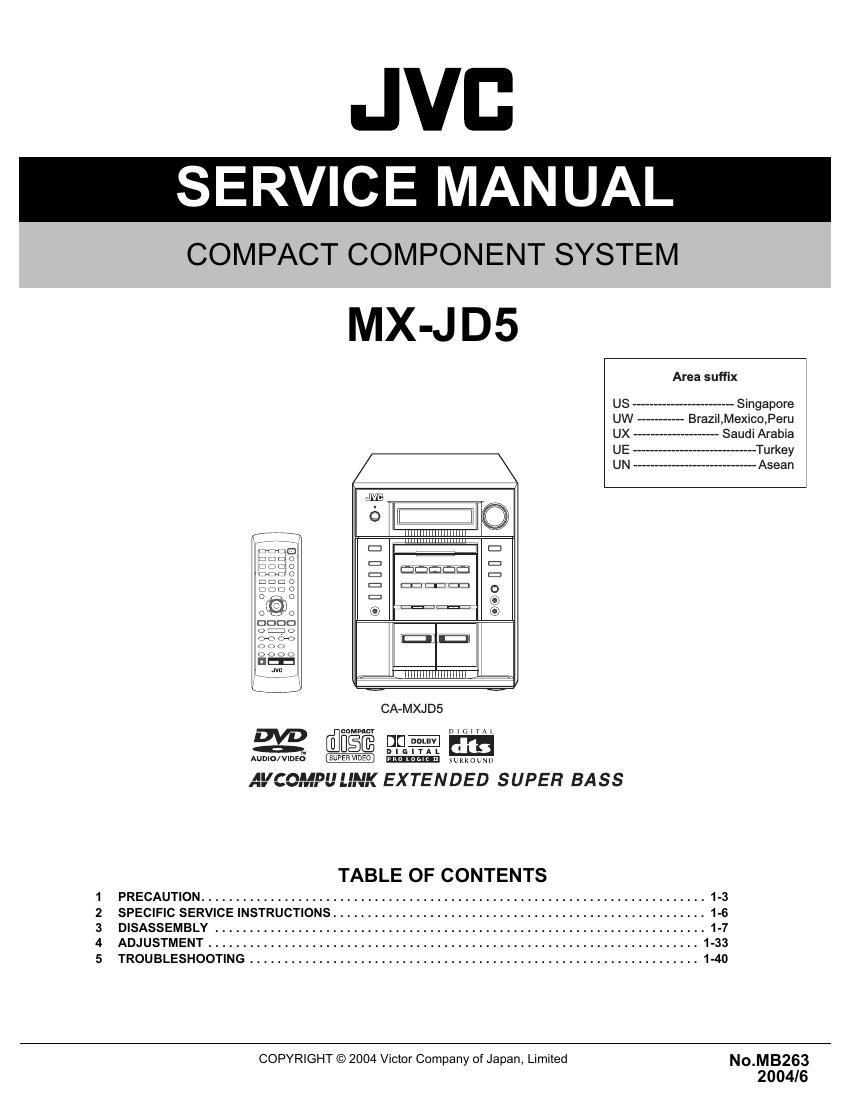

JVC

SERVICE MANUAL

COMPACT COMPONENT SYSTEM

MX-J D5

Area suffix

---------- Singapore
- Brazil,Mexico,Peru
- Saudi Arabia
--Turkey

--Asean

M»;

Q!

E

:1

.2.

.2.

.2

iii;

CA-MXJD5
@fi-u-gfi DU mun
-DD|.BV
AUDIO/VIDEO _UPERV\DEO %
AVCOMPU LINK EXTENDED SUPER BA SS
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. .
3 DISASSEMBLY ...................
4 ADJUSTMENT ..........
5 TROUBLESHOOTING ................................................................. 1-40
COPYRIGHT © 2004 Victor Company of Japan, Limited No_M3263

2004/6

Page 2

SPECIFICATION

Amplifier Output Power FRONT MAIN SPEAKERS 40 W per channel, min. RMS, driven into 6 Q at 1 kHz with
section no more than 10% total harmonic distortion.
FRONT SUBWOOFERS 80 W per channel, min. RMS, driven into 6 Q at 63 HZ with
no more than 10% total harmonic distortion.
CENTER SPEAKER 40 W, min. RMS, driven into 8 £2 at 1 kHz with no more
than 10% total harmonic distortion
SURROUND SPEAKERS 25 W per channel, min. RMS, driven into 16 Q at 1 kHz
with no more than 10% total harmonic distortion.
Digital output OPTICAL DIGITAL OUTPUT -21 dBm to -15 dBm (660 nm :30 nm)
Audio input sensitivity/ AUX IN 300 mV/47 kQ
'mpedance , MIC 1/2 3.0 mV/50 k9
(Measured at 1 kHz, wrth
tape recording signal 300
mV)
VIDEO OUT Color system NTSC/PAL selectable
VIDEO (composite) 1 V(p-p)/75 Q
S-VIDEO Y (Iuminance):1 V(p-p)/75 Q
C (chrominance, burst):0.286 V(p-p)/75 Q
COMPONENT (Interlace/ (Y):1 V(p-p)/75 Q
ngress've) (PB/PR):0.7 V(p-p)/75 (2
Speaker Terminals Front main speakers 6 Q - 16 (2
Center speakers 8 Q - 16 Q
Surround speakers 16 Q - 32 Q
6 (2-16 0 (Frontsubwoofers) 6 Q - 16 0
Others AV COMPU LINK X 2 (O 3.5)

Tuner section

FM tuning range

87.50 MHz -108.00 MHz

AM (MW) tuning range

531 kHZ -171O kHz (at 9 kHZ)

530 kHZ - 1 710 kHz (at 10 kHZ)

Disc player
section

Playable disc

DVD Video/DVD Audio/CDNCD/SVCD

CD-R/CD-RW (recorded in Audio CD/ Video CD/ Super
Video CD/ MP3/ WMAI JPEG/MPEG-4 format)
DVD-R/DVD-RW (recorded in video format)

Dynamic range

90 dB

Horizontal resolution

500 lines

Wow and flutter

Immeasurable

Cassette deck
section

Frequency response Normal (type I)

50 HZ- 14 000 HZ

Wow and flutter

0.15% (WRMS)

General

Power requirement

AC 110V/AC 127V/A0220V/A0230V-ACZ4OV,
(adjustable with the voltage selector), 50 Hz / 60 Hz

Power consumption

220 W (at operation) 20 W (on standby)

Dimensions (approx.)

265 mm x 335 mm X 352 mm (W/H/D)

Mass (approx.)

8.7 kg

Design and specifications are subject to change without notice.
