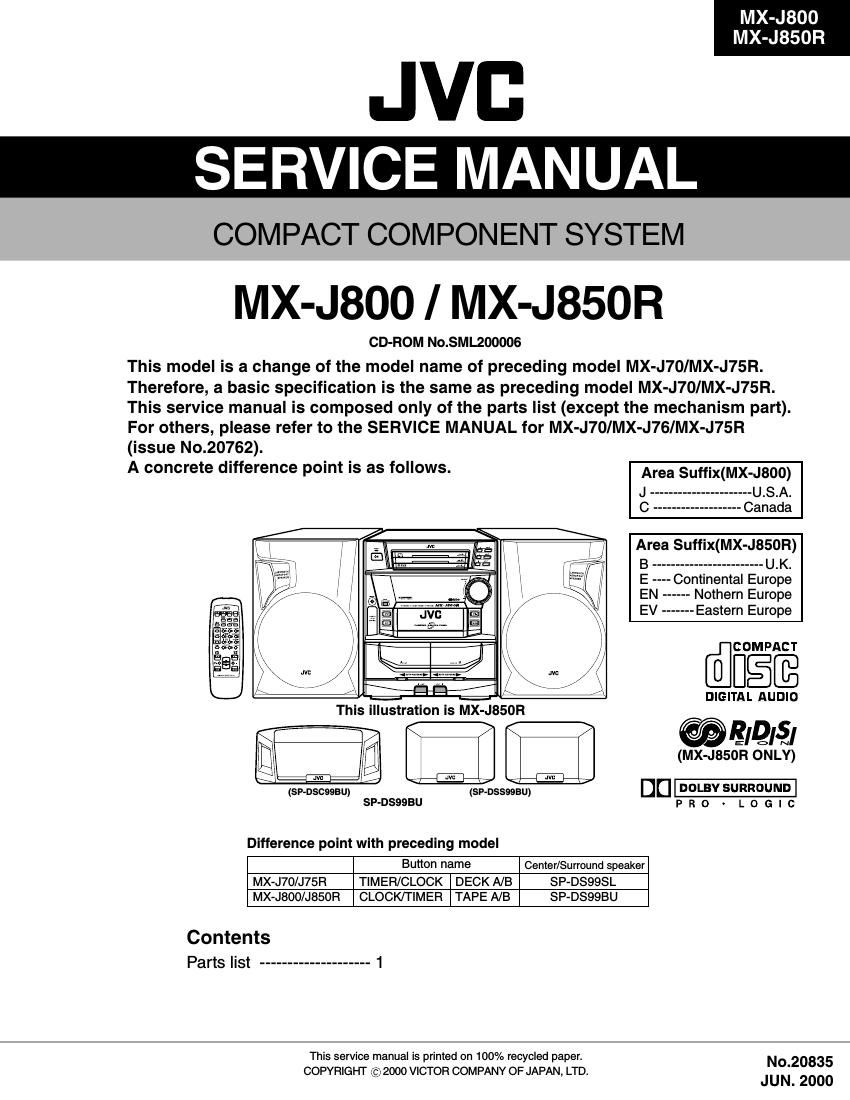

MX-J800
MX-J850R
SERVICE MANUAL
COMPACT COMPONENT SYSTEM
MX-J800 / MX-J850R
CD-ROM No.SM L200006
This model is a change of the model name of preceding model MX-J70/MX-J75R.
Therefore, a basic specification is the same as preceding model MX-J70/MX-J75R.
This service manual is composed only of the parts list (except the mechanism part).
For others, please refer to the SERVICE MANUAL for MX-J70/MX-J76/MX-J75R
(issue No.20762).
A concrete difference point is as follows. Area Suffix(Mx_J800)
.J ---------------------- U.S.A.
C ------------------- Canada
Area Suffix(MX-J850R)
B ------------------------ U.K.
E ----Continental Europe
EN ------ Nothern Europe
EV ------- Eastern Europe
05%
DIGITAL AUDIO
This illustration is MX-J850R
R D 5
EI IQ fiscflcfilfiI
I m I m E m ,
(sssscsssm (WW) D_
SP-DSSQBU PRO - LOGIC
Difference point with preceding model
Button name Center/Surround speaker
MX-J70/J75Fl TIMER/CLOCK DECK A/B SP-DSQQSL
MX-J800/J850R CLOCK/TIMER TAPE A/B SP-DSQQBU
Contents
Parts list -------------------- 1
This service manual is printed on 100% recycled paper.
N .2
COPYRIGHT (<3) 2000 VICTOR COMPANY OF JAPAN, LTD. 0 0835
JUN. 2000
