Jvc MXJ 50 Service Manual
This is the 27 pages manual for Jvc MXJ 50 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc MXJ 50 Service Manual (Ocr-read)
Page 1

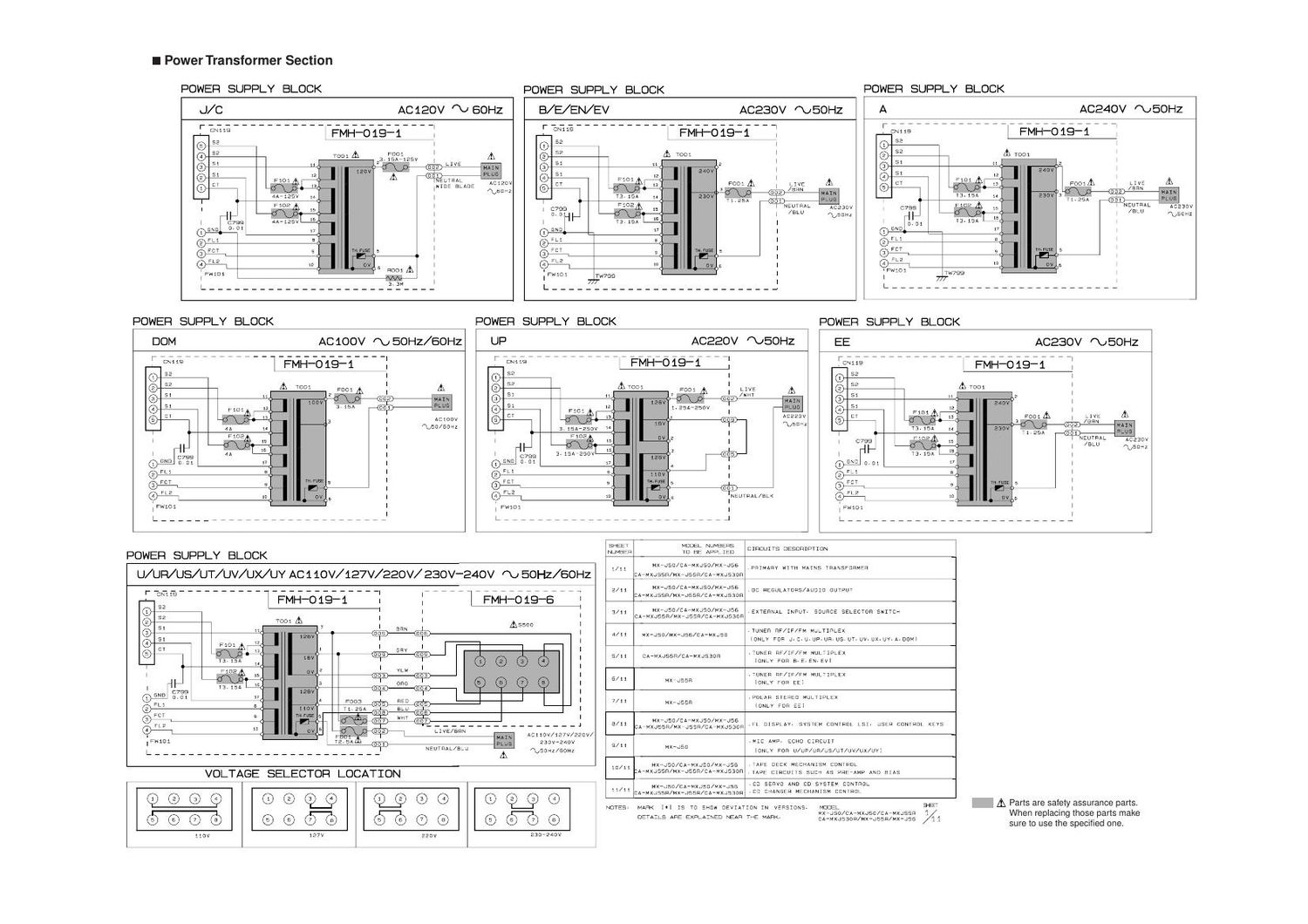

Power Amplifier & Regulator Section MAIN SIGNAL Parts are safety assurance parts. When replacing those parts make sure to use the specified one.
Page 2
Function & Main Amplifier Section CD / MAIN SIGNAL TUNER SIGNAL TAPE P.B. SIGNAL
Page 12
MX-J50 2-20Removing the System Control & FL Board (See Fig.13 and 14) 1. 2. 3. 4.Disconnect the card wires and flat wires from connector CN812, CN817, CN816, CN951, CN813, CN810 and CN811 on the system control & FL board respectively. Disconnect the flat wire from connector D851 on the relay board. Remove the six F screws attaching the stay bracket. Remove the two I screws attaching the system control & FL board. Removing the Relay Board (See Fig.15) 1. 2. 3.Remove the one screw J attaching the relay board. Release the five c tabs fitted to the relay board. Disconnect the card wires, the 2P harness and the flat wires from connector CN856, CN857, CN859, CN863, CN858 (Only Ver.U type) and D851 on the relay board respectively. Fig.13 Fig.14 Fig.15 CN813 CN951 CN812 CN817 CN816 System control & FL board CN810 CN811 I I F D851 Relay board Stay bracket Relay board Tab c Tab c CN863 Tab c D851CN859 CN857 CN858 Tab c CN856 Tab c J
