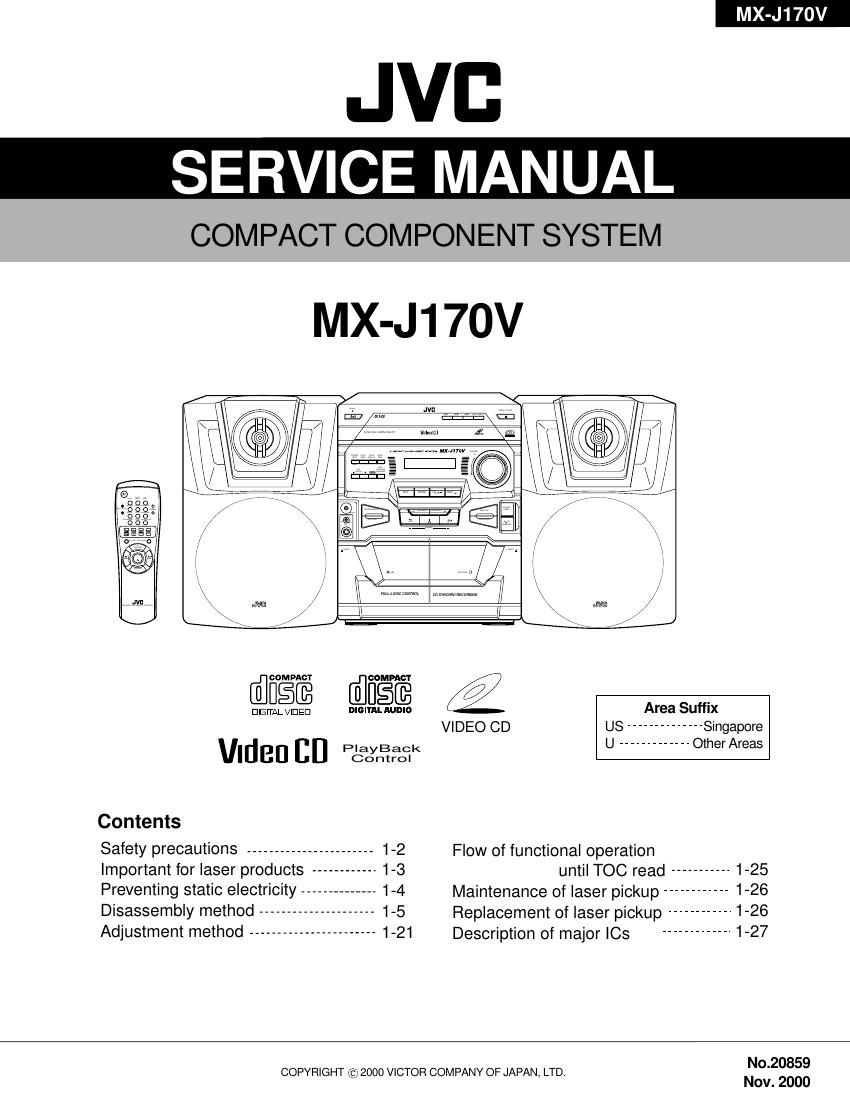

Jvc MXJ 170 V Service Manual
This is the 78 pages manual for Jvc MXJ 170 V Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc MXJ 170 V Service Manual (Ocr-read)
Page 1
MX-J170V 1-2 Safety Precautions 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only. 2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturer`s warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom. 3. Many electrical and mechanical parts in the products have special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features are identified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety characteristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards. 4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after re-assembling. 5. Leakage current check (Electrical shock hazard testing) After re-assembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock. Do not use a line isolation transformer during this check. Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet , particularly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.) Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having 1,000 ohms per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15 F AC-type capacitor between an exposed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Voltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). Warning 1. This equipment has been designed and manufactured to meet international safety standards. 2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained. 3. Repairs must be made in accordance with the relevant safety standards. 4. It is essential that safety critical components are replaced by approved parts. 5. If mains voltage selector is provided, check setting for local voltage. Good earth groundPlace this probe on each exposed metal part. AC VOLTMETER (Having 1000 ohms/volts, or more sensitivity) 1500 10W 0.15 F AC TYPE ! CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.
Page 2
MX-J170V 1-3 Important for laser products 1.CLASS 1 LASER PRODUCT 2.DANGER : Invisible laser radiation when open and inter lock failed or defeated. Avoid direct exposure to beam. 3.CAUTION : There are no serviceable parts inside the Laser Unit. Do not disassemble the Laser Unit. Replace the complete Laser Unit if it malfunctions. 4.CAUTION : The compact disc player uses invisible laserradiation and is equipped with safety switches whichprevent emission of radiation when the drawer is open and the safety interlocks have failed or are de feated. It is dangerous to defeat the safety switches.5.CAUTION : If safety switches malfunction, the laser is able to function. 6.CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. VARNING : Osynlig laserstrålning är denna del är öppnad och spårren är urkopplad. Betrakta ej strålen. VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle.Älä katso säteeseen.ADVARSEL : Usynlig laserstråling ved åbning , når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling. ADVARSEL : Usynlig laserstråling ved åpning,når sikkerhetsbryteren er avslott. unngå utsettelse for stråling. REPRODUCTION AND POSITION OF LABELS WARNING LABEL DANGER : Invisibie laser radiation when open and interlock or defeated. AVOID DIRECT EXPOSURE TO BEAM (e) VARNING : Osynlig laserstrålning är denna del är öppnad och spårren är urkopplad. Betrakta ej strålen. (s) VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle.Älä katso säteeseen. (d) ADVARSEL :Usynlig laserstråling ved åbning , når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling. (f) CLASS 1 LASER PRODUCT ! CAUTION Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
Page 14
MX-J170V 1-15 Prior to performing the following procedure, remove the CD tray. Release the two tabs j attaching the sensor board on the under side of the CD tray. Disconnect the harness from connector CW1 on the sensor board and release the harness from the two hooks k. Remove the sensor board. Remove the screw X attaching the tray turn table. Detach the tray turn table from the tray. Pull outward the tab m attaching the tray turn table motor assembly on the upper side of the tray and detach the tray turn table motor assembly from the tray. 1. 2. 3. 4. Removing the sensor board / the tray motor (See Fig.37 to 39) Align the gear-cam with the gear-tray as shown fig.28, then mount the CD tray. When assembling the CD tray, take extreme care not engage with gear - synchro. 1. 2. Reinstall the CD tray (See Fig.35 and 36) Fig.35 Gear-convertGear-convertGear-cam Gear-tray Gear-tray Gear-trayGear-cam timing point Fig.36 Gear-synchro CD tray Fig.38 Fig.37 Fig.39 Tab j Tab j Hooks k Sensor boardCW1 Tray turn table Tray X Tray turn table motor assemblyTab m
Page 65
MX-J170V 3-10 Item Parts number Parts name Area Electrical parts list(Main board) Remarks Block No. 01 A EC 7 2202-000797 C CAPACITOR EC 8 2202-000797 C CAPACITOR EC 9 2202-000781 C CAPACITOREC 10 2202-000148 C CAPACITOR EC 11 2202-000817 C CAPACITOR EC 12 2202-000817 C CAPACITOREC 20 2202-000854 C CAPACITOR ECW 1 3711-001011 CONNECTOR ED 1 0401-000101 DIODE 1N4148 ED 2 0401-000101 DIODE 1N4148 EIC 1 1204-001470 IC M65855FP EQ 1 0504-000118 TRANSISTOR KSR1003 EQ 2 0504-000118 TRANSISTOR KSR1003 EQ 3 0504-000118 TRANSISTOR KSR1003 ER 1 2001-000008 C RESISTOR ER 2 2001-000508 C RESISTOR ER 3 2001-000273 C RESISTOR ER 4 2001-000522 C RESISTOR ER 5 2001-000977 C RESISTOR ER 6 2001-000290 C RESISTOR ER 7 2001-000319 C RESISTOR ER 8 2001-000563 C RESISTOR ER 9 2001-000429 C RESISTOR ER 11 2001-000273 C RESISTORER 12 2001-000734 C RESISTOR ER 13 2001-000008 C RESISTOR ER 14 2001-000290 C RESISTORER 15 2001-000290 C RESISTOR FAN AH31-10020A FAN FC 1 2301-000375 C CAPACITORFC 2 2301-000375 C CAPACITOR FC 3 2201-000928 C CAPACITOR FC 5 2401-001975 C CAPACITORFC 6 2301-000375 C CAPACITOR FC 7 2301-000375 C CAPACITOR FC 8 2201-000928 C CAPACITOR FC 10 2202-000781 C CAPACITOR FC 11 2202-000781 C CAPACITOR FC 12 2202-000781 C CAPACITOR FC 13 2401-000907 E CAPACITOR FC 14 2401-001917 E CAPACITOR FC 15 2401-001917 E CAPACITOR FC 16 2201-000368 C CAPACITOR FC 17 2201-000368 C CAPACITOR FC 18 2401-001954 E CAPACITOR FC 19 2401-001912 E CAPACITOR FC 20 2401-001912 E CAPACITOR FC 21 2301-000379 C CAPACITORFC 22 2201-000504 C CAPACITOR FC 23 2401-001912 E CAPACITOR FC 24 2401-001912 E CAPACITORFC 25 2401-001912 E CAPACITOR FC 26 2401-001912 E CAPACITOR FC100 2401-001895 E CAPACITORFC103 2201-000368 C CAPACITOR FC104 2201-000368 C CAPACITOR FD 1 0401-000101 DIODE 1N4148 FIC 1 1204-001621 IC LC75341 FJACK3722-000377 JACK-RCA FQ 1 0504-000122 TRANSISTOR KSR1009Y FQ 2 0504-000122 TRANSISTOR KSR1009Y FQ 3 0504-001003 TRANSISTOR KSR2003 FQ 4 0501-000407 TRANSISTOR KSD471A-Y FR 1 2001-000613 C RESISTOR FR 1 3602-000147 FUSE CLIP FR 2 3601-000216 FUSE-CARTRIDGEFR 2 2001-000241 C RESISTOR FR 3 2001-000023 C RESISTOR FR 4 2001-000281 C RESISTORFR 5 2001-000281 C RESISTOR FR 6 2001-000281 C RESISTOR FR 7 2001-000613 C RESISTORFR 8 2001-000411 C RESISTOR FR 9 2001-000008 C RESISTOR FR 10 2001-000008 C RESISTOR FR 11 2001-000411 C RESISTOR FR 12 2001-000008 C RESISTOR FR 13 2001-000786 C RESISTOR FR 14 2001-000008 C RESISTOR FR 15 2001-000786 C RESISTOR FR 16 2001-000429 C RESISTOR FR 17 2001-000429 C RESISTOR FR 18 2001-000221 C RESISTOR FR 19 2001-000221 C RESISTOR FR2CL 3602-000147 FUSE CLIP FR2CL 3602-000147 FUSE CLIP FW 2 3711-002809CONNECTORFW 7 AH39-00157ELEAD-CONNECTOR FZD 1 0403-000372 ZENER DIODE JW122 2202-000854 C CAPACITORMC 1 2201-000565 C CAPACITOR MC 2 2401-000303 E CAPACITOR MC 3 2401-001975 C CAPACITORMCW 1 3711-000820CONNECTOR MD 1 0401-000101 DIODE 1N4148 MD 2 0401-000101 DIODE 1N4148 ML 1 2701-000298 INDUCTOR-AXIAL MQ 2 0501-000398 TRANSISTOR KSC945 MQ 3 0501-000610 TRANSISTOR KSA928A-Y MR 5 2001-000449 C RESISTOR MR 6 2001-000786 C RESISTOR MR 7 2001-000864 C RESISTOR MR 8 2001-000786 C RESISTOR PC 1 2401-001943 E CAPACITOR PC 2 2401-001943 E CAPACITOR PC 3 2201-000783 C CAPACITOR PC 4 2201-000783 C CAPACITOR PC 5 2201-000783 C CAPACITOR PC 6 2201-000783 C CAPACITOR PC 7 2401-003116 E CAPACITOR PC 8 2401-001413 E CAPACITORPC 9 2401-001954 E CAPACITOR PC 10 2401-001954 E CAPACITOR PC 11 2401-001895 E CAPACITORPC 13 2401-001895 E CAPACITOR PC 14 2401-001954 E CAPACITOR PC 15 2401-001954 E CAPACITORPC 16 2401-001912 E CAPACITOR PC 17 2401-000475 E CAPACITOR PC 18 2401-001975 C CAPACITOR PC 19 2401-000475 E CAPACITOR PC 20 2401-000230 E CAPACITOR PC 21 2401-001954 E CAPACITOR PC 23 2201-000783 C CAPACITOR PC 24 2201-000783 C CAPACITOR PC 25 2401-001975 C CAPACITOR Item Parts number Parts name Area Remarks A
Page 77
MX-J170V 3-22 Item Parts number Parts nameArea A Parts list(Packing) Q'ty Description Block No. M5MM P 1 AH69-00180DCARTON 1 P 2 AH69-00152ACUSHION-L 1 L P 3 AH69-00153ACUSHION-R 1 R P 4 AH69-30012TPE-BAG 1 P 5 18654-101-071PE-BAG I.B 1 P 6 AH81-00243MBOTTOM CUSHION 1 SPEAKER P 7 AH81-00243LTOP CUSHION 1 SPEAKER P 8 AH81-00243PPOLY BAG 2 SPEAKER P 9 AH69-00185APAD-ROLE A 1 P 10 AH69-00185BPAD-ROLE B 1 SPEAKER Item Parts number Parts nameArea A Parts list(Accessories) Q'ty Description Block No. M6MM A 1 AH59-00045AREMOCON 1 A 2 AH42-20001SLOOP ANT 1 A 3 AH38-10001AFM WIRE ANT 1 A 4 ---------------BATTERY 2 A 5 AC39-42001LCABLE RF 1 A 6 AH68-00337FINSTRUCTIONS 1 ENG CHI ARA A 7 3721-000117CONVERSION PLUG A 1 A 8 MXJ100K-SPBOXSPEAKER BOX 2
