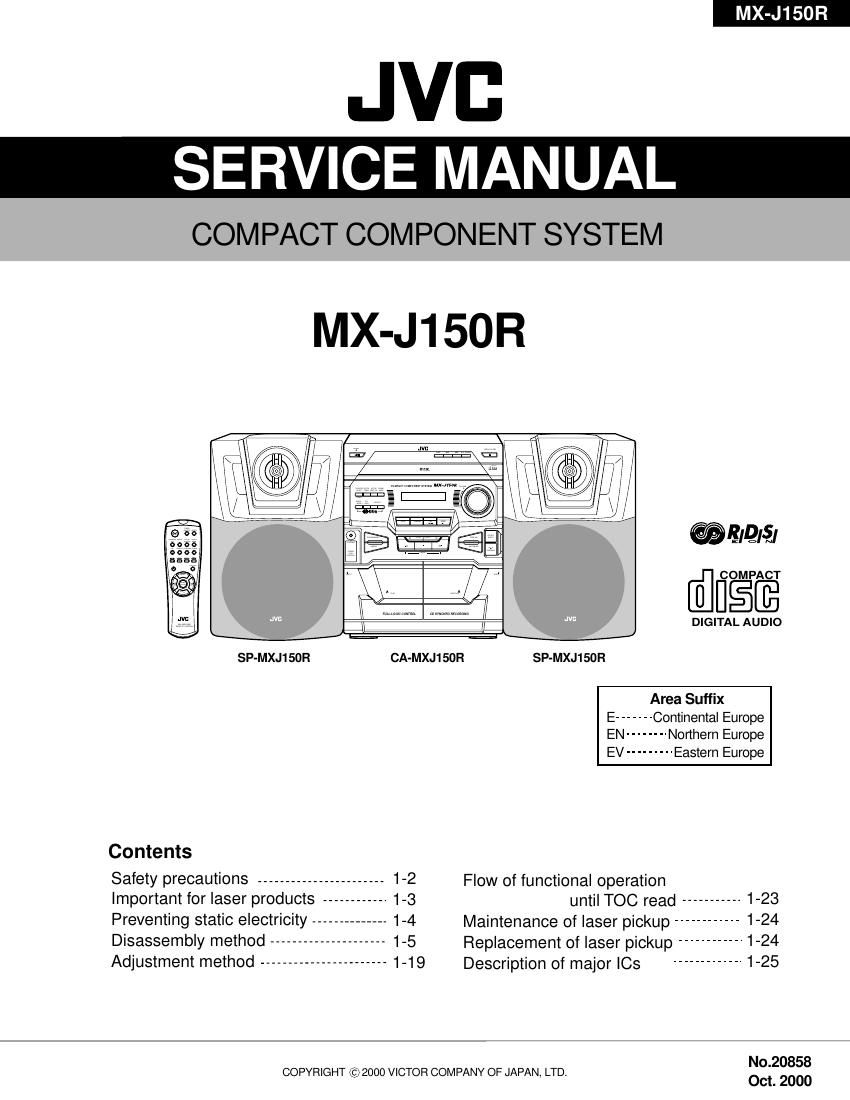

Jvc MXJ 150 R Service Manual
This is the 32 pages manual for Jvc MXJ 150 R Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc MXJ 150 R Service Manual (Ocr-read)
Page 1
MX-J150R 1-2 Safety Precautions 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only. 2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturer`s warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom. 3. Many electrical and mechanical parts in the products have special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features are identified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety characteristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards. 4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after re-assembling. 5. Leakage current check (Electrical shock hazard testing) After re-assembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock. Do not use a line isolation transformer during this check. Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet , particularly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.) Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having 1,000 ohms per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15 F AC-type capacitor between an exposed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Voltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). Warning 1. This equipment has been designed and manufactured to meet international safety standards. 2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained. 3. Repairs must be made in accordance with the relevant safety standards. 4. It is essential that safety critical components are replaced by approved parts. 5. If mains voltage selector is provided, check setting for local voltage. Good earth groundPlace this probe on each exposed metal part. AC VOLTMETER (Having 1000 ohms/volts, or more sensitivity) 1500 10W 0.15 F AC TYPE ! CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.
Page 2
MX-J150R 1-3 Important for laser products 1.CLASS 1 LASER PRODUCT 2.DANGER : Invisible laser radiation when open and inter lock failed or defeated. Avoid direct exposure to beam. 3.CAUTION : There are no serviceable parts inside the Laser Unit. Do not disassemble the Laser Unit. Replace the complete Laser Unit if it malfunctions. 4.CAUTION : The compact disc player uses invisible laserradiation and is equipped with safety switches whichprevent emission of radiation when the drawer is open and the safety interlocks have failed or are de feated. It is dangerous to defeat the safety switches.5.CAUTION : If safety switches malfunction, the laser is able to function. 6.CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. VARNING : Osynlig laserstrålning är denna del är öppnad och spårren är urkopplad. Betrakta ej strålen. VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle.Älä katso säteeseen.ADVARSEL : Usynlig laserstråling ved åbning , når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling. ADVARSEL : Usynlig laserstråling ved åpning,når sikkerhetsbryteren er avslott. unngå utsettelse for stråling. REPRODUCTION OF LABELS ! CAUTION Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check. CLASSIFICATION LABEL, PLACED ON REAR ENCLOSURE WARNING LABEL, PLACED INSIDE THE UNIT CLASS 1 LASER PRODUCT DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e) ADVARSEL: Usynlig laser- stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsæt- telse for stråling (d) VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)VARO: Avattaessa ja suo- jalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)
Page 5
MX-J150R 1-6Prior to performing the following procedure, remove the top cover and the side covers. Press the POWER button. Press the OPEN/CLOSE button to eject the CD tray. Move the CD tray fitting upward and release the joint b. Press the OPEN/CLOSE button to insert the CD tray. 1. 2. 3. Removing the CD tray fitting (See Fig.4 to 6) Be sure to remove the CD tray fitting before removing the CD changer unit. ATTENTION: Turn the black loading pulley gear marked c from the back of the CD changer unit as shown in Fig.7 and draw the CD tray toward the front. Move the CD tray fitting upward and release the joint b. Push and insert the CD tray manually. 1. 2. 3. Removing the CD tray fitting (See Fig.5 to 7) - How to eject the CD tray without turning on power - Fig.4 Fig.5 Fig.6 Fig.7 POWER button OPEN/CLOSE button CD tray Joint b Joint b CD tray fitting CD tray Marked c Loading pulley gear
Page 19
MX-J150R 1-20 FM THD Adjustment Output Output 28 dB( ±2dB) 60 dB Minimum Distortion (0.3% below) (Figure 1-1) SSG FREQ. Adjustment point (TL3)98 MHz FM DETECTOR COIL FM Search Level Adjustment Adjust TSR1 so that TUNED of FL T is lighted (Figure 1-2) Figure1-2 FM Auto Search Level Adjustment *Adjust FM S.S.G level to 28dBFigure1-1 IF CENTER and THD Adjustment SSG FREQ. Adjustment point (TSR1)98 MHz BEACON SENSITIVITY SEMI-VR(20K½) FM S.S.GGND28 dB FM S.S.GOutput GND Speaker TerminalFM Antenna Terminal Distortion MeterInput SET Input outputOscilloscope FM IN FM Antenna SET 20 k½ OUTPUT AM SSG 450KHZ INPUT AM ANT IN Speaker Terminal 60cm TL2 VTVM Oscilloscope AM(MW) I.F Adjustment Maximum output (Figure 1-3) SSG FREQ. Frequency Adjustment point (TL2)450 kHz 520 kHz AM I.F COIL Figure1-3 AM I.F Adjustment OUTPUT
