Jvc MXGT 91 R Schematic
This is the 10 pages manual for Jvc MXGT 91 R Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc MXGT 91 R Schematic (Ocr-read)
Page 1
JVB

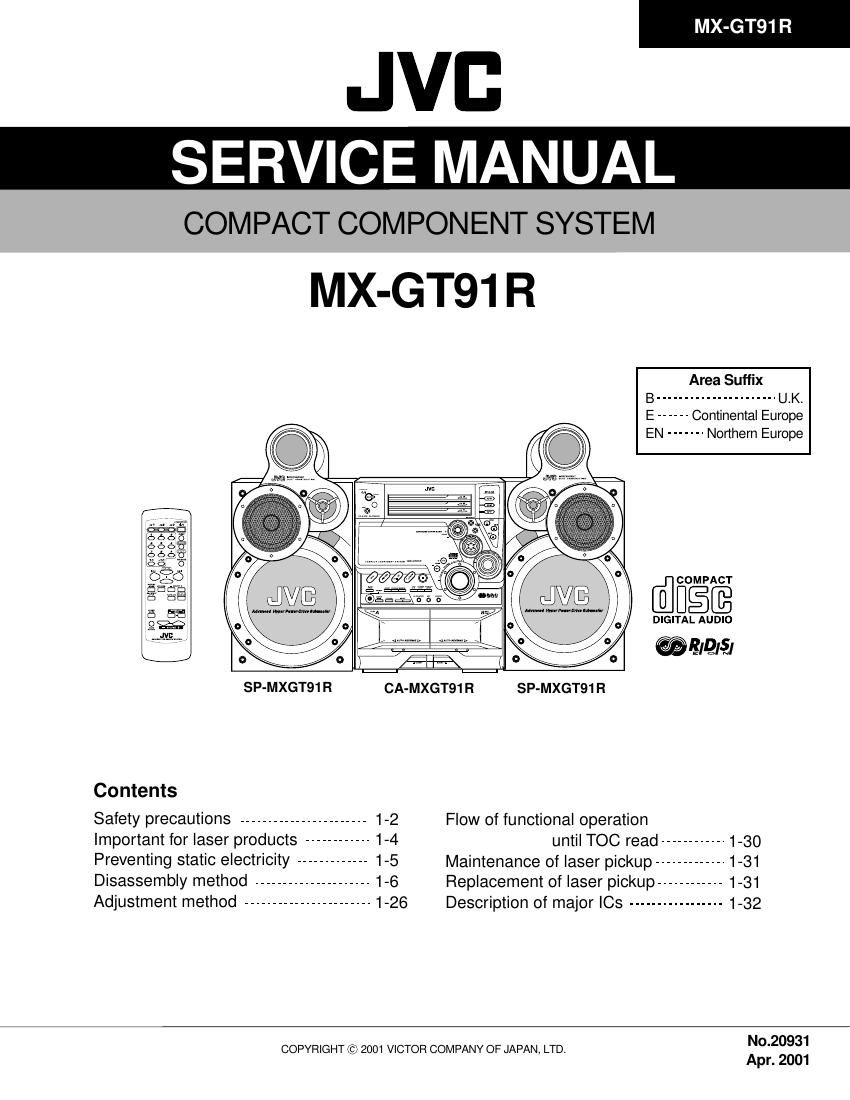

SERVICE MANUAL
COMPACT COMPONENT SYSTEM
MX-GT91 R
Area Suffix
B ---------------------- U.K.
E ------ Continental Europe
EN ------- Northern Europe
[flfiwspé
DIGITAL AUDIO
@EIQM
SP-MXGT91R CA-MXGT91R SP-MXGT91R
Contents
Safety precautions --------------------- 1-2 Flow of functional operation
Important for laser products ------------ 1-4 until TOC read ........... 1.30
Preventing static electricity ------------- 1-5 Maintenance of laser pickup ---------- 1.31
Disassembiy method --------------------- 1-6 Replacement of laser pickup-- ..... 1-31
Adjustment method ----------------------- 1-26 Description of major ICs ................. 1-32
No.20931
COPYRIGHT (c) 2001 VICTOR COMPANY OF JAPAN, LTD.
Apr. 2001
