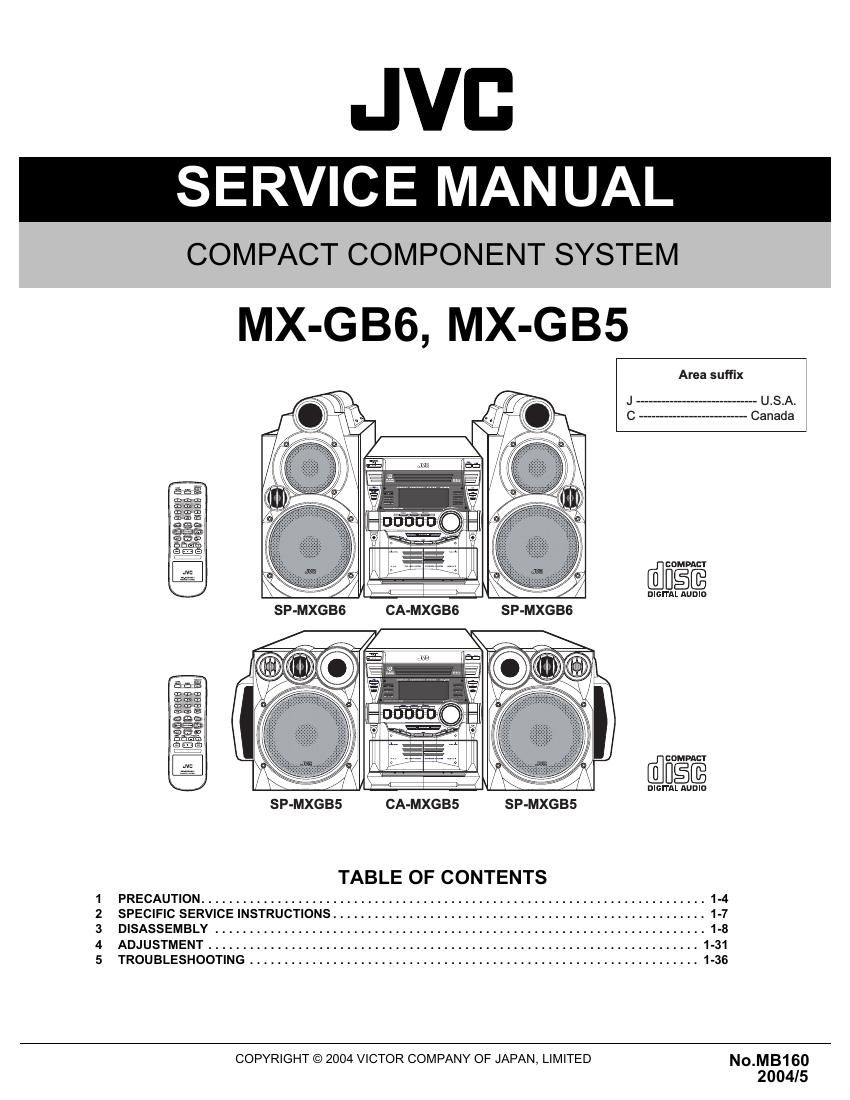

Jvc MXGB 5 Service Manual
This is the 85 pages manual for Jvc MXGB 5 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc MXGB 5 Service Manual (Ocr-read)
Page 1
1-2 (No.MB160) SPECIFICATION Amplifier section-CA-MXGB6 Speaker section-SP-MXGB6 Design and specifications are subject to change without notice. Output Power SUBWOOFERS 170 W per channel, min. RMS, driven into 6 Ω at 63 Hz with no more than 10% total harmonic distortion. MAIN SPEAKERS 80 W per channel, min. RMS, driven into 4 Ω at 1 kHz with no more than 10% total harmonic distortion. Audio input sensitivity/Impedance (at 1 kHz, measured at MAIN SPEAKERS)AUX:400 mV/50 kΩ Speakers/Impedance Subwoofers 6 Ω - 16 Ω Main speakers 4 Ω - 8 Ω Tuner FM tuning range 87.50 MHz - 108.00 MHz AM tuning range 530 kHz - 1 710 kHz CD player CD Capacity 3 CDs Dynamic range 85 dB Signal-to-noise ratio 85 dB Cassette deck Frequency response Normal (type I) 50 Hz - 14 000 Hz Wow and flutter 0.15% (WRMS) General Power requirement AC 120 V , 60 Hz Power consumption 230 W (at operation) 23.8 W (on standby) Dimensions (approx.) 270 mm × 317 mm × 480 mm (W/H/D) (10 11/16 in. × 12 1/2 in. × 18 15/16 in.) Mass (approx.) 10.5 kg (23.2 lbs) Type 3-way bass-reflex type Speaker units Subwoofer 20 cm (7 7/8 in.) cone × 1 Main Woofer 12 cm (4 3/4 in.) cone × 1 Tweeter 5 cm (2 in.) cone × 1 Power handling capacity Subwoofer 170 W Main speaker 80 W Impedance Subwoofer 6 Ω Main speaker 4 Ω Frequency range Subwoofer 25 Hz - 100 Hz Main speaker 100 Hz - 20 000 Hz Sound pressure level Subwoofer 75 dB/W·m Main speaker 82 dB/W·m Dimensions (approx.) 233 mm × 456 mm × 360 mm (W/H/D) (9 3/16 in. × 18 in. × 14 3/16 in.) Mass (approx.) 6.6 kg (14.6 lbs) each
Page 2
(No.MB160)1-3 Amplifier section-CA-MXGB5 Speaker section-SP-MXGB5 Design and specifications are subject to change without notice. Output Power SUBWOOFERS 160 W per channel, min. RMS, driven into 6 Ω at 63 Hz with no more than 10% total harmonic distortion. MAIN SPEAKERS 70 W per channel, min. RMS, driven into 4 Ω at 1 kHz with no more than 10% total harmonic distortion. Audio input sensitivity/Impedance (at 1 kHz, measured at MAIN SPEAKERS)AUX:400 mV/50 kΩ Speakers/Impedance Subwoofers 6 Ω - 16 Ω Main speakers 4 Ω - 8 Ω Tuner FM tuning range 87.50 MHz - 108.00 MHz AM tuning range 530 kHz - 1 710 kHz CD player CD Capacity 3 CDs Dynamic range 85 dB Signal-to-noise ratio 85 dB Cassette deck Frequency response Normal (type I) 50 Hz - 14 000 Hz Wow and flutter 0.15% (WRMS) General Power requirement AC 120 V , 60 Hz Power consumption 220 W (at operation) 23.3 W (on standby) Dimensions (approx.) 270 mm × 317 mm × 480 mm (W/H/D) (10 11/16 in. × 12 1/2 in. × 18 15/16 in.) Mass (approx.) 10 kg (22.1 lbs) Type 4-way bass-reflex type Speaker units Subwoofer 16 cm (6 5/16 in.) cone × 1 Main Woofer 16 cm (6 5/16 in.) cone × 1 Tweeter 2 cm (13/16 in.) dome × 1 Midrange 5 cm (2 in.) cone × 1 Tweeter 2 cm (13/16 in.) dome × 1 Power handling capacity Subwoofer 160 W Main speaker 70 W Impedance Subwoofer 6 Ω Main speaker 4 Ω Frequency range Subwoofer 25 Hz - 90 Hz Main speaker 90 Hz - 20 000 Hz Sound pressure level Subwoofer 75 dB/W·m Main speaker 86 dB/W·m Dimensions (approx.) 302.5 mm × 325.5 mm × 345 mm (W/H/D) (11 15/16 in. × 12 7/8 in. × 13 5/8 in.) Mass (approx.) 6.6 kg (14.6 lbs) each
