MX-GA3V

JVC

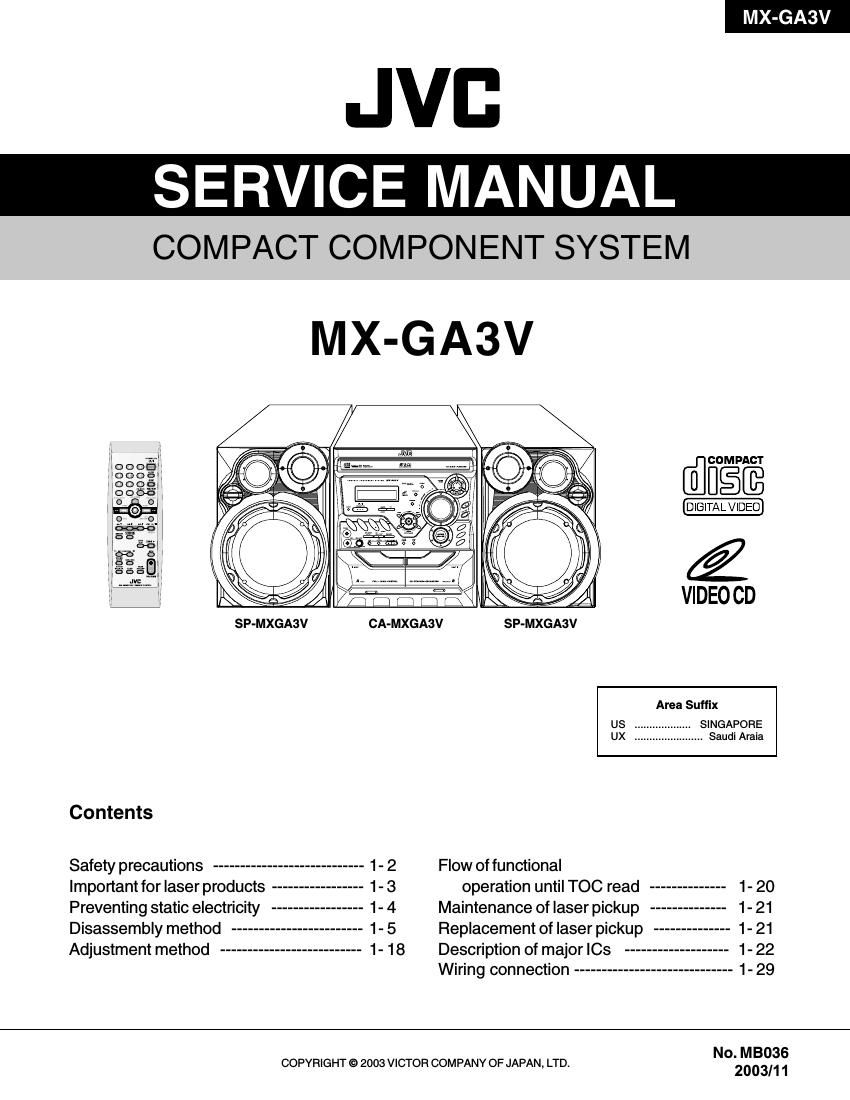

SERVICE MANUAL

COMPACT COMPONENT SYSTEM

MX-GA3V

__ COMPACT
888% Law
888%

_IGITAL VIDEO
9, <2.
VIDEO CD
SP-MXGASV CA-MXGA3V SP-MXGASV
Area Suffix
US SINGAPORE
Saudi Araia

Contents

Safety precautions ---------------------------- 1- 2 Flow of functional

lmportantfor laser products ----------------- 1- 3 operation until TOC read -------------- 1- 20

Preventing static electricity ----------------- 1- 4 Maintenance of laser pickup -------------- 1- 21

Disassembly method ---------- Replacement of laser pickup - ----- 1- 21

Adjustment method -------------------------- 1- 18 Description of major ICs ---- -- 1- 22

Wiring connection ----------------------------- 1- 29
No. M3036

COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD.

2003/11

Page 2

MX-GASV

1-2

- Safety Precautions

1.

This design of this product contains special hardware and many circuits and components specially for
safety purposes. For continued protection, no changes should be made to the original design unless
authorized in writing by the manufacturer. Replacement parts must be identical to those used in the
original circuits. Services should be performed by qualified personnel only.

. Alterations of the design or circuitry of the product should not be made. Any design alterations of the

product should not be made. Any design alterations or additions will void the manufacturers warranty
and will further relieve the manufacture of responsibility for personal injury or property damage
resulting therefrom.

. Many electrical and mechanical parts in the products have special safety-related characteristics. These

characteristics are often not evident from visual inspection nor can the protection afforded by them
necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are identified in the Parts List of
Service Manual. Electrical components having such features are identified by shading on the
schematics and by (A) on the Parts List in the Service Manual. The use of a substitute replacement
which does not have the same safety characteristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or other hazards.

. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be

separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention
of electric shock and fire hazard. When service is required, the original lead routing and dress should
be observed, and it should be confirmed that they have been returned to normal, after re-assembling.

. Leakage currnet check (Electrical shock hazard testing)

After re-assembling the product, always perform an isolation check on the exposed metal parts of the
product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.)
to be sure the product is safe to operate without danger of electrical shock. Do not use a line isolation
transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the
leakage current from each exposed metal parts of the cabinet, particularly any exposed metal part
having a return path to the chassis, to a known good earth ground. Any leakage current must not
exceed 0.5mA AC (r.m.s.)

0 Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or
more sensitivity in the following manner. Connect a 1,500910W resistor paralleled by a 0.15/4F AC-

m-wa-t

type capacitor between an exposed metal part AC VOLTMETER
and a known good earth ground. Measure the AC 1 (Having 1000
voltage across the resistor with the AC voltmeter. ohms/volts,
Move the resistor connection to each exposed or more sensitivity)
metal part, particularly any exposed metal part ° °
having a return path to the chassis, and meausre
the AC voltage across the resistor. Now, reverse 0.15#F AC TYPE
the plug in the AC outlet and repeat each -ll- Place this
measurement. Voltage measured Any must not WV w PFObe 0
exceed 0.75 V AC(r.m.s.). This corresponds to 0.5 each exposed
mA AC(r.m.s.). 15009 low metal part.
Good earth ground
- Warning

. This equipment has been designed and manufactured to meet international safety standards.

. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
. Repairs must be made in accordance with the relevant safety standards.

. It is essential that safety critical components are replaced by approved parts.

. If mains voltage selector is provided, check setting for local voltage.

- ACAUTION

Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
