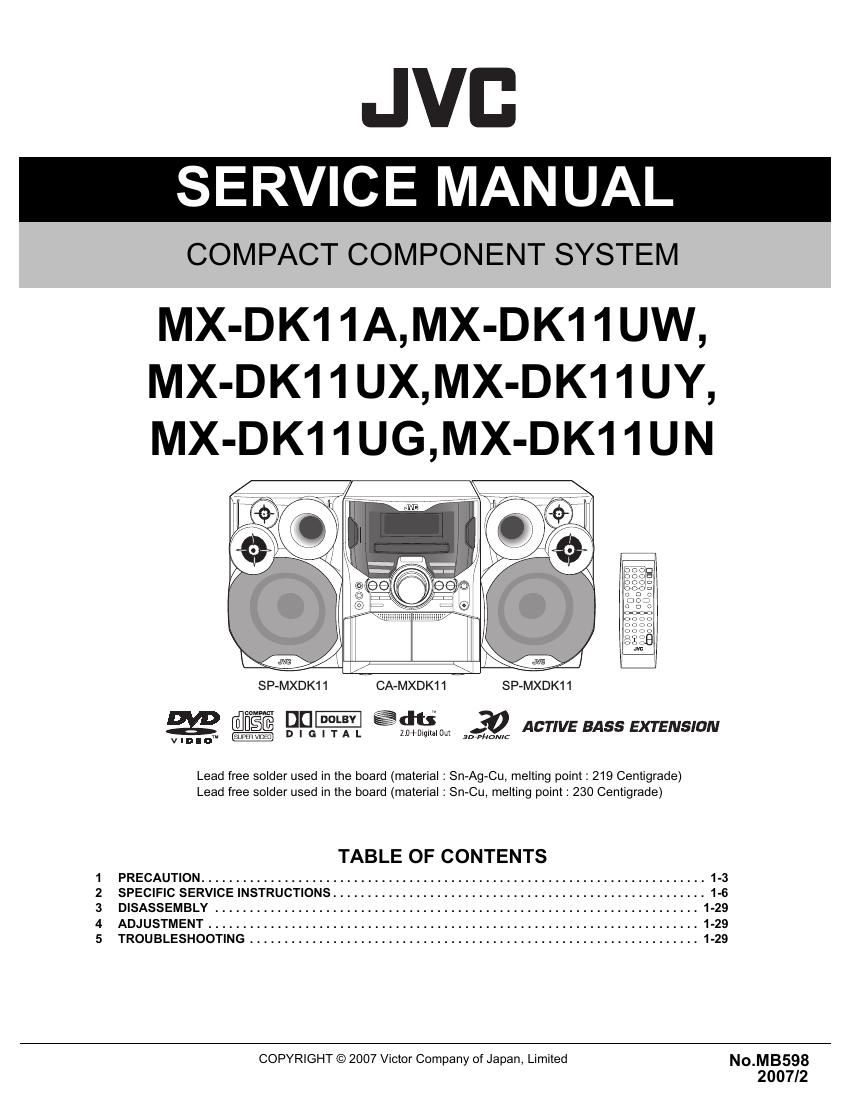

Jvc MXDK 11 Ux Service Manual

Page 2

SPECIFICATION

Amplifier section

Output Power

90 W per channel, min. RMS, driven into 6 (2 at 1 kHz with no more than
10% total harmonic distortion.

Digital output

OPTICAL DIGITAL OUTPUT : -21 dBm to -15 dBm (660 nm :30 nm)

Audio input sensitivity/
impedance *1

AUX Z 400 mV/47 k9
MIC : 3.0 mV/50 kQ

VIDEO OUT Color system

NTSC/PAL selectable

VIDEO (composite)

1 V(p-p)/75 n

S-VIDEO

Y (luminance) : 1 V(p-p)/75 Q
C (chrominance, burst) : 0.286 V(p-p)/75 £2

Speaker Terminals

69-1652

Tuner section

FM tuning range

87.50 MHZ - 108.00 MHZ

AM (MW) tuning range

531 kHz - 1 710 kHz (at 9 kHz)
530 kHz - 1 710 kHz (at 10 kHz)

For Saudi Arabia only

531 kHz - 1 602 kHz (at 9 kHz)
530 kHz - 1 600 kHz (at 10 kHz)

Disc player section

Playable disc

DVD Video/CD/VCD/SVCD

CD-Rl-RWI-ROM
(CD/VCD/SVCD/MP3/WMA/JPEG/MPEG-1/MPEG-2 format)
DVD-Rl-RW

(DVD Video/DVD Video Recording (VR)/MP3/WMA/JPEG/MPEG-1/
MPEG-2 format)

+R/+RW

(DVD Video format)
Dynamic range 90 dB
Horizontal resolution 500 lines

Wow and flutter

Immeasurable

Cassette deck section

Frequency response Normal (type I)

50 HZ - 14 000 Hz

Wow and flutter

0.15% (WRMS)

General

Power requirement

AC 110 V/AC 127 VIAC 220 V/AC 230 V -AC 240 V, (adjustable
with the voltage selector), 50 Hz / 60 Hz

Power consumption

at operation: 95 W, on standby: 17 W

Dimensions (approx)

265 mm X 337 mm X 370 mm (WIH/D)

Mass (approx)

7.9 kg

*1: Measured at 1 kHz, with tape recording signal 400 mV.

- Manufactured under license from Dolby Laboratories. "Dolby, "Pro Logic", and the double-D symbol are trademarks of Dolby Lab-

oratories.

- "DTS" is a registered trademark of DTS, inc. and "DTS 2.0+Digital Out" is a trademark of DTS, Inc.
- Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/

or other countries.

- This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

- Design and specifications are subject to change without notice.

1-2 (NDMBSQS)
