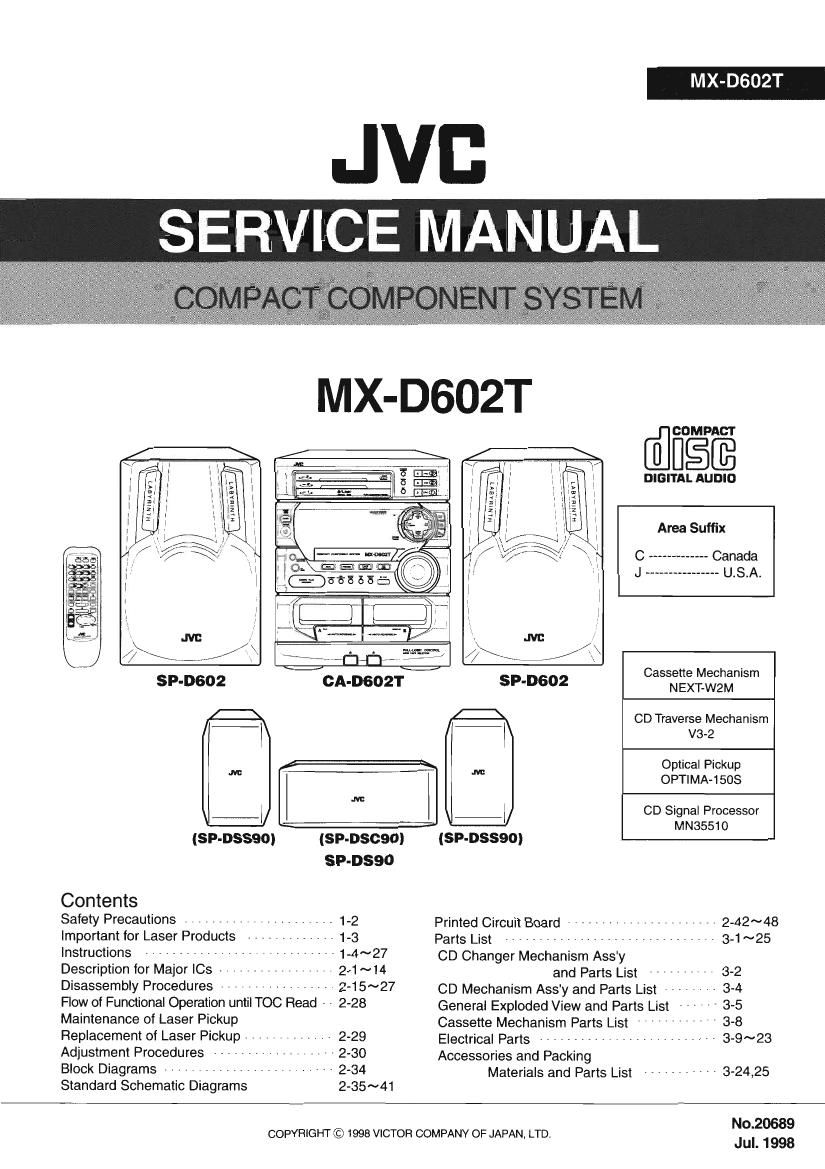

Jvc MXD 602 T Service Manual

Page 1

JVB

xi , r w _; r [tree

DIGITAL AUDIO

an

thmm
ujififiav-i

mum

r Area Suffix

; r C -------- Canada

/t\
Cassette Mechanism
NEXT-W2M
CD Traverse Mechanism
v3-2
Optical Pickup
OPTIMA-1505
CD Signal Processor
MN35510
(SP-D5590) (SP-03690) (SP-08590)
SP-DSSO
Contents
Safety Precautions ---------------------- 1-2 Printed Circuit Board ---------------------- 2-42~43
Important for Laser Products ------------- 1-3 Parts List .......................... , , , 3.1 ~ 25
Instructions """""""" ' ' """" 1-4~27 CD Changer Mechanism Assy
Description lor Major ICs ----------------- 2-1 ~14 and Parts List »»»»»»»»»» 3.2
Disassembly Procedures ---------------- 2-15~27 CD Mechanism Ass'y and Parts List , , - , 3.4
Flow of Functional Operation untilTOC Read - - 2-28 General Exploded View and Parts List ...... 3_5
Maintenance 0f Laser PM? Cassette Mechanism Parts List ********* 3-8
Replacement oi Laser Pickup ------------- 2-29 Electrical Parts ................ , , , , , , , 3.9~23
Adjustment Procedures """ ' ******* 2'30 Accessories and Packing
Block Diagrams --------------------- , , , 2-34 Materials and Parts List ----------- 3-2425
Standard Schematic Diagrams 2-35~41
No.20689
COPYRIGHT © 1995 VICTOR COMPANY OF JAPAN. LTD,

Jul. 1998

Page 2

MX-D602T

-Safety Precautions

1.This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection. no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturers
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by (its) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts. high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)

After re-assembling the product, always perform an isolation check on the exposed metal parts

of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control

shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

. Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet,particularly any exposed
metal part having a return path to the chassis. to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)

. Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per voit or more sensitivity in the following manner. Connect a 1,5009 10W resistor paralleled by

a 0.1511F AC-type capacitor between an exposed Ac voLTMETER
metal part and a known good earth ground. a (Having 1000
Measure the AC voltage across the resistor with the ohms/volts,

AC voltmeter. or more sensitivity)
Move the resistor connection to eachexposed metal

part, particularly any exposed metal part having a 0.15uF AC TYPE

return path to the chassis, and meausre the AC -|| Place "1,5
voltage across the resistor. Now, reverse the plug in 7 probe on

the AC outlet and repeat each measurement. voltage JWV ' each exposed
measured Any must not exceed 0.75V AC (r.m.s.). 15°09 10 "retainer!-

This corresponds to 0.5 mA AC (r.m.s.). Good earth ground

-Warnmg
1.This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.

A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

1-2

Page 45

I Removal of the Rear Panel Assembly

. Remove the metal cover.
. Remove the CD changer mechanism assembly.
. Remove seven screws F fastening the rear panel.
. Remove'two screws G fastening the rear cover.
. Remove one screw H fastening the pin jack of the rear
panel.
6. Remove three screws'l fastening the heat sink of the
rear panel.
7. Use a screwdriver, etc to disengage the two engagements
bottom chassis clips @ and G?) from the bottom part of the
side panels of the rear panel assembly.

O'I-bO-JN-l

I Removal of the Main Amplifier Board

1. Remove the rear panel.

2. Remove one screw J fastening the main amplifier board
and bottom chassis to the side panel of the main unit.
3. Disconnect the main amplifier board CN415 and CNOOG

from the power amplifier board.

MX-D602T

2-17
