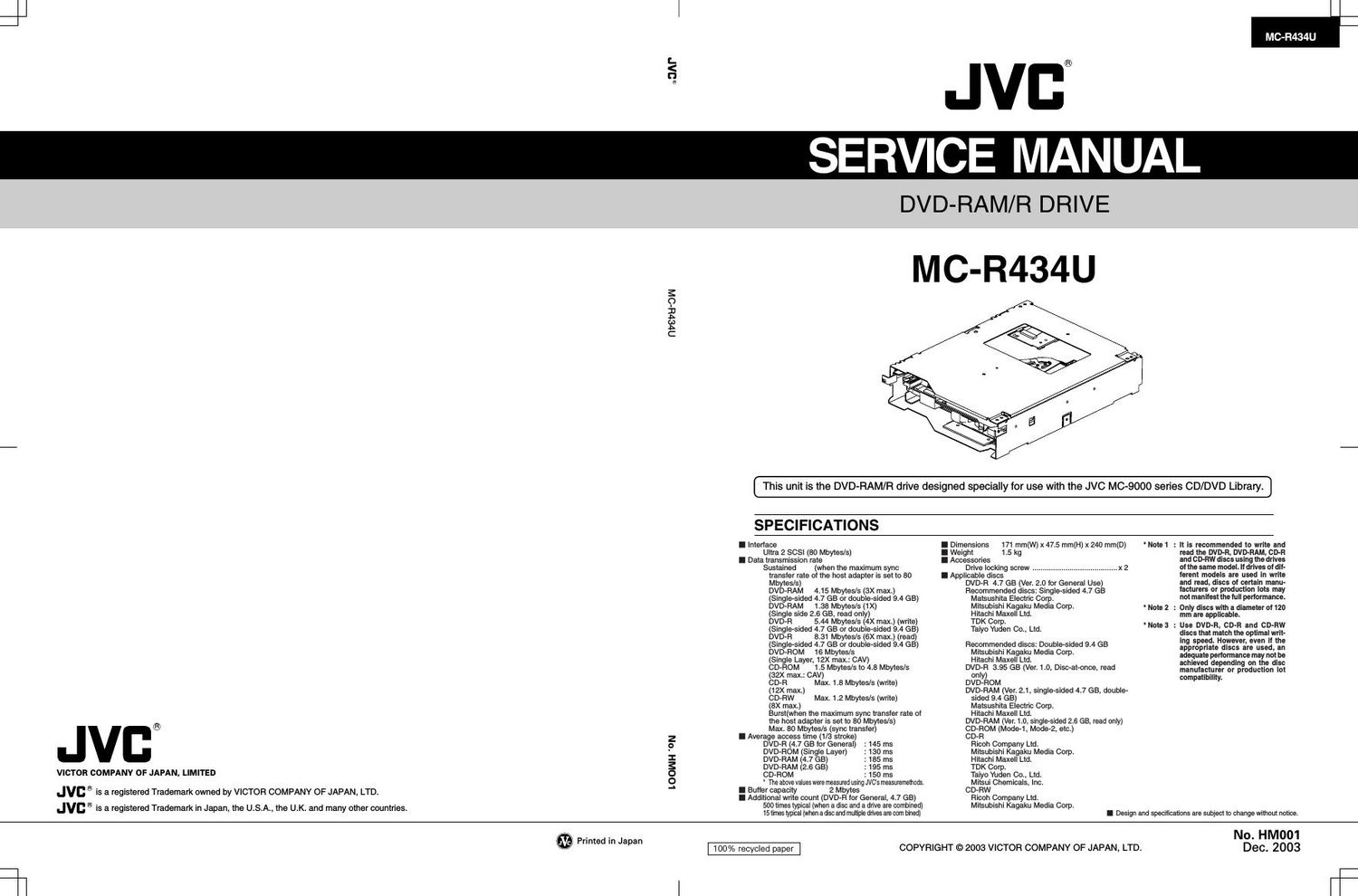

Jvc MCR 434 U Service Manual
This is the 4 pages manual for Jvc MCR 434 U Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc MCR 434 U Service Manual (Ocr-read)
Page 1
1 Removing a disc that remains in the drive CONN2 PCB Internal StructureEject cam Push Continue pushing the stick in to rotate the eject cam until the tray comes out. Operational Precautions 1. To avoid electric shock, be sure to turn the power off before proceeding to the following operation. 2. When taking out the disc, take care not to leave fingerprints or scratches on the recording surface of the disc. Operation procedure 1. Insert a thin stick with a diameter of about 1 mm into the rectangular hole on the front of the drive and push it in to rotate the eject cam.
Page 2
2 PACKING INSTRUCTION LST0172-001A SCREW SS49420-B3006N × 2 PACKING CASE SS35463-014 CUSHION SS35473-003FRONT PAD SS412068 N. PLATE SS412447-002CUSHION SS35473-004
