.13

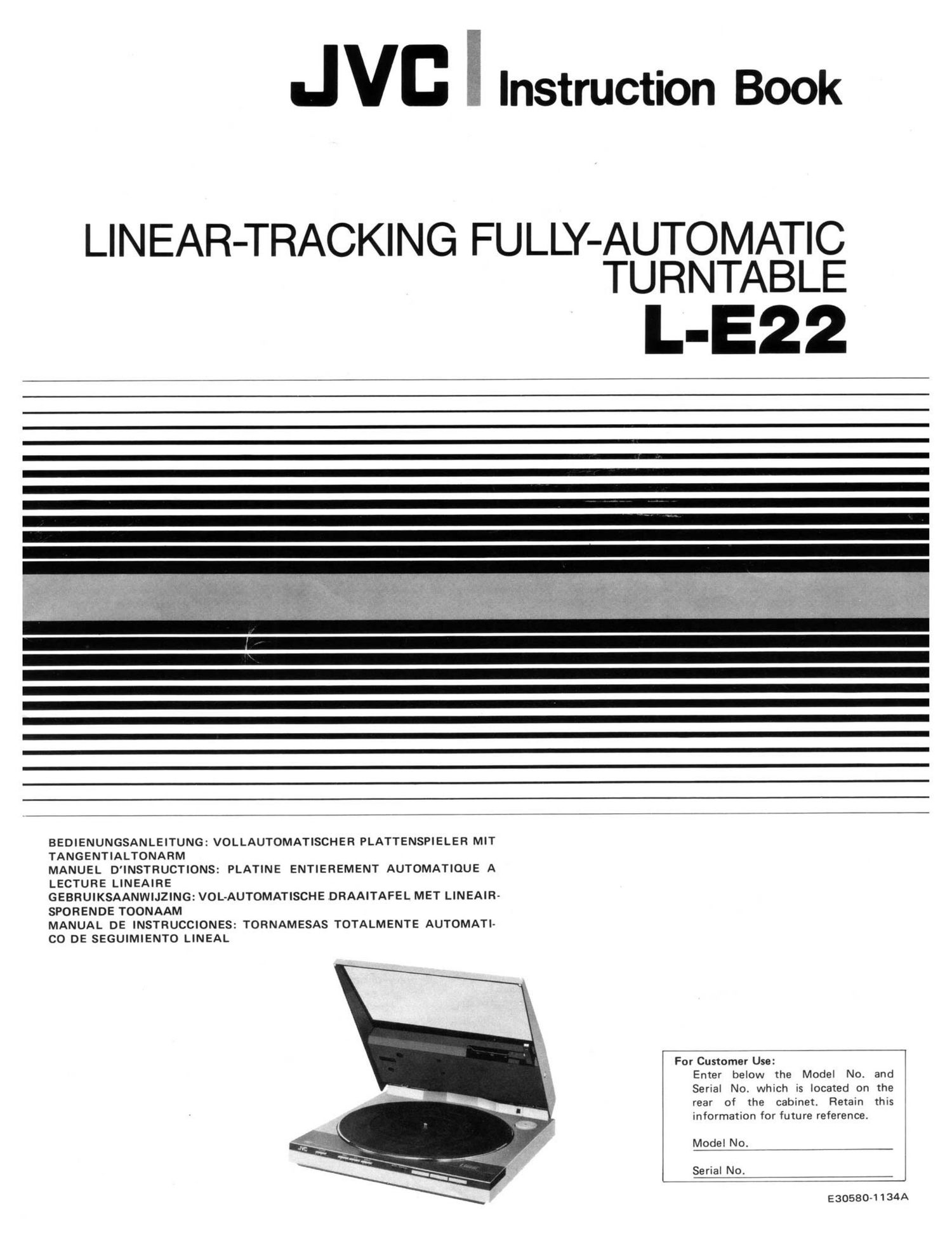

Instruction Book

LINEAR-TRACKING FULLY-AUTOMATIC
TURNTABLE

L-E22

xv ,
' f.»

BEDIENUNGSANLEITUNG: VOLLAUTOMATISCHER PLATTENSPIELER MIT

TANGENTIALTONARM

MANUEL D'INSTRUCTIONS: PLATINE ENTIEREMENT AUTOMATIOUE A
LECTURE LINEAIRE

GEBRUIKSAANWIJZING: VOL-AUTOMATISCHE DRAAITAFEL MET LINEAIR-
SPORENDE TOONAAM

MANUAL DE INSTRUCCIONES: TORNAMESAS TOTALMENTE AUTOMATI-
CO DE SEGUIMIENTO LINEAL

For Customer Use:
Enter below the Model No. and
Serial No. which is located on the
rear of the cabinet. Retain this
information for future reference.

Model No.

Serial No. J

E30580-1134A
