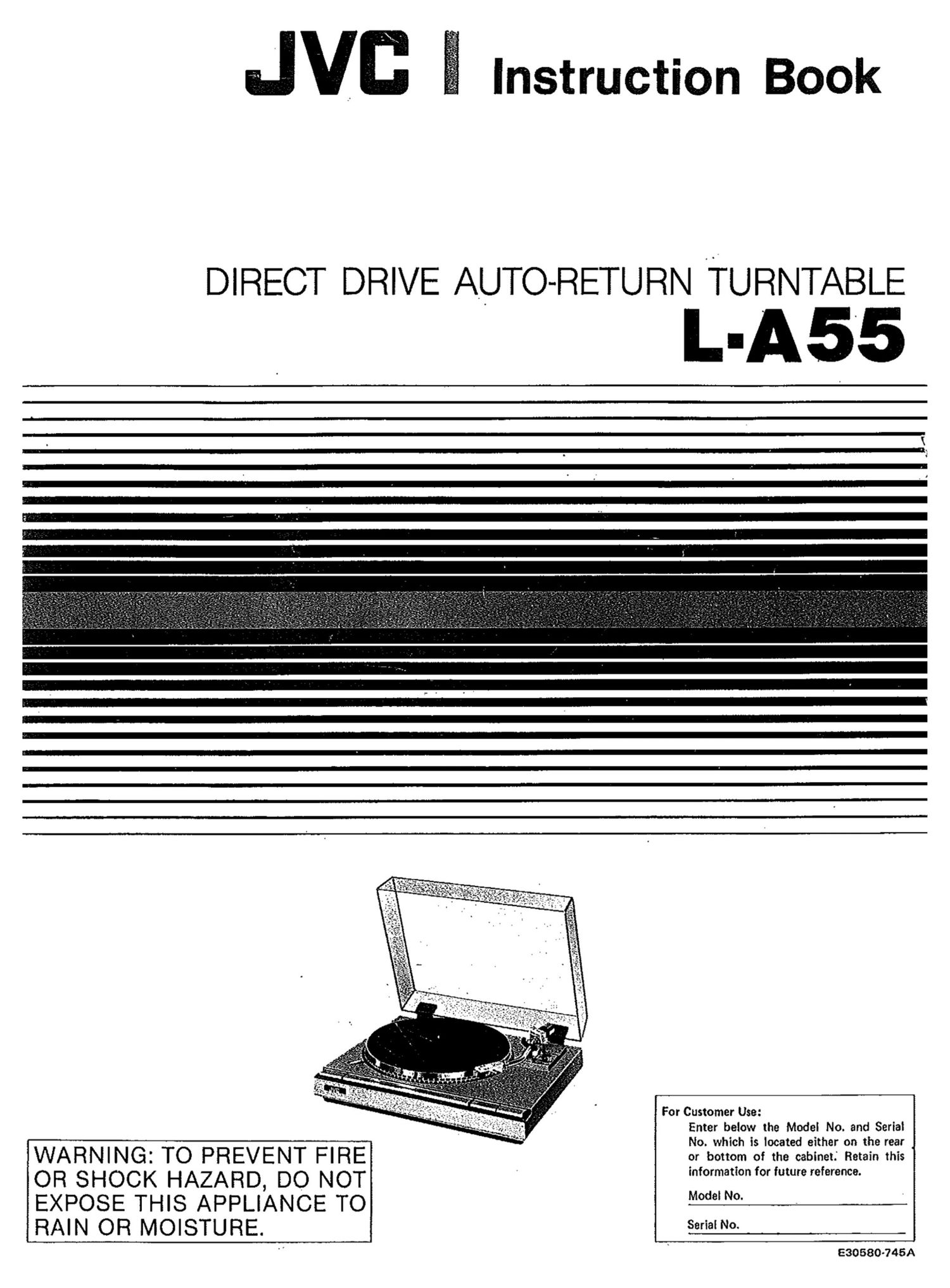

Instruction Book

DIRECT DRIVE AUTO-RETURN TURNTABLE

L-A55

WARNING: TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

For Customer Use:
Enter below the Model No. and Serial
No. which is located either on the rear .
or bottom of the cabinet; Retain this
information for future reference.

Model No.

Serial No.

E30580745A

Page 2

IMPORTANT (In the United Kingdom)
Mains Supply (AC 240 Vw, 50 Hz only)

IIMPORTANT]

Do not make any connection to the Larger Terminal coded
E or Green. The wires in the mains lead are coloured in

accordance with following code:
Blue to N (Neutral) or Black
Brown to L (Live) or Red

If these colours do not correspond with the terminal identi-
fications of your plug, connect as follows:

Blue wire to terminal coded N (Neutral) or coloured Black.
Brown wire to terminal coded L (Live) or coloured Red.

If in doubt - consult a competent electrician.

THIS EQUIPMENT SHOULD BE DISCONNECTED FROM
THE MAINS WHEN NOT IN USE.

INTRODUCTION

Thank you for purchasing JVC's L-A55 Direct Drive Auto-
Return turntable. Many advanced features of this turntable
will be correctly and efficiently utilized only when you
read this instruction book, understand it and operate the
turntable correctly. Wishing you happy and successful
listening.

WARNING

Dangerous voltage inside.~

CAUTION

To prevent electric shock, do not remove screws, covers

or cabinet.
No user-serviceable parts inside. Refer servicing to qualified
service personnel.

WARNING

To prevent fire or shock hazard, do not expose this appli-I
ance to rain or moisture.

CONTENTS

Introduction ............................... I
Preparations ............................... 2
Operation (How to use) . . . . ................... 3
Adjustment ............................... 4
Mountingcartridge...............' ........... 5
Stylus replacement .......................... 5
Troubleshooting ................. . .......... 5

Specifications .............................. 6
