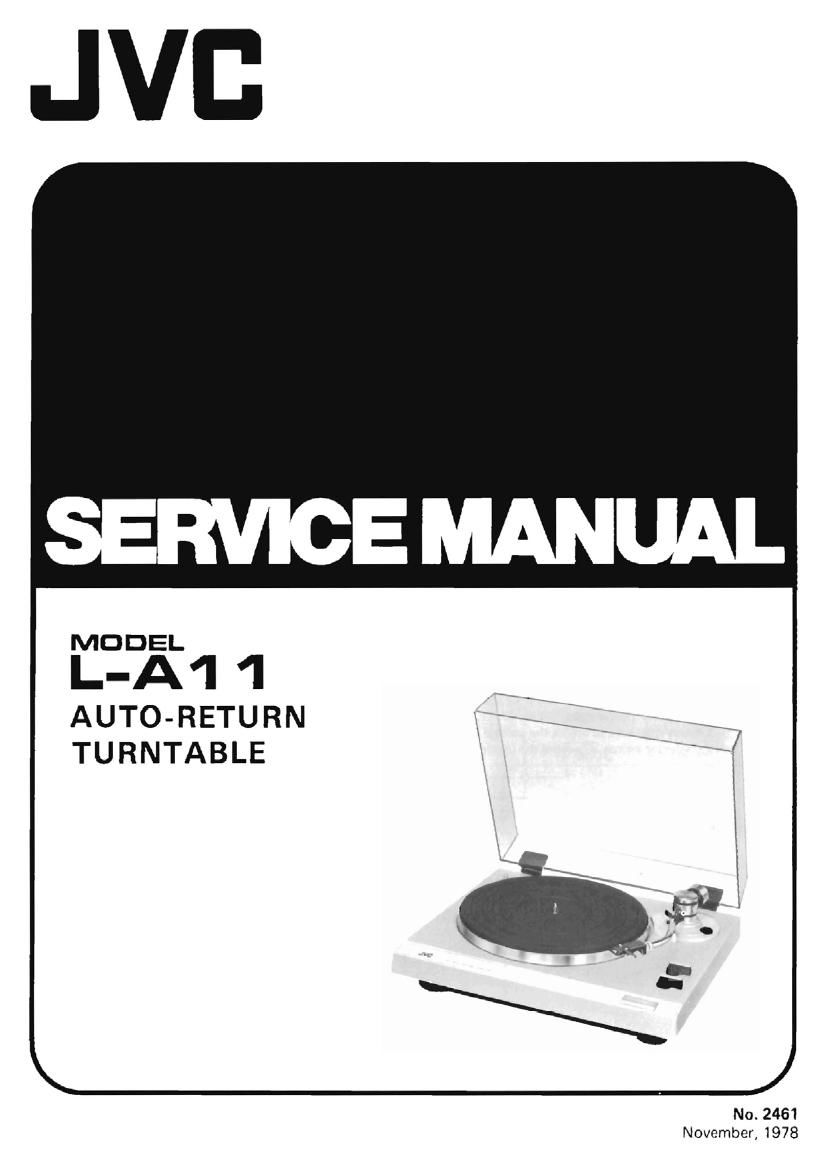

Jvc L A11 Service Manual
This is the 16 pages manual for Jvc L A11 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc L A11 Service Manual (Ocr-read)
Page 2
Contents
Pages
1. Specifications .............................................................. 2
2. "How to Operate" (Names and Functions) ........................................... 3
3. Operation of Automatic Mechanism .............. . ...... . . . . . . . . . . . . . . . . ..... . . . . .3
4. Cartridge Replacement ........................................................ 4
5. Adjustment Procedures
5-l 1) Overhang Adjustment .............................. . ................... 5
5-(2) Headshell Anglo Adiustment ............................................. 5
5-(3) Tonearm Lifter Height Adjustment ......................................... 5
5-(4) Autoreturn (Lead-out) Adjustment ........................................ 5
5-(5) Tracking Force Adjustment ............................. . . . . . . . . . . . . . . . . .5
5-(6) Anti-skating Adjustment ................................................ 6
5-0) Pulley Height Adjustment ............................................... 6
6.Lubrication .................................... ................. 6
7. Exploded Views and Parts List
7-(1) Mechanism Assembly .................................................. 7
Hz) Cabinet Assembly .................................................... 9
7-(3) Tonearrn Assembly .................................................. 10
HA) Mechanism Base and Motor Assembly . ................................ . . . . . 10
7-(5) Parts List with Specified Numbers for Designated Areas .......................... 11
8. Packing Materials and Part Numbers .............................................. 12
9. Accessories List ............................................................ 13
10. L-A11 Schematic Diagrams for Designated Areas ..................................... 14
Warning: When replacing the parts marked with /?, . be sure to use the designated parts to ensure safety.
CHECKING YOUR LINE VOLTAGE (For U.S. Military Market and Other Countries)
Belore inserting the power plug, please check this setting to see that it corresponds with the line voltage in your
area. If it doesn't. be sure to adjust the voltage selector switch to the proper setting before operating this equipment.
The voltage selector switch is located the inside chassrsi
No.2461 _ 1 _
