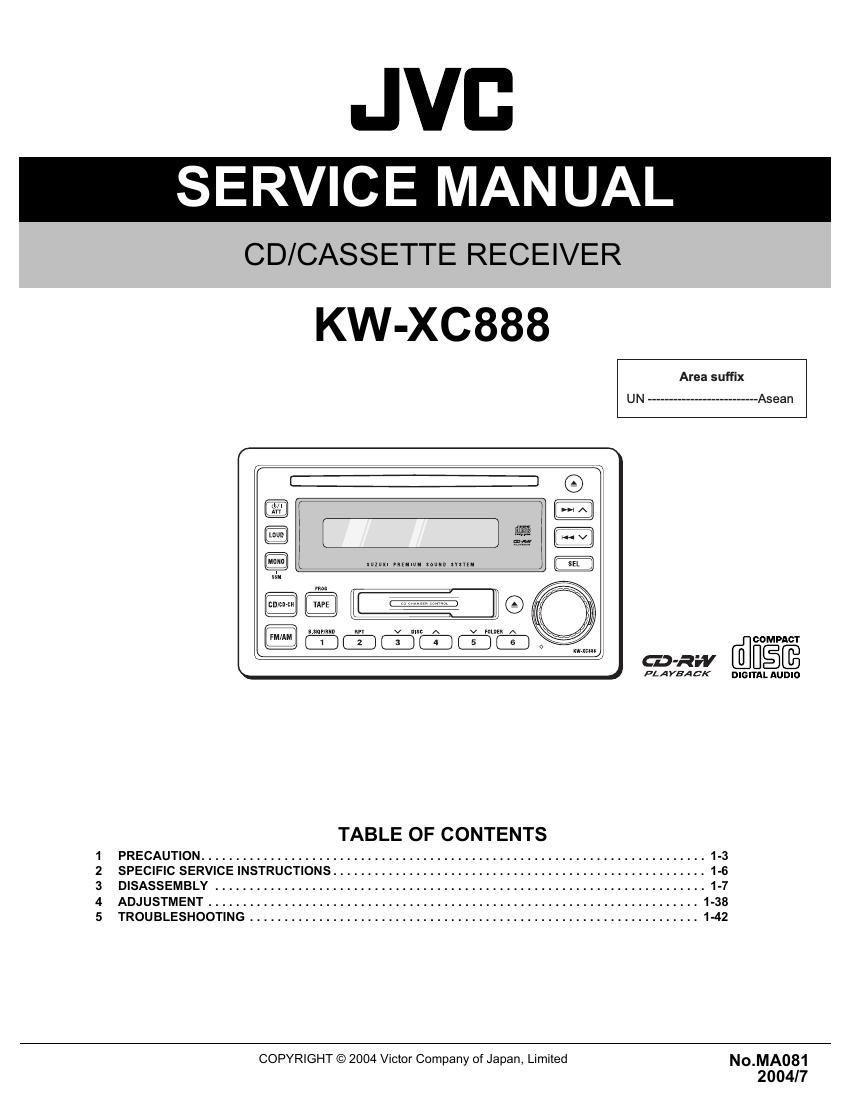

Jvc KWXC 888 Service Manual
This is the 75 pages manual for Jvc KWXC 888 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KWXC 888 Service Manual (Ocr-read)
Page 1
1-2 (No.MA081) SPECIFICATION Design and specifications are subject to change without notice.AUDIO AMPLIFIER SECTION Maximum Power Output (DC 16V) Front 50 W per channel Rear 50 W per channel Continuous Power Output (10% THD) Front 25 W per channel into 4 Ω. Rear 25 W per channel into 4 Ω. Load Impedance 4 Ω (4 to 8 Ω allowance) TUNER SECTION Frequency Range FM 87.5 MHz to 108.0 MHz AM 531 kHz to 1 602 kHz [FM Tuner] Usable Sensitivity 6 dBµV Stereo Separation 28 dB [AM Tuner] Sensitivity 30 dB µV CD PLAYER SECTION Type Compact disc player Signal Detection System Non-contact op tical pickup (semiconductor laser) Number of channels 2 channels (stereo) Frequency Response 30 Hz to 20 000 Hz Signal-to-Noise Ratio 75 dB Wow and Flutter Less than measurable limit Channel Separation (1 kHz) 65 dB CASSETTE DECK SECTION Frequency Response 30 Hz to 16 000 Hz Wow and Flutter 0.2 % (WRMS) GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System Negative ground Dimensions (W × H × D) Installation Size 178 mm × 100 mm × 175 mm Front Panel Size 183 mm × 103 mm × 15 mm Mass 2.2 kg (excluding accessories)
Page 2
(No.MA081)1-3 SECTION 1 PRECAUTION 1.1 Safety Precautions ! Burrs formed during molding may be left over on some parts of the chassi\ s. Therefore, pay attention to such burrs in the case of preforming repair of this sys\ tem. ! Please use enough caution not to see the beam directly or touch it in ca\ se of an adjustment or operation check.
