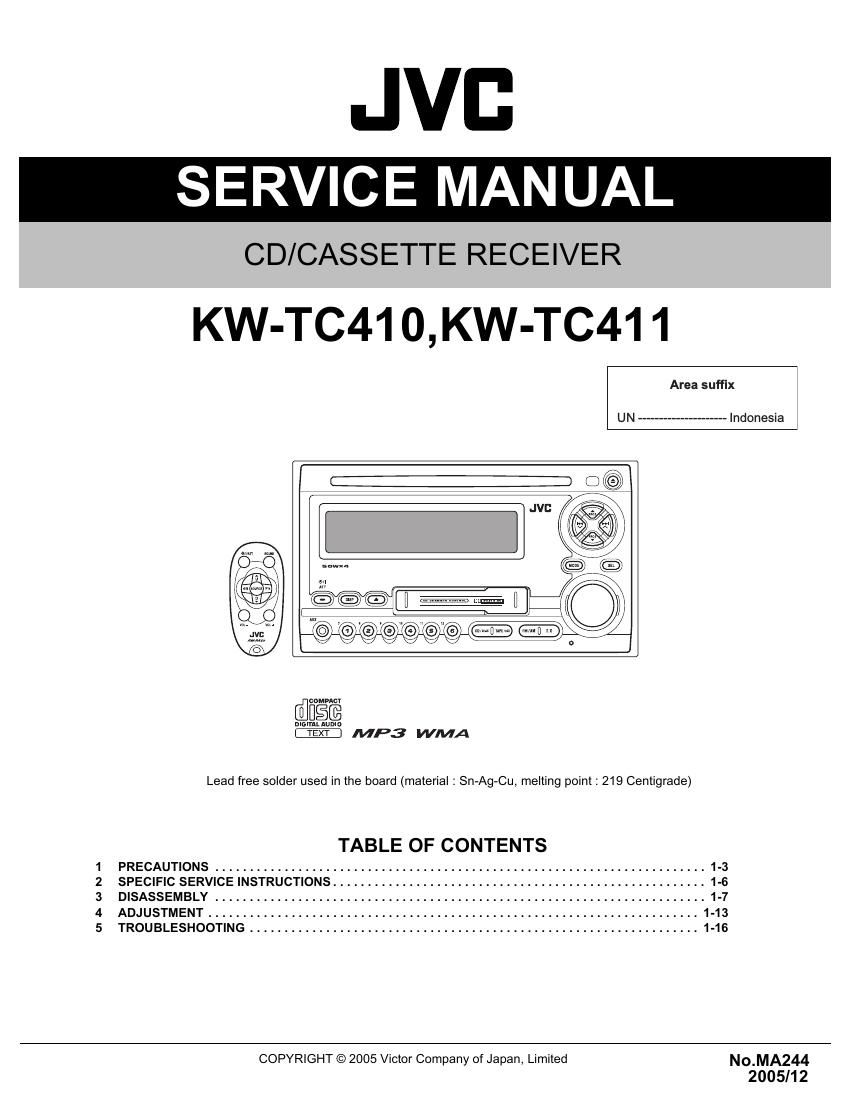

Jvc KWTC 411 Service Manual
This is the 77 pages manual for Jvc KWTC 411 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KWTC 411 Service Manual (Ocr-read)
Page 1
1-2 (No.MA244) SPECIFICATION Design and specification are subject to change without notice. AUDIO AMPLIFIER SECTION Maximum Power Output Front 50 W per channel Rear 50 W per channel Continuous Power Output (RMS)Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Load Impedance 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range Low ±12 dB (60 Hz, 80 Hz, 100 Hz, 120 Hz) Mid ±12 dB High ±12 dB (8 kHz, 10 kHz, 12 kHz, 15 kHz) Frequency Response 40 Hz to 20 000 Hz Signal-to-Noise Ratio 70 dB Line-Out Level/Impedance 2.0 V/20 k Ω load (full scale) Output Impedance 1 k Ω Other terminals CD changer, AUX (auxiliary) input jack TUNER SECTION Frequency Range FM 87.5 MHz to 108.0 MHz AM 531 kHz to 1 602 kHz [FM Tuner] Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz) 65 dB Frequency Response 40 Hz to 15 000 Hz Stereo Separation 30 dB Capture Ratio 1.5 dB [AM Tuner] Sensitivity 20 µV Selectivity 35 dB CD PLAYER SECTION TypeCompact disc player Signal Detection System Non-contact optical pickup (semiconductor laser) Number of Channels 2 channels (stereo) Frequency Response 5 Hz to 20 000 Hz Dynamic Range 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter Less than measurable limit MP3 Decoding Format (KW-TC411/KW-TC410 only) MPEG1/2 Audio Layer 3 Max. Bit Rate: 320 kbps WMA (Windows Media® Audio) Decoding Format (KW-TC411/KW-TC410 only) Max. Bit Rate: 192 kbps CASSETTE DECK SECTION Wow and Flutter 0.1 % (WRMS) Fast-Wind Time 100 sec. (C-60) Frequency Response 30 Hz to 16 000 Hz (Normal tape) Signal-to-Noise Ratio (Normal tape)Dolby B NR ON 65 dB Dolby B NR OFF 56 dB Stereo Separation 40 dB GENERAL Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature 0 °C to +40 °C Dimensions (W × H × D) Installation Size (approx.) 178 mm × 100 mm × 158 mm Set Size (approx.) 178 mm × 100 mm × 177 mm Mass (approx.) 2.3 kg (excluding accessories)
Page 2
(No.MA244)1-3 SECTION 1 PRECAUTIONS 1.1 Safety Precautions ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. ! Please use enough caution not to see the beam directly or touch it in case of an adjustment or operation check.
