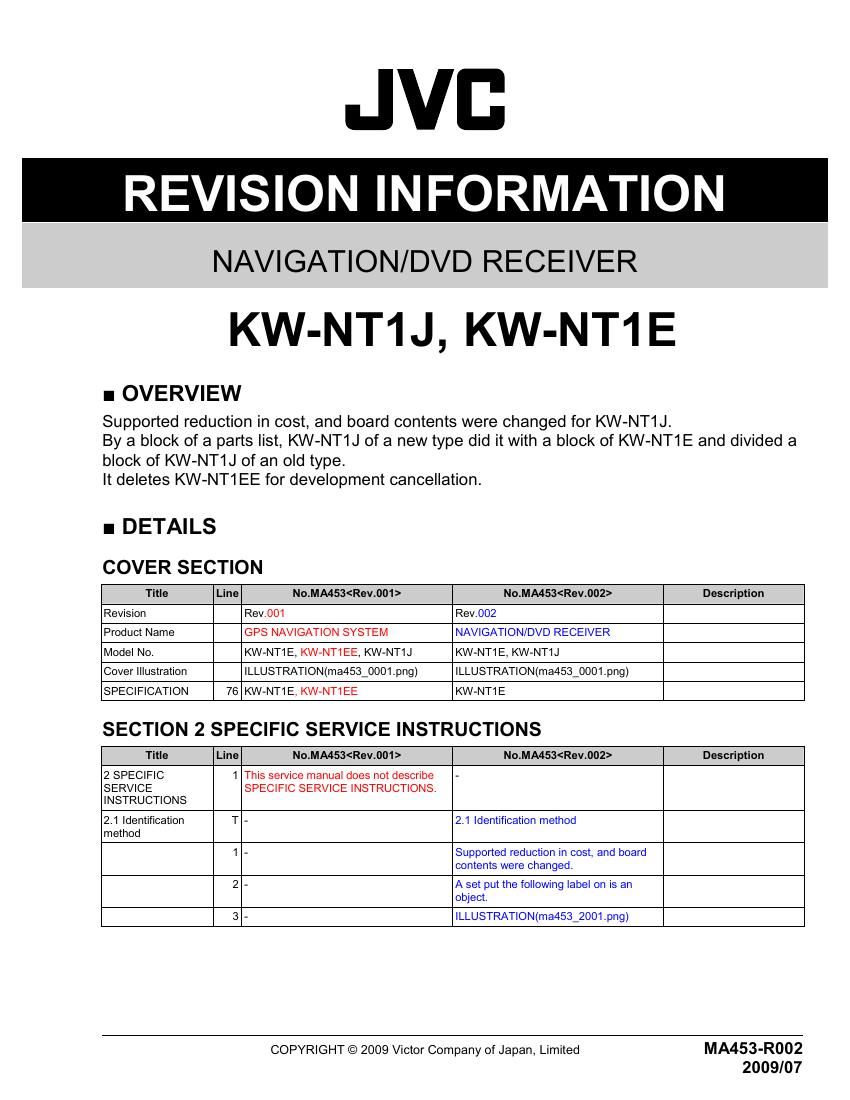

JVB
REVISION INFORMATION
NAVIGATION/DVD RECEIVER
KW-NT1 J, KW-NT1 E
I OVERVIEW
Supported reduction in cost, and board contents were changed for KW-NT1J.
By a block of a parts list, KW-NT1J of a new type did it with a block of KW-NT1E and divided a
block of KW-NT1J of an old type.
It deletes KW-NT1EE for development cancellation.
I DETAILS
Title Line No.MA453
Revision Rev.001 Rev.002
Product Name GPS NAVIGATION SYSTEM NAVIGATION/DVD RECEIVER
Model No. KW-NTIE, KW-NTIEE, KW-NTIJ KW-NT1 E, KW-NT1J
Cover Illustration ILLUSTRATION(ma45370001.png) ILLUSTRATION(ma4537OOO1.png)
SPECIFICATION 76 KW-NT1 E, KW-NT1EE KW-NT1 E
Title Line No.MM53
2 SPECIFIC 1 This service manual does not describe
SERVICE SPECIFIC SERVICE INSTRUCTIONS.
INSTRUCTIONS
2.1 Identification T - 2.1 Identification method
method
1 - Supported reduction in cost, and board
contents were changed.
2 - A set put the following label on is an
object.
3 - ILLUSTRATION(ma453_2001.png)
COPYRIGHT © 2009 Victor Company of Japan, Limited MA453-R002
2009/07
