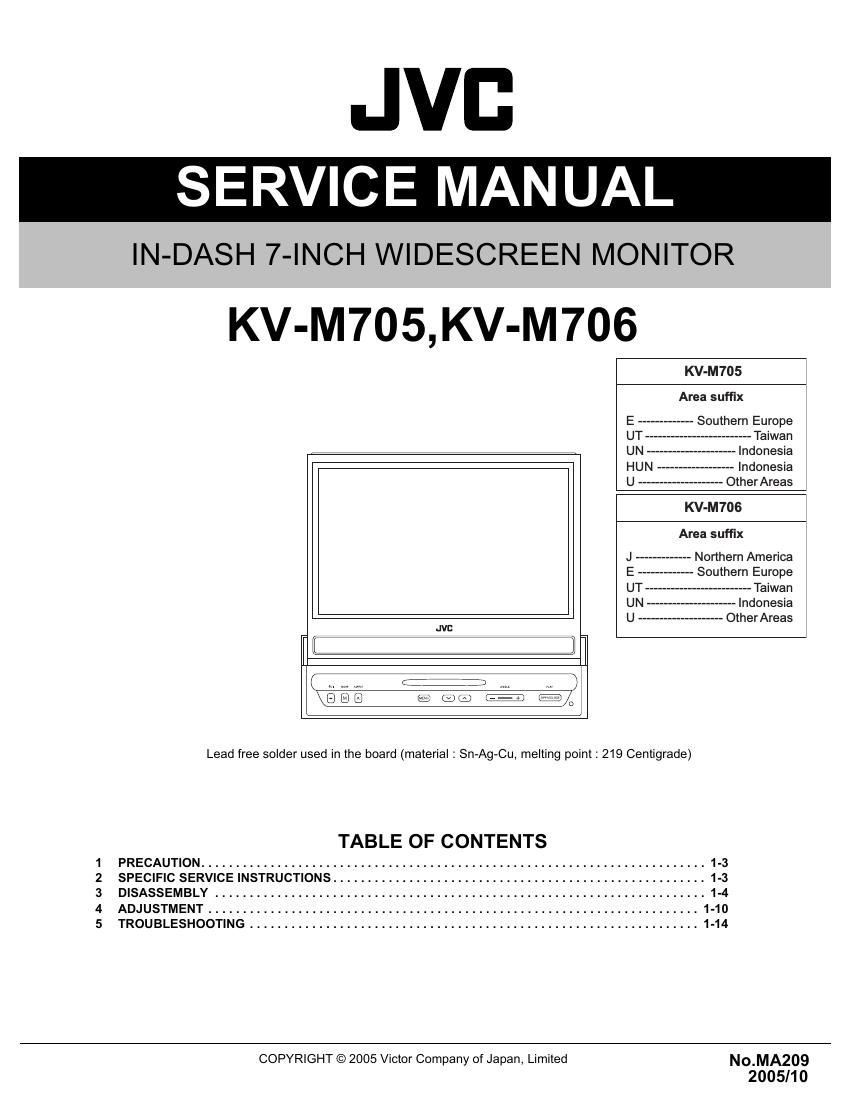

Page 1

JVC

SERVICE MANUAL

lN-DASH 7-INCH WIDESCREEN MONITOR

KV-M705,KV-M706

KV-M705

Area suffix

. Southern Europe
-------------- Taiwan
Indonesia
-- Indonesia
-- OtherAreas

KV-M706

Area suffix

J ............. Northern America
- Southern Europe
--« Taiwan
lndonesia
OtherAreas

JVD

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

TABLE OF CONTENTS

PRECAUTION ......................................................................... 1-3
SPECIFIC SERVICE INSTRUCTIONS . . ........................ 1-3
DISASSEMBLY ........................................... 1-4
ADJUSTMENT ...............
TROUBLESHOOTING .........

UIszN-L

COPYRIGHT © 2005 Victor Company of Japan, Limited No.MA209
2005/10

Page 2

SPECIFICATION

Screen

7 inch liquid Clystal panel

Number of pixel

336 960 pixels (480 vertical X 234 horizontal X 3)

Drive method

TFT (Thin Film Transistor) active matrix format

Color system

NTSC/ PAL

Input Video RCA pin X 2 circuits 1 V(p-p), 75 0
Audio RCA pin X 2 circuits 1.5 V(rms)

Output Video RCA pin X 1 circuit 1 V(p-p), 75 £2
Audio RCA pin X 1 circuit 1.5 V(rms)

Other terminal

AV bus (AV BUS)

Power requirement

Operating voltage

DC 144 V (11 V to 16 V allowance)

Grounding system

Negative ground

Allowable operating temperature

0°C to +40°C (32°F to 104°F)

Allowable storage temperature

-1 0°C to +60°C (14°F to 140°F)

Dimensions (W X H X D)

installation size (approx)

With sleeve-mounting plate Type B (standard)

: 182 mm X 52 mm X 165 mm (7-3/16 in X 2-1/16 in. X 6-1/2 in)
With sleeve-mounting plate Type A

: 182 mm X 52 mm X 160 mm (7-3/16 in X 2-1/16 in. X 6-5/16 in)

Panel size (approx)

188 mm X 58 mm X 14 mm (7-7/16 in X 2-5/16 in, X 5/8 in.)

Mass (approx)

1.6 kg (3.6 lbs)

Design and specifications are subject to change without notice.

1-2 (NotMAZOQ)
