Jvc KSRT 35 Service Manual

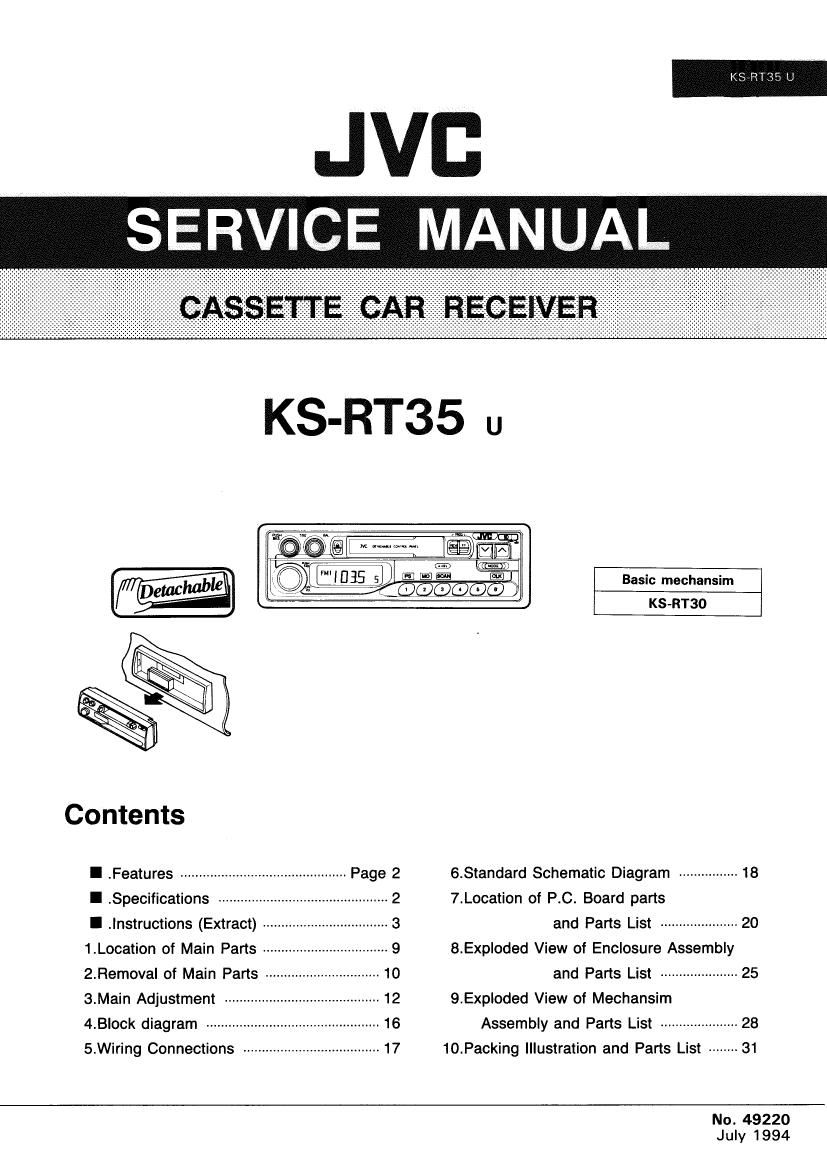

Page 1

JVD

Basic mechansim

Ks-RT3O
Contents

I .Features --------------------------------------------- Page 2 6.Standard Schematic Diagram ............... 18
I .Specifications .............................................. 2 7.Location of RC. Board parts

I .lnstructions (Extract) ---------------------------------- 3 and Parts List --------------------- 20
1.Location of Main Parts ---------------------------------- 9 8.Exploded View of Enclosure Assembly
2.Removal of Main Parts ------------------------------- 10 and Parts List --------------------- 25
3.Main Adjustment ----------------------- 12 9.Exploded View of Mechansim

4.Block diagram ....... Assembly and Parts List ------ 28
5.Wiring Connections ..... 10.Packing Illustration and Parts List -------- 31

No. 49220

July 1994

Page 2

KS-RT35 U

2

I Instructions (Extraction)

I Features

Detachable Control Panel
AM/FM-Stereo PLL Synthesizer Tuner
20-Station Preset Tuning (FM-15, AM-S)
P.SCAN/Scan/Seek/Manual Tuning
U~Turn Auto-Reverse Mechanism

0....

I Specifications

AUD|O AMPLIFIER SECTION
Maximum Power Output:
B watts per channel (2-chennel)
5 watts per channel (4channol)
Continuous Power Output (RMS):
3 watts per channel into 4 ohms. too to 20,000
Hz at no more than 03% THD (Zchannal)
Load impedance: 4 n (4 - 3 fl Allowable)
Tone control Range
Bass: :10 dB at tODHz
Treble: :10 dB at 10 kHz
Frequency Response: 40 - 20000 Hz
Signal-to-Noise Ratio: 60 dB

RADIO SECTION
Frequency Range
FM: 57.5 - 107.9 MHz (CIJ)
(with channel interval set to 200 kHz)
37.5 - 108.0 MHz (GM)
(with channel interval set to 50 kHz)
87.5 - 108.0 MHz (NU)
530 - 1.710 kHz (C/J)
(with channel interval set to 10 kHz)
522 - 1,620 kHz (CA!)
(with channel interval set to 9 kHz)
531 -1,602 kHz (NU)
[FM Tuner]
Usable Sensitivity: 15:3 dBt (1:6 )IVNSQ)
50 dB Ouiefing Sensitivity: 18.8 dBl
(2,4 pvnsn)
Alternate Channel Selectivity: (400 kHz) 65 dB
Frequency Response: 40 - 15,000 Hz
Stereo Separation : 35 dB
Capture Ratio: 2.0 dB

I Digital Clock Display

When the MODE button is pressed or the tape
is loaded. the MODE button lights red. Each
time the CLK button is pressed while the button
is lit, the time mode, tuner mode or tape mode
(when the tape is loaded) is engaged. When the
radio is operated in the time mode, the display
will switch to frequency. then, alter a short
time, it will return to the time mode. When
listening to a tape. the "TAPE' or time mode is
shown on the display.

Maximum Power Output ol 8W per channel
(2-channel)

Active Hyper Bass Sound Button

Fader Control

Clock Button

Mono Button

[AM Tuner)
Sensitivity: 20 W
Selectivity: 35 dB

CASSETTE DECK SECTION

Wow & Flutter: 011 % (WRMS)

Fast Wind Time: 100 sec. (0-60)

Frequency Response: 50 - 14,000 Hz (:3 dB)
Signal-tn-Noise Ratio: 52 dB

Stereo Separation: 40 dB

GEDERAL
Power Requirement
Operating Voltage: Dc 14:4 v (11 v - 1s v Allowable)
Grounding System: Negative Ground
Dimensions (W x H x D)
Installation Size: 182 x 52 x 152 mm
(7-3/18 x 2-1/16 x 6')
Panel Size: 189x 58 x 15 mm
(7-1 /2" x 2-5116" x 518')
Gross Weight: 1.3 kg (4.0 lbs)

Design and specifications sub/act to change without
notice.

It a kit is necessary lor your car, consult
your telephone directory tor the nearest
car audio speciality shop.

e To adjust the time
When the display is in the fime mode with the
MODE button lit in red, while keeping the CLK
button pressed, press the Hour adjustment
button (v) to adjust the "hours" and press
the Minute adjustment button (A) to adjust
the minutes."

DEEJ

- Hour
- Hora

- Heures

- Minute
Minutos
~ Minutes

(No. 49220)
