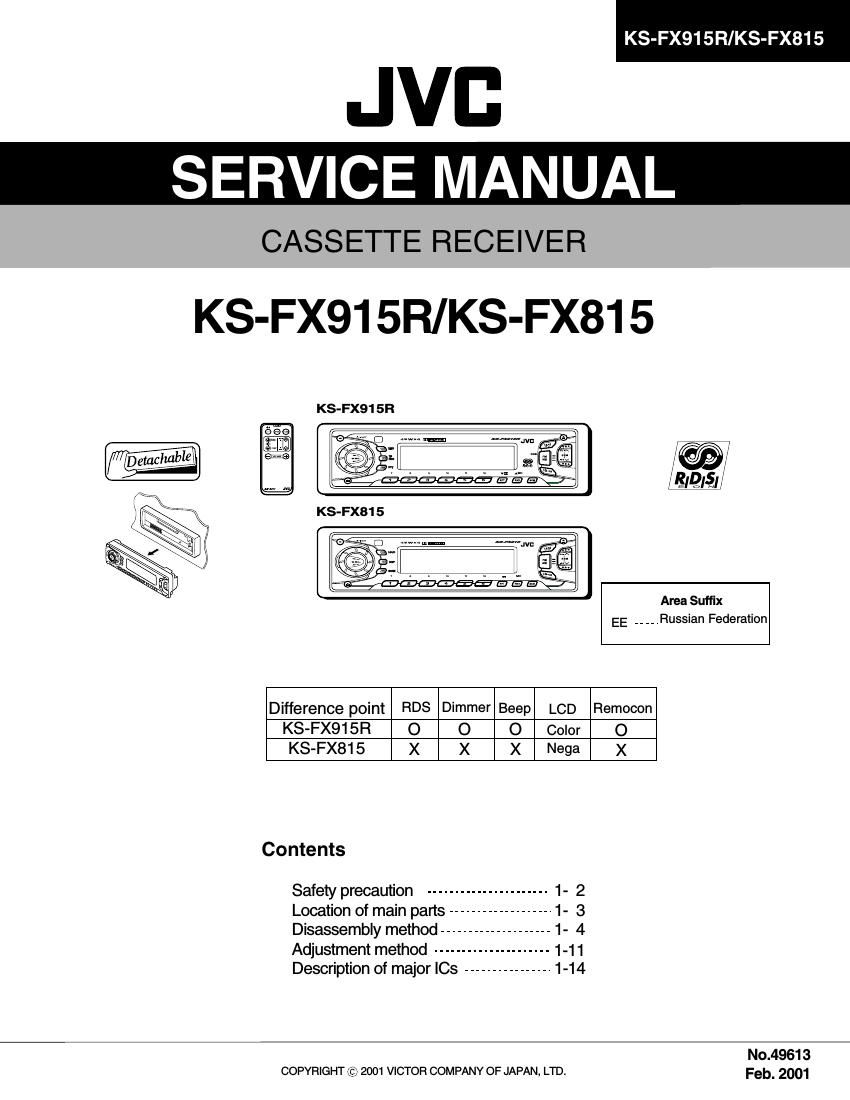

Jvc KSFX 915 Service Manual
This is the 26 pages manual for Jvc KSFX 915 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KSFX 915 Service Manual (Ocr-read)
Page 1
KS-FX915R/KS-FX815 1-3 Location of main parts Control unit Display Control unit Main unit Main board Main board assembly Power IC Connector to controller Tuner pack Antenna jack RCA jack Changer control connector I/O connector Cassette mechanism Main board assembly Connector to controller Cassette mechanism C.motor assembly Mechanism control board assembly Cassette housing HeadHead relay boardMechanism control board assembly Flywheel assemblyReel board Capstan motor assembly
Page 2
KS-FX915R/KS-FX815 1-4 Disassembly method Removing the front chassis (See Fig.1) 1. Remove two screws A and insert a screwdriver to the joints a on the side of the front chassis and two joints b on the right side, then detach the front chassis toward the front side. Removing the heat sink (See Fig.2 ) 1. Remove the three screws B attaching the heat sink on the left side of the body, and remove the heat sink. Removing the bottom cover (See Fig.3 ) 1. 2.Turn the body upside down. Insert a screwdriver to the two joints c and two joints d on both sides of the body and the joint e on the back of the body, then detach the bottom cover from the body. Fig.1 Fig.2 Front chassis b a a b Heat sink B B B Fig. 3Regulator board e d c A A
