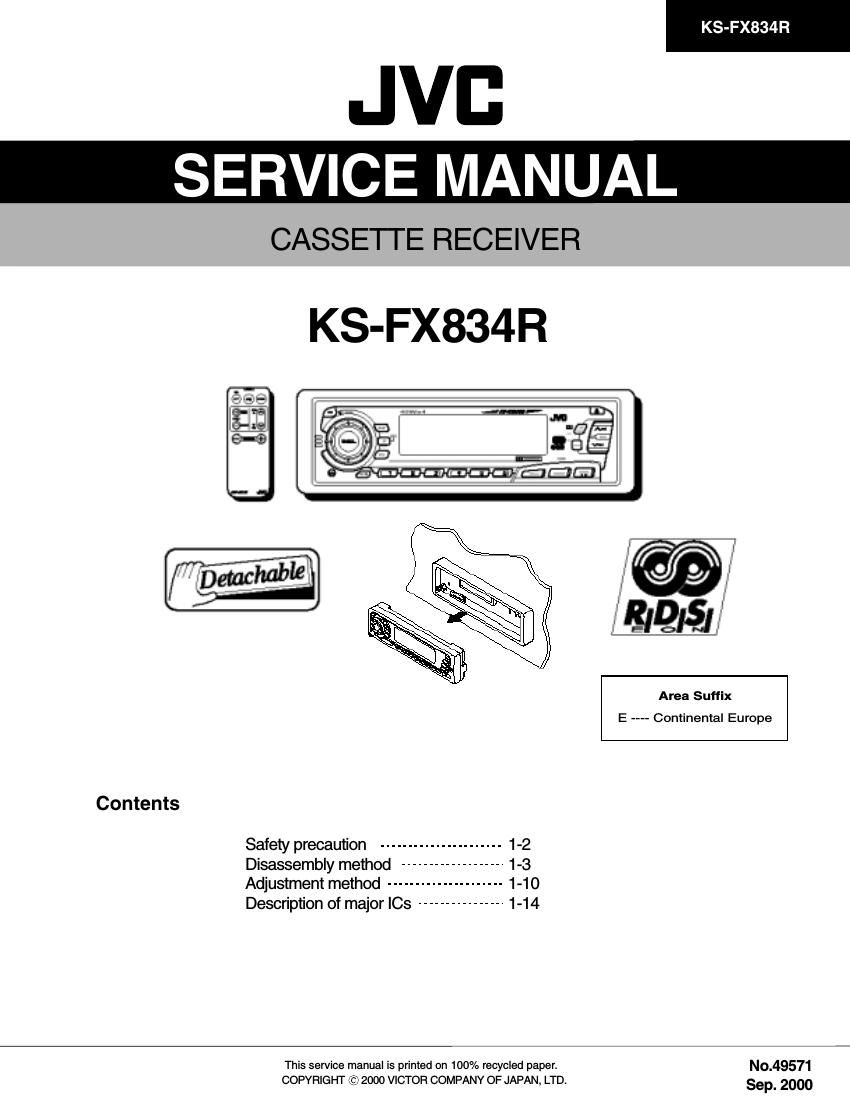

Jvc KSFX 834 R Service Manual
This is the 24 pages manual for Jvc KSFX 834 R Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KSFX 834 R Service Manual (Ocr-read)
Page 1
KS-FX834R 1-2 ! CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Safety precaution
Page 2
KS-FX834R 1-3 Disassembly method Removing the front panel unit (See Fig.1) 1. 2.Remove the two screws A attaching the front chassis. Insert a screwdriver to the two joints a on the side of the front chassis, two joints b on the right side and one joint c from upside, then detach the front chassis toward the front side. 1. Press the release switch and remove the front panel unit in the direction of the arrow. Removing the front chassis (See Fig.2~3) Removing the heat sink (See Fig.4) 1. Remove the three screws B attaching the heat sink on the left side of the body, and remove the heat sink. b a a b c A B B B Heat sink Fig.2Fig.1 Fig. 3 Fig. 4 Front chassis
