Jvc KSFX 772 R Service Manual

This is the 35 pages manual for Jvc KSFX 772 R Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 35

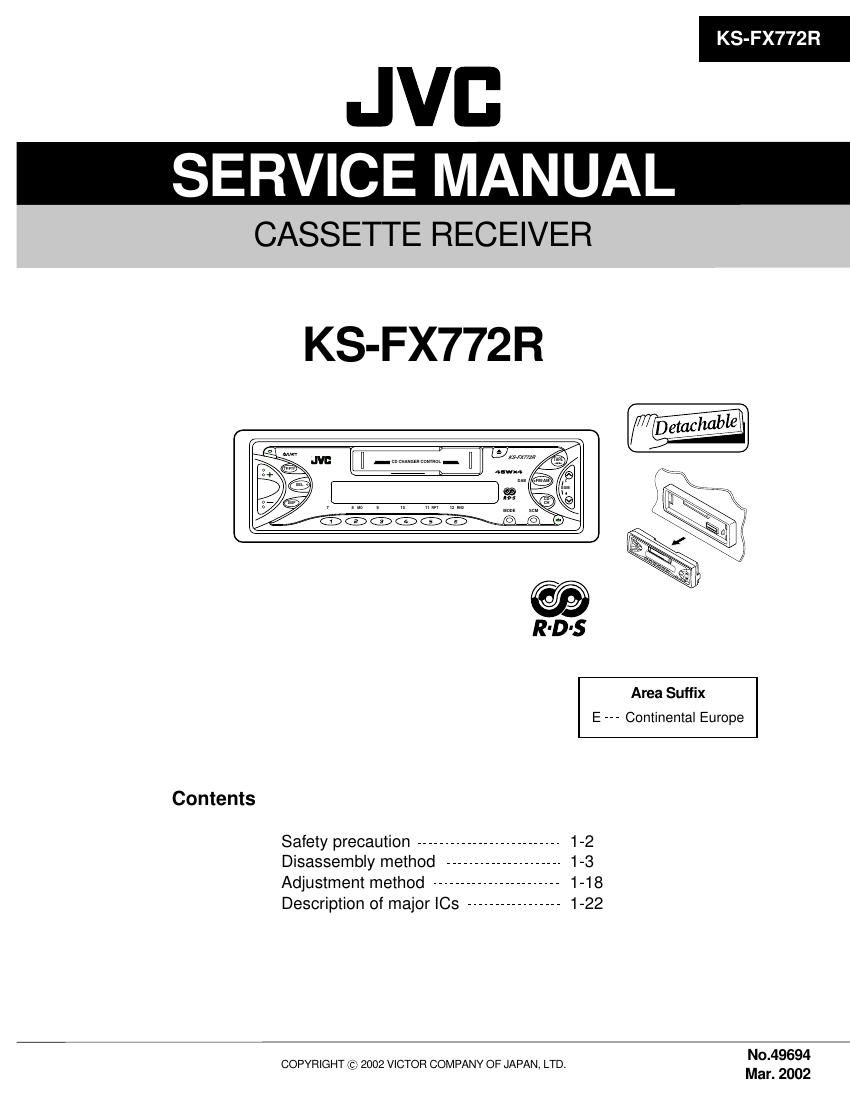

Jvc KSFX 772 R Service Manual

Extracted text from Jvc KSFX 772 R Service Manual (Ocr-read)

Page 1

1-3 KS-FX772R Press the eject button in the lower right part of the front panel. Remove the front panel assembly from the body. 1. Removing the front panel assembly (See Fig.1) Prior to performing the following procedure, remove the front panel assembly. Release the four joints a on both sides of the front chassis assembly and remove the front chassis assembly toward the front. 1. Removing the front chassis assembly (See Fig.2 , 3) Disassembly method

Fig.1 Fig.2 Fig.3 Front panel assembly Eject button Joint a Joint a Front chassis assembly Front chassis assembly Heat sinkJoint a Joint a
