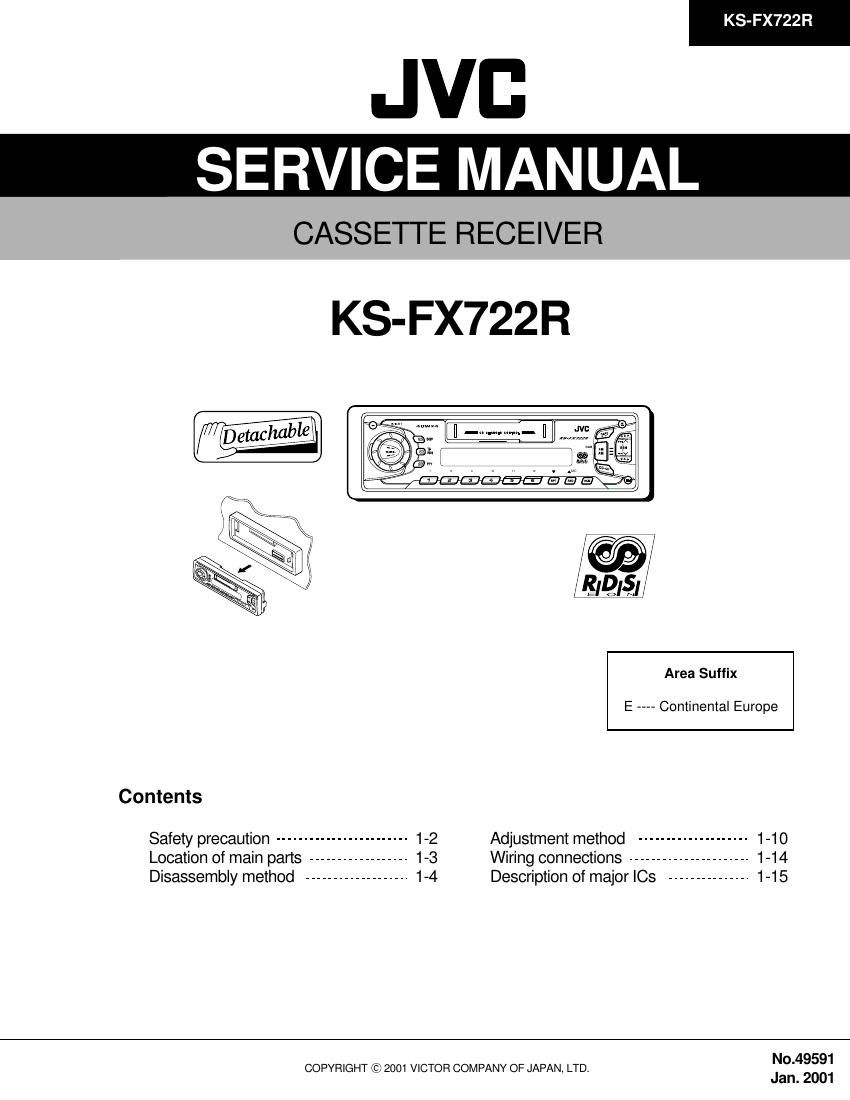

Page 1
JVB
SERVICE MANUAL
CASSE'I'I'E RECEIVER
KS- FX722R
i
Area Suffix
E Continental Europe
Contents
Safety precaution ------------------------ 1-2 Adjustment method -------------------- 1-1 0
Location of main parts ------------- 1-3 Wiring connections ------------------- 1-14
Disassembiy method ------------------- 1-4 Description of major ICs --------------- 1-1 5
No.49591
COPYRIGHT C) 2001 VICTOR COMPANY OFJAPAN, LTD.
Jan. 2001
Page 2
KS-FX722R
Location of main parts
I Control unit
Display
Control unit
I Main unit Changer control .
connector RCA lack
Antenna
l/O connector jack
Main board
Main board assembly
Connector to controller
I Cassette mechanism
Mechanism control board assembly
Clmotor assembly Mechanism control board assembly C t bl
aps an mo or assem y
Head relay board
Cassette housing Flywheel assembly Reel board
1-3
