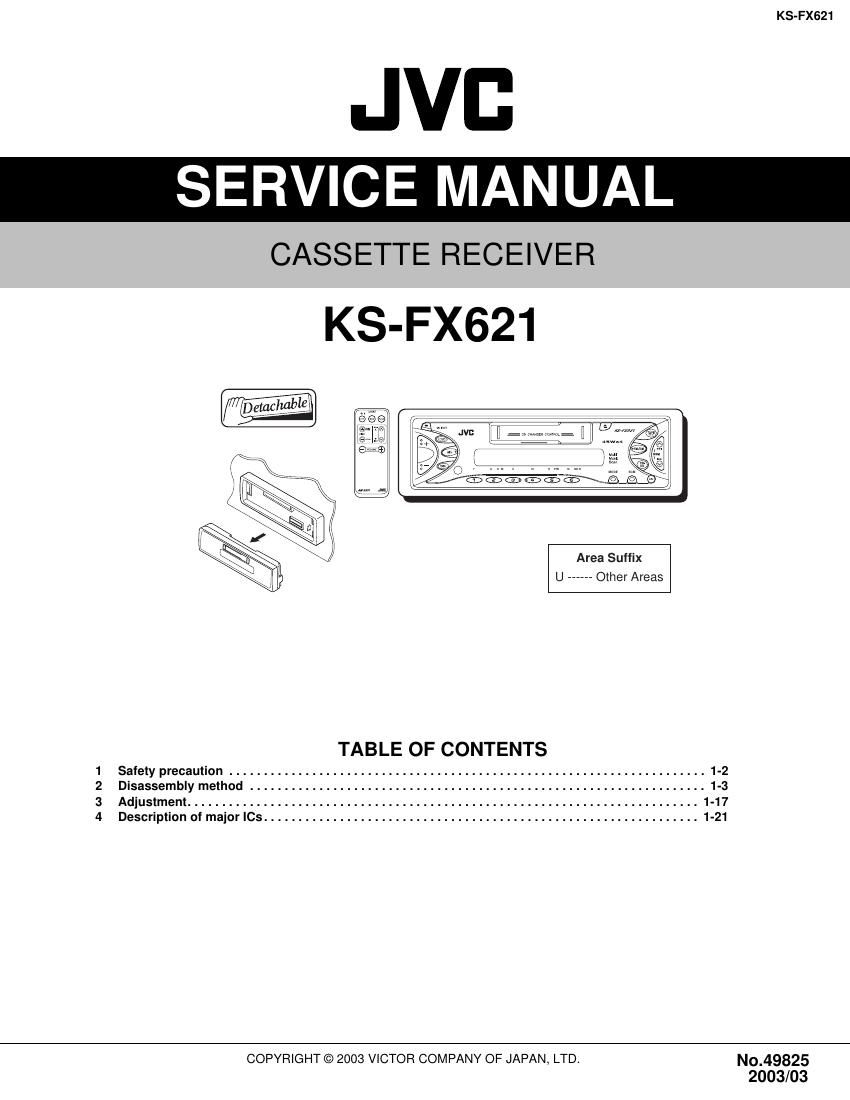

Jvc KSFX 621 Service Manual
This is the 55 pages manual for Jvc KSFX 621 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc KSFX 621 Service Manual (Ocr-read)
Page 1
KS-FX621 1-2 (No.49825) SECTION 1 Safety precaution CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.
Page 2
KS-FX621 (No.49825)1-3 SECTION 2 Disassembly method 2.1 Main body 2.1.1 Removing the front panel assembly (See Fig.1) (1) Press the release button and remove the front panel as- sembly. Fig.1 2.1.2 Removing the bottom cover (See Fig.2) - Prior to performing the following procedure, remove the front panel assembly. (1) Turn the body upside down. (2) Insert a screwdriver under the joints to release the two joints a on the left side, the two joints b on the right side and the joint c on the back of the body, then remove the bottom cover from the body. CAUTION: When releasing the joint c using a screwdriver, do not damage the main board. Fig.2 2.1.3 Removing the front chassis (See Fig.3) - Prior to performing the following procedure, remove the front panel assembly and bottom cover. (1) Remove the screw A on each side of the body. (2) Release the two joints d and the two joints e on the sides, then remove the front chassis toward the front. Fig.3 Front panel assembly Release button Bottom cover Joint b Joint b Joint a Joint c Joint a Joint dJoint e Front chassis Joint d A Joint e
